15
English
Installation Procedure
NOTE
• RLA is based on AHRI 210/240 cooling standard
ʀͱʒϩͱࣄÃʒͱͱθϩʪΧࢋࡠߣߧࢋߨইAࢥߩߡই࣍U9࣎ࢥߢߪࢋߥߧইAࢥ
ߧߨই࣍Ǯ9࣎ࡡĮЇϩʒͱͱθϩʪΧࢋࡠߤߦইAࢥߪߦই࣍U9࣎ࣅ
• Ǥͱϩɇ˝ʪϩͱʪθɇʀʪϑߢߡࢋ
• đɇуЇɇͱиɇɵʪЭͱϩɇ˝ʪɵʪϩиʪʪΧ˵ɇϑʪϑϑߣࢋ
• Symbols
– RLA: Rated Load Ampere (A)
– MOC: Maximum Operating Current (A)
– MCA: Minimum Circuit Ampere (A)
– MOP: Maximum Overcurrent Protective Device (A)
• Voltage range
– Units are suitable for use on electrical systems
where voltage supplied to unit terminal is not
below or above listed range limits.
• Maximum allowable voltage variation between phases
is 2%.
• Wire size & type must comply with the applicable local
and national code.
– Wire size: Based on the value of MCA.
–Wire type:
1-phase: 60245 IEC57(IEC) or H05RN-F(CENELEC)
grade or more

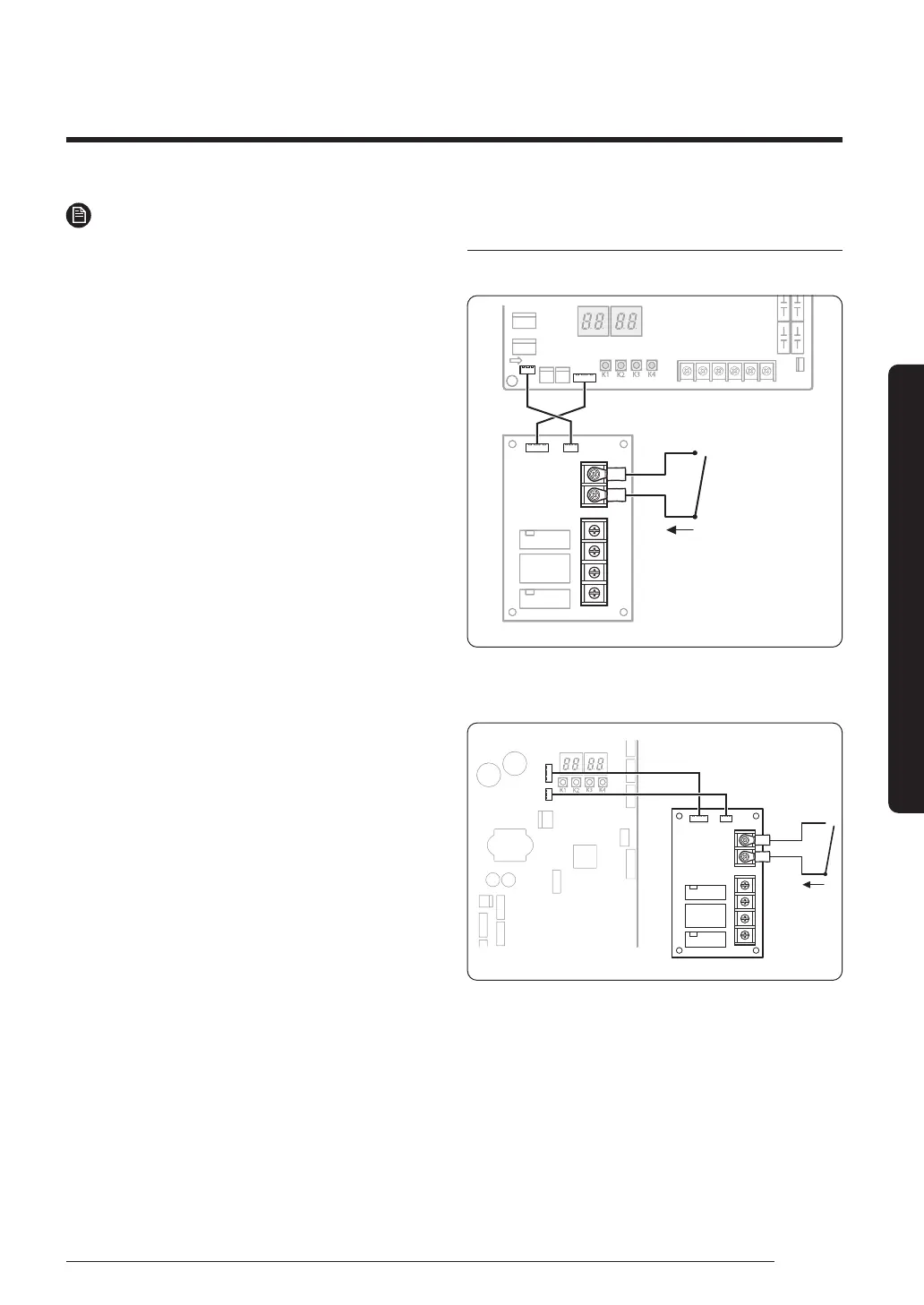

Silence mode controller wiring diagram with
External controller
• AC018BXADCH, AC018/024BXSCCC
2Pin
(RED)
4Pin
(RED)
Non-voltage contact
External controller
• AC024/030/036/042/048BXADCH,
AC030/036BXSCCC, AC030/036BXSCCH
2Pin (RED)
4Pin(RED)
Non-voltage
contact
External controller
ki]_TXXY^[hTWZptjhjG|GvhhluUGGGX\ YWYYTW_TYZGGG㝘㤸G_a[XaX^
