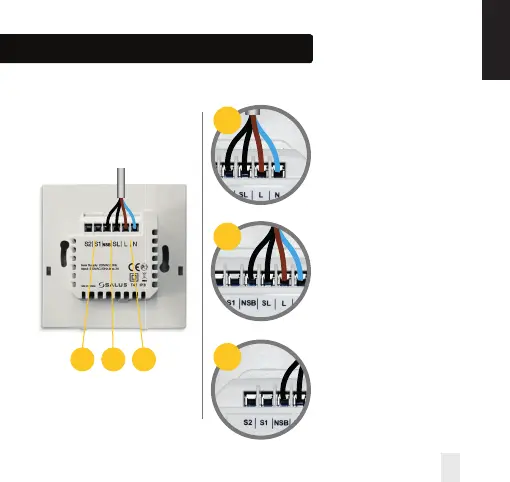

Installation – Terminal Connections
Understanding your terminal connections
Rear of VS35
Power Terminals 230 Vac
Used for supplying power to the
unit and switched output.
NSB (Night Set Back) Connection
Used for a 230V input from other
thermostats. See page 8.
Sensor Terminals S1, S2 (Optional)
Can be used for external AIR
or Floor sensor.
SL N L
Zone 1
Example
- - + +
VS35W
SL N L
Zone 1
Example
- - + +
SL N L
Zone 1
Example
- - + +
SL N L
Zone 1
Example
- - + +
1
3
3 2 1
2
VS35W and VS35B Installer / User Manual 05
INSTALLATION
