GB

COMPONENTS:

Part 4: Aluminum Exhaust Pipe X 1

Part 5: Cable Tie X 1

Part 12 : Aluminum tape X 1

UpperChimney

Bracket

LowerChimney

Bracket

Wall Plug

4*30mm

Screws

COMPONENTS:

Part 7: Lower Chimney Bracket X 1

Part 8: Upper Chimney Bracket X 1

Part 2: 4*30mm Screws X 4

4*30mm

Screws

Wall Plug

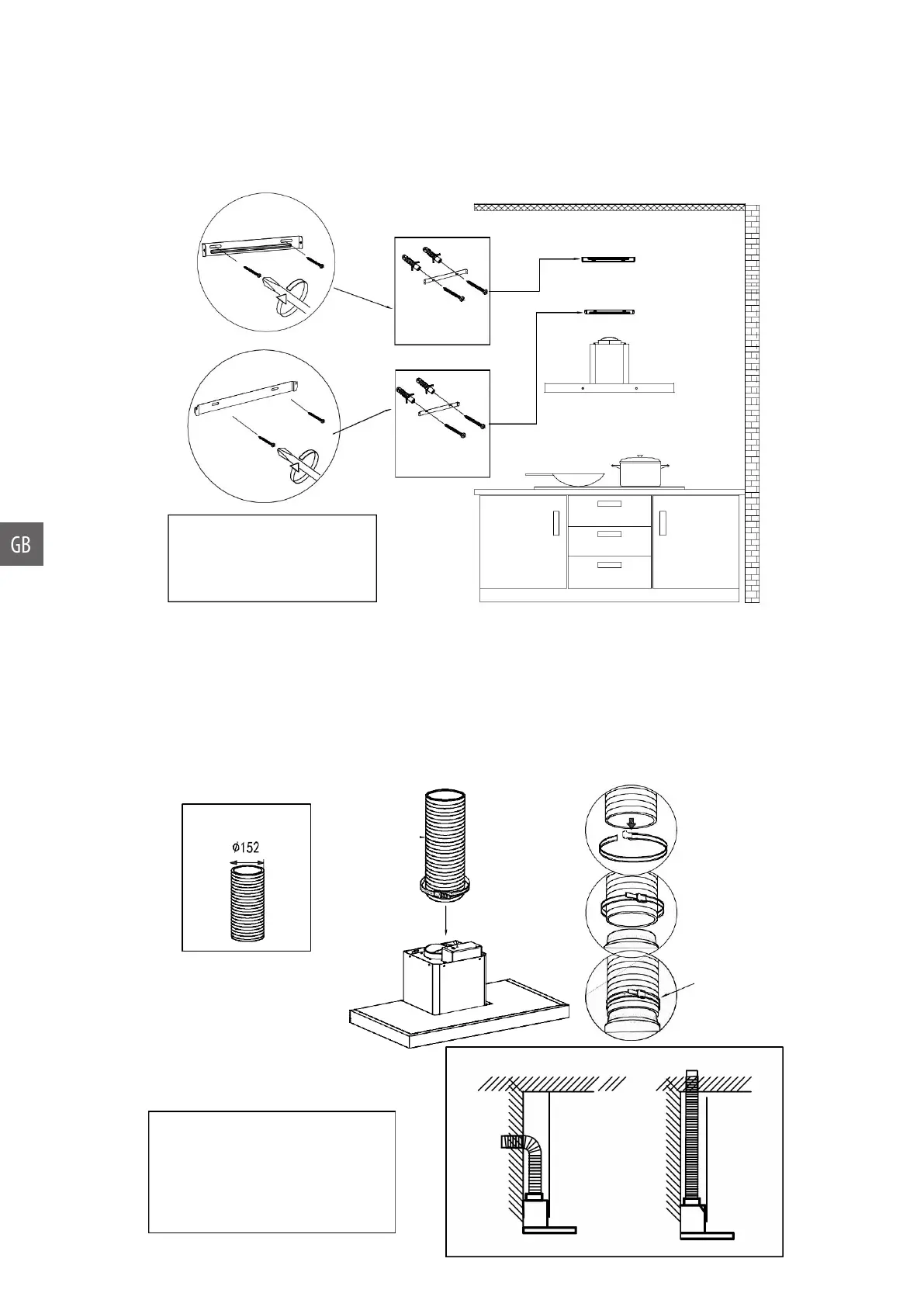

10)Use two 4*30 mm Screws to lock the Upper and Lower Chimney

Brackets to the corresponding positioning holes on the wall.

11)Install the Aluminum Exhaust Pipe into the air outlet and lock it

with a Cable Tie; the other end of the Aluminum Exhaust Pipe will

be pulled upward to outdoor and lock it with a Cable Tie (Note: This

step can be ignored if use as recirculation mode with carbon filter).

Aluminum

Exhaust Pipe

Cable Tie

provided with an

Aluminum tape&a

Cable Tie to fix the

aluminium pipe.

47
