15

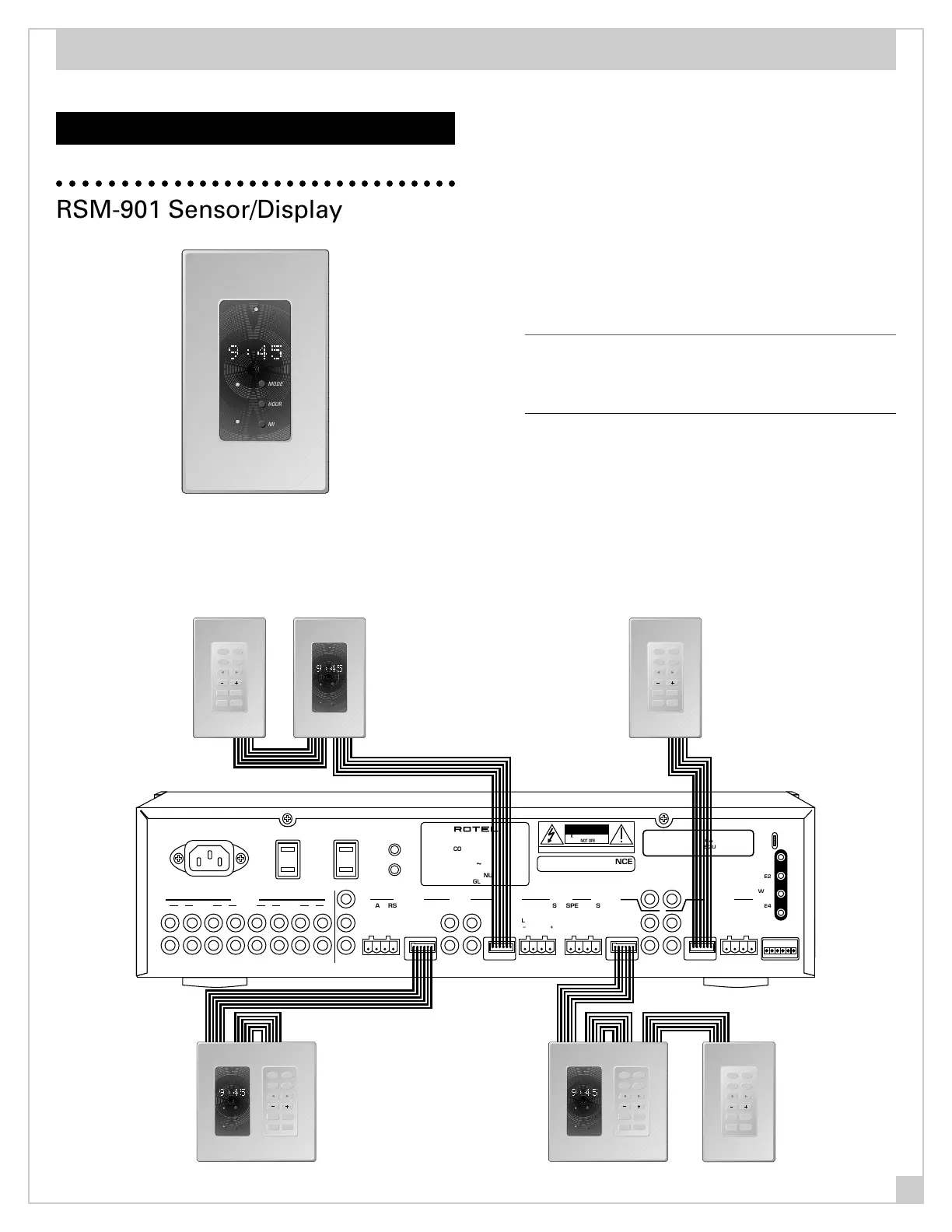

Installation: Zone Control Devices
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
RSM-901 Sensor/Display
MODE
HOUR
MIN
PM
ALARM
RECEIVE
RSM-901 Mounting
The RSM-901 Sensor/Display mounts in a single-width wall box
or in a double width box with the RKP-901 keypad.
PLACEMENT SUGGESTIONS: Exact placement will vary with
each installation but we strongly recommend AGAINST place-
ment where the RSM-901 will be exposed to direct sunlight, pow-
erful fluorescent illumination or the output of a high intensity
spotlight, etc. These light sources contain high levels of infrared
energy themselves and may cause intermittent operation by
saturating the RSM-901.
Note: Avoid infrared “loops” by making sure that an RSM-901
sensor/display is not placed where it might pick up signals from
a source component’s IR repeater or the RMZ-955’s IR front
panel flood emitter.
Lastly, make sure that each RSM-901 is on a relatively uninter-
rupted “line-of-sight” path to all likely locations from which the
hand held RR-952 remote might be used. You’ll find the RSM-901/
RR-952 combination much less susceptible to signal interference
than other IR remote control links, but planning will ensure de-
pendable operation under an even wider variety of conditions.
INSTALLATION: ZONE CONTROL DEVICES
INPUTS
2 3 41
IN OUT IN OUT IN OUT IN OUT
R
L
RC-5N/C
MULTI-ZONE CUSTOM CONTROLLER
MODEL NO. RMZ-955
POWER CONSUMPTION: 430W
AC120V
~ 60HZ
DESIGNED AND MANUFACTURED
IN ENGLAND
SPEAKER IMPEDANCE
4 OHM MINUMUM
TX-FORMAT
123456
T
X
O
U
T
P
U
T
S
ZONE B
DATA
123456
PRE-OUT
DATA
123456
PRE-OUT
SPEAKERSSPEAKERS
SPEAKERSSPEAKERS
ZONE D
DATA
123456
PRE-OUT
DATA
123456
PRE-OUT
ZONE C
ZONE A
WE1
WE2
WE3
WE4
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
~
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK
OF FIRE OR ELECTRICAL SHOCK DO
NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
–+–+
LEFT RIGHT
–+–+
LEFT RIGHT
–+–+
LEFT RIGHT
–+–+
LEFT RIGHT
PAGING
TRIGGER
AUDIO IN
AUDIO OUT
LINK IN
LINK OUT
UNSWITCHED SWITCHED
MODE
HOUR
MIN
PM
ALARM
VOLUME
RECEIVE
TUNER
VIDEO
DISC
OFF
CD
AUX
*
MUTE
OUT IN OUT IN
VOLUME
TUNER
VIDEO
DISC
OFF
CD
AUX
*
MUTE
MODE
HOUR
MIN
PM
ALARM
VOLUME
RECEIVE
TUNER
VIDEO
DISC
OFF
CD
AUX
*
MUTE
VOLUME
TUNER
VIDEO
DISC
OFF
CD
AUX
*
MUTE
MODE
HOUR
MIN
PM
ALARM
RECEIVE
VOLUME
TUNER
VIDEO
DISC
OFF
CD
AUX
*
MUTE
OUT IN OUT IN OUT
IN
OUTOUT
IN
OUT
