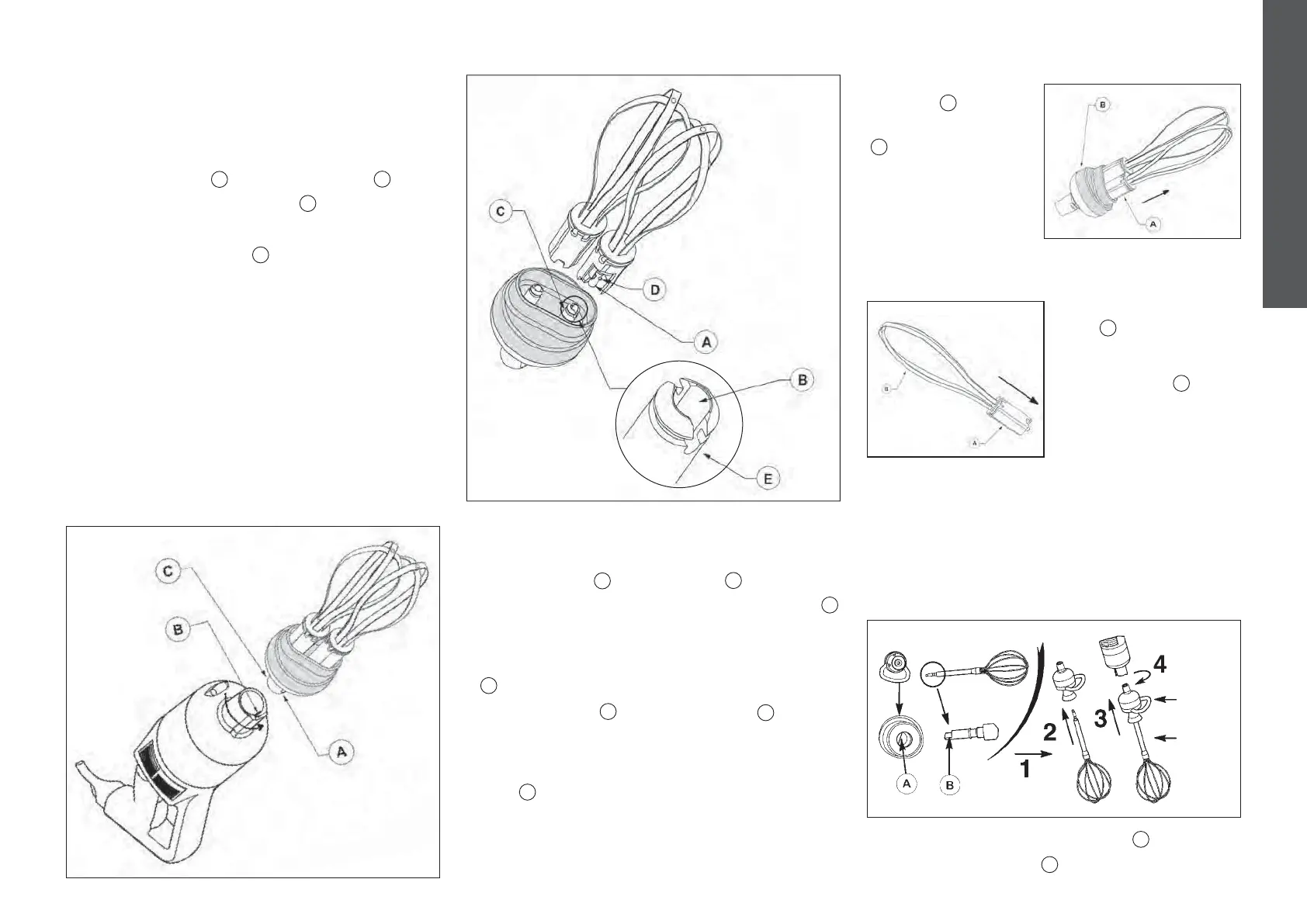

• WHISK FUNCTION

( MP 350 Turbo Combi, MP 450 Turbo Combi,

MP 450 Turbo FW)

Attaching the whisk gearbox to the motor unit

- Unplug the power mixer.

- Align the flat side

of the conical part

of the

whisk gearbox with the catch

on the inside of

the aluminum casing.

- Insert the conical part

of the whisk gearbox

into the aluminum casing.

- Turn the whisk gearbox in the direction of the

arrow (see figure) until it is snugly locked into

place.

Removing the gearbox

- Unplug the power mixer.

- Turn the whisk gearbox in the opposite direction

from that used to attach it.

- When it will go no further, remove the whisk

gearbox from the aluminum casing.

Removing the whisk from the whisk gearbox

While griping the

ejector

in one

hand and the holder

in the other, pull

the ejector in the

direction of the arrow.

Removing the ejector

Hold the whisk by the

wires

in one hand.

With the other hand,

pull the ejector

in the

direction of the arrow

(see figure).

• MIXING TOOL FUNCTION

(MP 450 Turbo FW XL)

ATTACHING THE MIXING TOOL TO THE MIXING

TOOL HOUSING:

Fitting the whisk into the whisk gearbox

Line the flat side of the mixing tool

up with the

flat side of the housing

Mixing tool

housing

Mixing tool

- Grasp the holder in one hand.

With the other hand, take the first whisk and

insert the shaft

into the bore

of the whisk

gearbox drive shaft. Make sure the drive lugs

are properly aligned with the notches.

- As you push the whisk into the holder drive shaft

, rotate it slightly in order to slide the drive lugs

into the notches

of the drive shaft

, thereby

locking the whisk into place inside the shaft.

- To check that the whisk is properly fixed inside the

shaft

, gently pull the metal wires.

- Repeat this procedure with the second whisk. If

you cannot push it in properly, remove it, rotate it

90° and start again.
