FUSE ON
FUSE ON
FUSE ON
BLUE (NEUTRAL)
BROWN (LIVE)
GREEN & YELLOW
(EARTH)
N Supply
DP
L supply
N
L

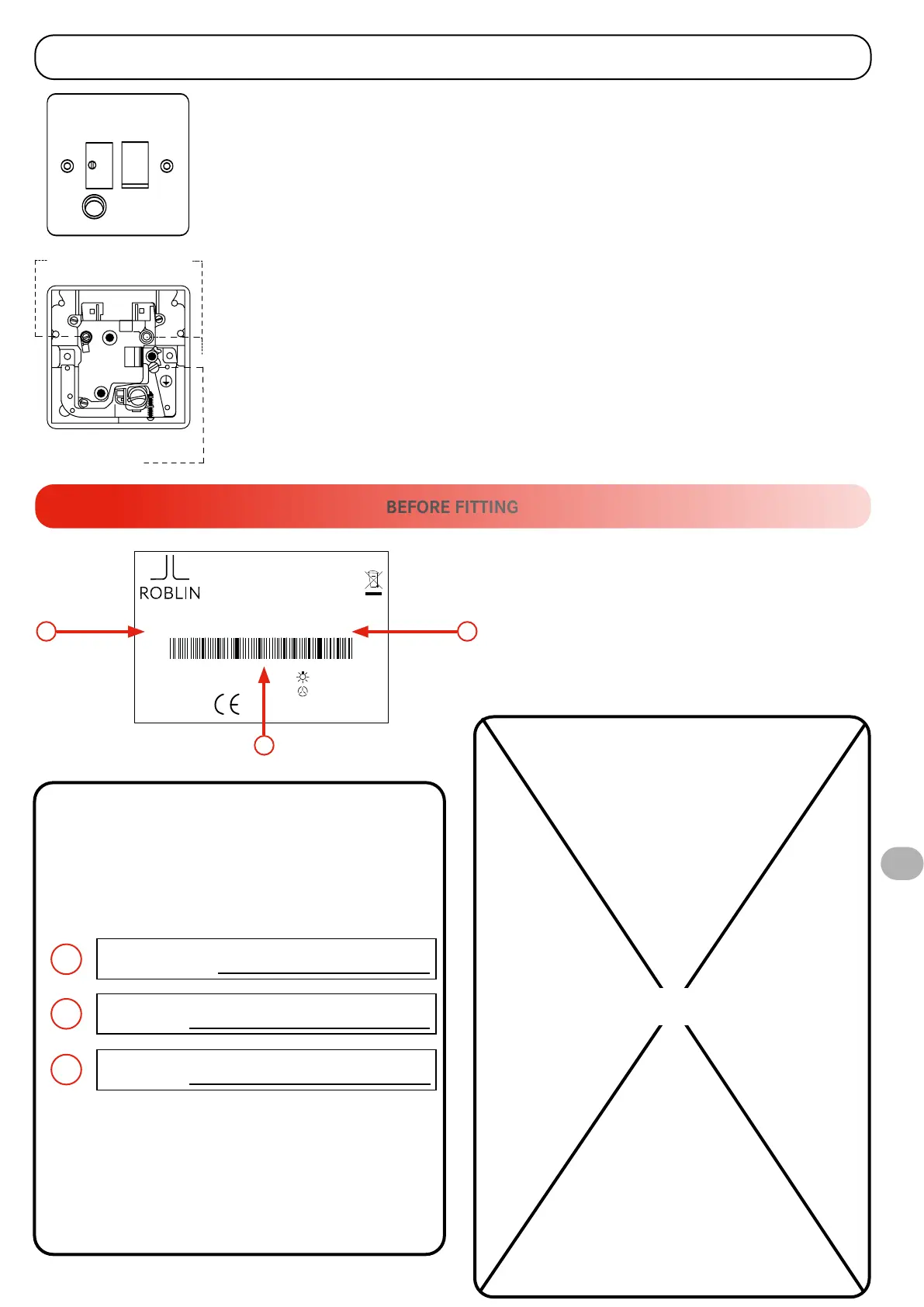

UK ELECTRICAL CONNECTION - ELECTRICAL REQUIREMENTS
Any permanent electrical installation must comply with the lastet I.E.E Regulations and local Electricity Board regulations. For your
own safety this should be undertaken by a qualified electrician e.g. your local Electricity Board, or a contactor who is on the roll of
the National Inspection Council for Electrical Installation Contracting (NICEIC).
Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on the rating inside the cooker
hood.
This appliance is fitted with a 2 core mains cable and must be permanently connected to the electricity supply
via a double-pole switch having 3mm minimum contact gap on each pole. A switched Fuse Connection Unit to BS.1363 Part 4,
fitted with a 3 Amp fuse, is a recommended mains supply connection accessory to ensure compliance with the Safety Requirements
applicable to fixed wiring instructions.
The wires in this mains lead are coloured in accordance with the following code :
Green & yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the ter-
minals in your connection unit, proceed as follows :
The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured red.
BEFORE FITTING
X x X W
X
x X W
XXX-XXX V ~ XX-XX
TOT. X W
XXXXXXXXXXXX
FUN Nr: XXX.XXXX.XXX
XXXXXXX
XXXX X X XX XXXX
MOD
Made in France
InformatIon to be gIven to the servIce dept In case of need.
Check the label affixed to the body of the hood, inside, behind
the filters. The information on this label is necessary for the
After Sales Service assistance contact to provide technical as-
sistance.
A s s i s t a n c e c o n t a c t . Service
Department: 0 4 . 8 8 . 7 8 . 5 9 . 9 3 .
Copy and keep the references below
glue a copy of the label here
PRODUC CODE :
FUN CODE :
SERIAL No :
1
1
2
2
3
3
