18
User’s Guide OctaMic II © RME
11. Digital Outputs
11.1 AES/EBU
The four AES/EBU outputs are provided on the rear of the OctaMic II via a 25 pin D-sub connector
with Tascam pinout (also used by Digidesign). A digital breakout cable will provide 4 male (and 4
female) XLR connectors. Every output is transformer-balanced, ground-free and compatible to all
devices with AES/EBU ports.
Besides the audio data, digital signals in SPDIF or AES/EBU format contain a channel status
coding, which is being used for transmitting further information. The output signal coding of the
OctaMic II has been implemented according to AES3-1992 Amendment 4:
32* / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz according to the current sample rate
Audio use
No Copyright, Copy permitted
Format Professional
Category General, Generation not indicated
2-Channel, No Emphasis
Aux bits audio use, 24 bit
Origin: 8MIC
* This status is set automatically in external synchronization mode as soon as the sample rate is
recognized.
The format is set by DIP switch 6 to Professional or Consumer. If AES PRO is chosen, the output
level is 4V. If CON (Consumer) is chosen, the output signal will have a channel status compatible
to SPDIF, and the output level will be reduced to 2V.

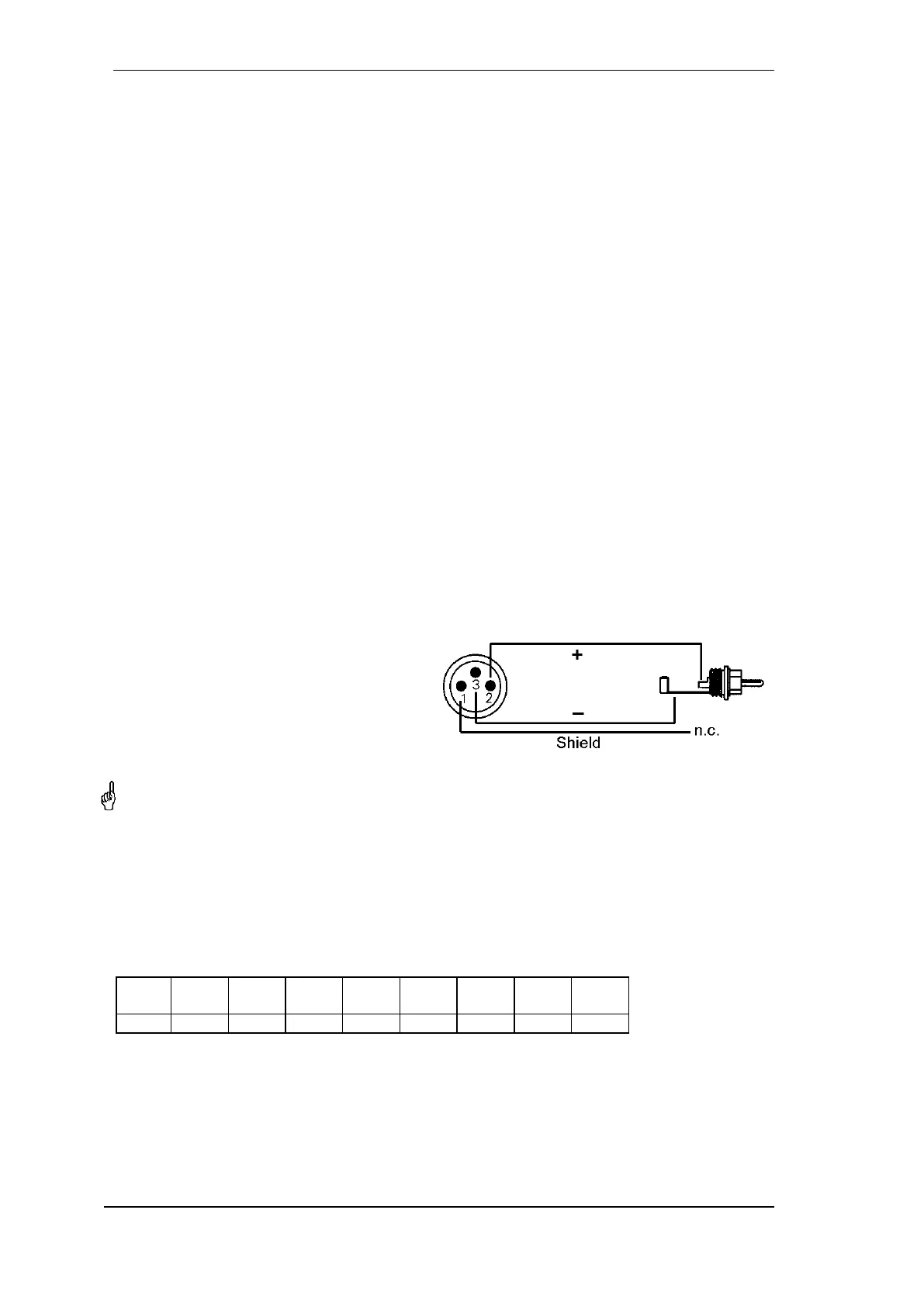

Connecting devices with coaxial SPDIF ports
to the OctaMic II's outputs is accomplished
by simple cable adapters XLR/RCA.. To
achieve this, pins 2 and 3 of an XLR plug are
being connected to the two contacts of a
Phono/RCA plug. The ground shield of the
cable is only connected to pin 1 of the XLR
plug.
Note that most consumer HiFi equipment with phono SPDIF inputs will only accept signals
with Channel Status ‘Consumer’.
The OctaMic II supports Single Wire only, in the range of 32 kHz up to 192 kHz: a total of 8
channels, 2 channels per AES wire. The effective sample frequency equals the clock on the AES
wire. In case a conversion from/to Single, Double and Quad Wire is required, the RME ADI-192
DD, an 8-channel universal sample rate and format converter, is highly recommended.
Pinout of the D-sub connector, Outputs
Signal
Out
1/2+
Out
1/2-
Out
3/4+
Out
3/4-
Out
5/6+
Out
5/6-
Out
7/8+
Out
7/8-
D-Sub
18
6
4
17
15
3
1
14
GND is connected to pins 2, 5, 8, 11, 16, 19, 22, 25. Pin 13 is not connected.
