33AX Kompakt-Schaltschränke, Stahlblech / AX compact enclosures, sheet steel / Corets électriques AX en tôle d’acier

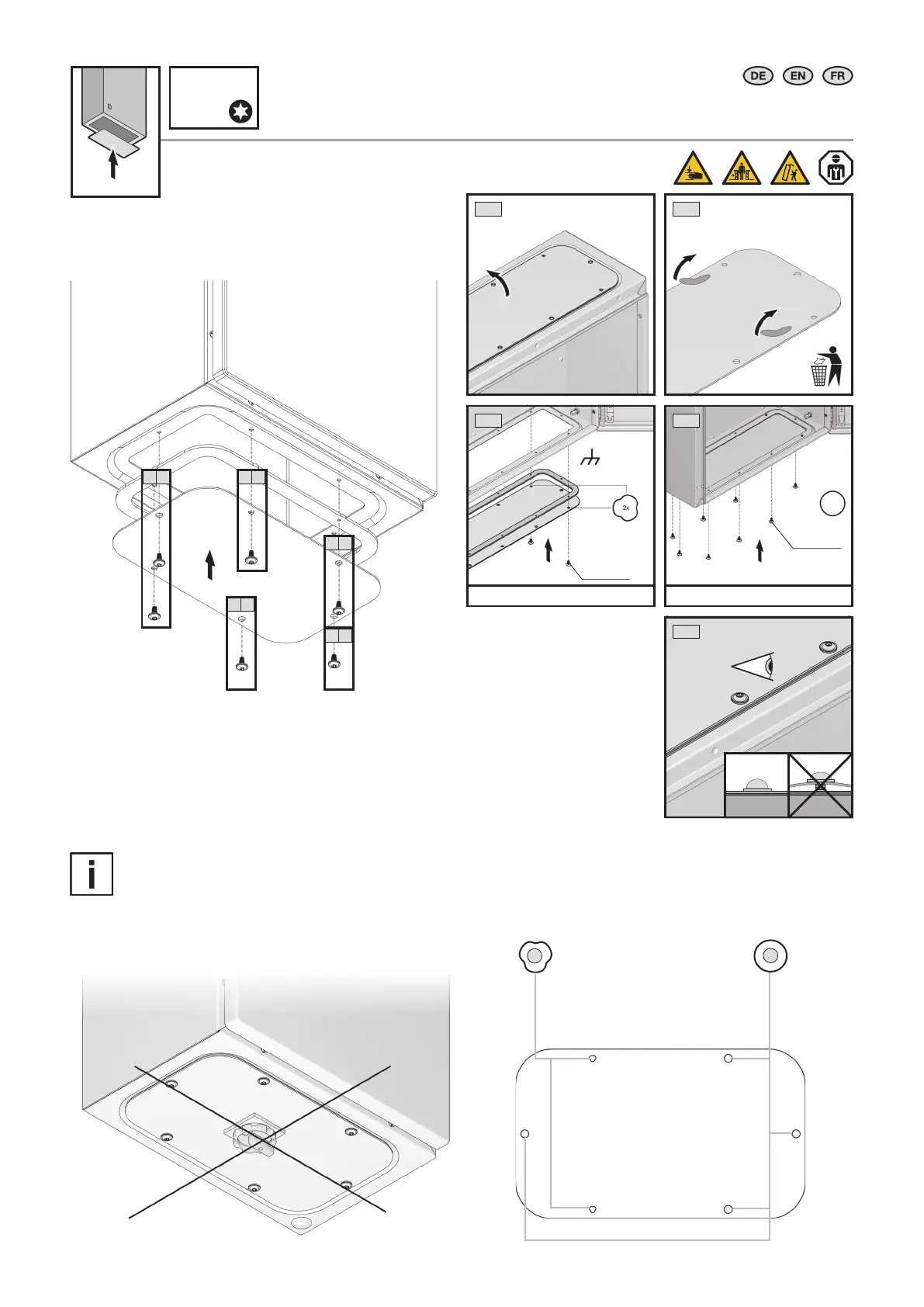

4.7 Montage Flanschplatte
4.7 Mounting the gland plate
4.7 Montage de la plaque passe-câbles
4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
1.1 1.2
4
2
1)
M
A
= 2,5 + 0,5 Nm
5 x 10
3
M
A
= 2,5 + 0,5 Nm
5 x 10
2
33
2
3
4 4
4
4
4
1)
Potenzialausgleich Flanschplatte
Potential equalisation of
gland plate
Équipotentialité de la
plaque passe-câbles
TX25
1
2
Der Einbau von Schaltern und anderen aktiven Komponenten
in die Flanschplatte ist nicht zulässig.
Switches and other active components must not be installed
in the gland plate.
L’intégration de disjoncteurs ou d’autres composants actifs
dans la plaque passe-câbles n’est pas autorisée.
