Rinnai 9 Split AC IM
INDOOR UNIT

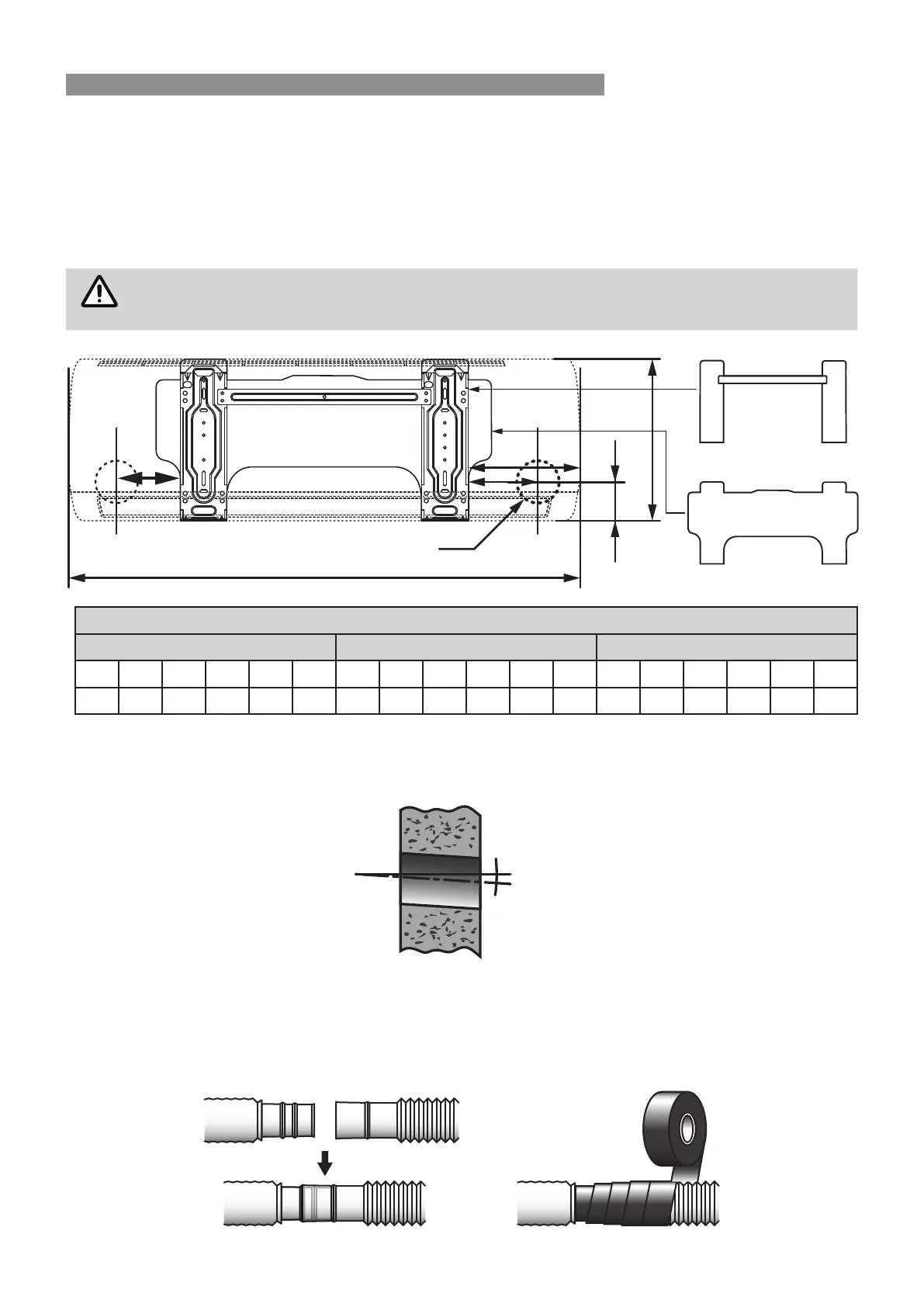

Wall Mounting Plate
1� The wall or structure on which the units are to be mounted must be capable of supporting the weight of the
appliance and the associated pipe-work�
2� Fix the mounting plate on to the wall using, ensuring that it is both level and rmly mounted with the appropriate
xings.
CAUTION
DO NOT install the unit in a place where electrical wiring or conduits are located�
Wall Mounting Plate Positioning Dimensions (mm)
HINCS25B HINCS34B HINCS50B / HINCS70B / HINCS80B
A B C D E F A B C D E F A B C D E F
294 910 225 170 40 150 315 1010 235 180 40 120 340 1186 265 205 81 128
Wall Penetration
Drill a Ø70mm wall penetration through the wall with a 2° to 4° fall to the outside wall�
Drain Pipe
1� Connect the drain pipe to the drain hose outlet of the indoor unit,
2� Bind the joint with PVC insulation tape (not supplied)�
INSIDE
OUTSIDE
2° to 4° fall
C
B
Ø70
A
E
D
(HINCS25B / HINSCS34B)
(HINCS50B / HINSCS70B / HINSCS80B)
F
INSTALLATION
