Rinnai 7 Split AC IM
CONTENTS CHECKLIST
Item and quantity provided
Indoor unit x1 Indoor unit support bracket x1 Brass nut (small) x2 Operation manual x1
Remote controller x1 Outdoor unit x1 Brass nut (large) x2 Installation manual x1
Remote control wall bracket x1 Rubber vibration damper x4 Tape x1 Energy label x1
AAA battery x2 Drain pipe x1 Putty x1

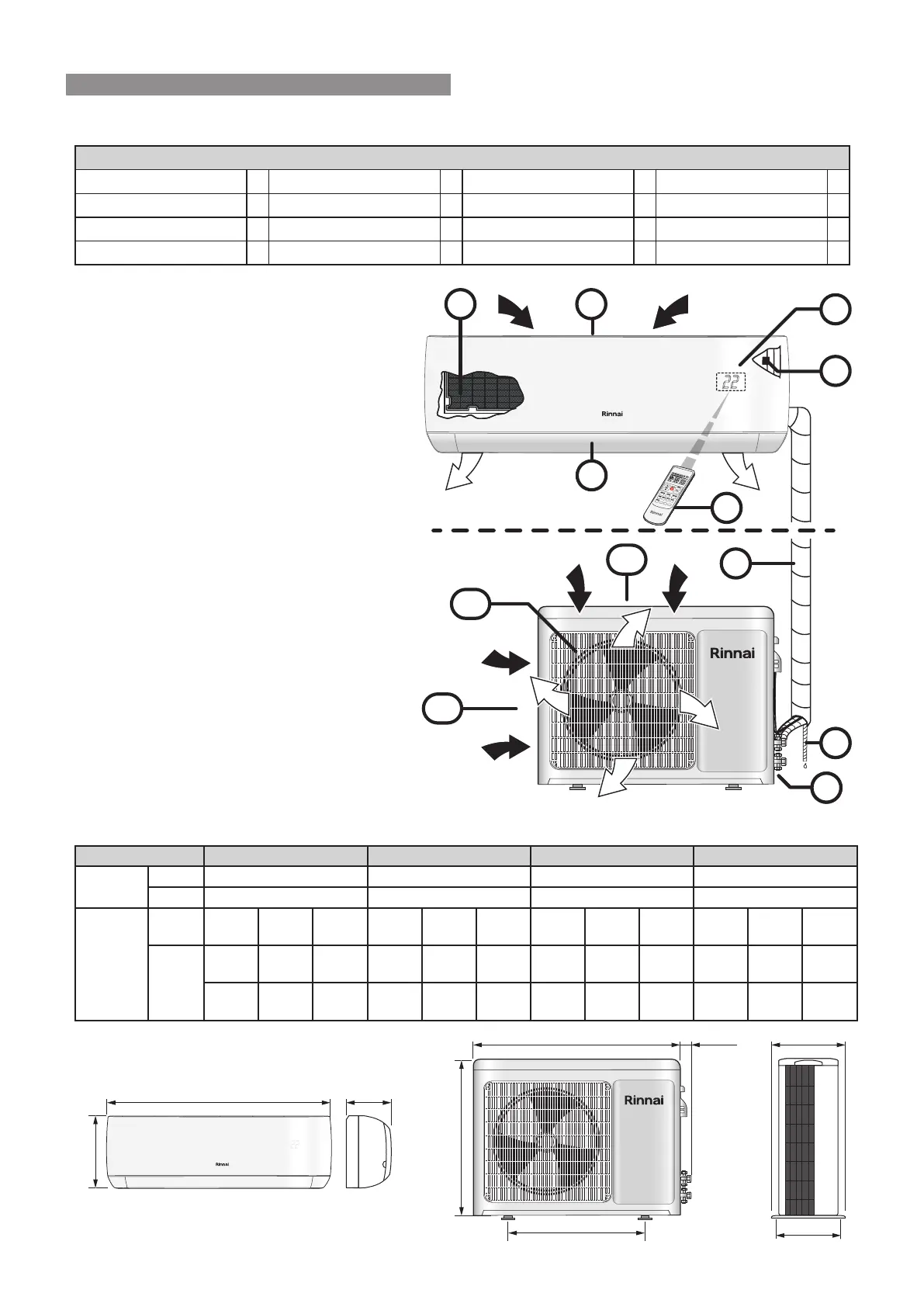

APPLIANCE COMPONENTS
1� Indoor unit air inlet
2� Filter (located behind front access panel)
3� Manual ON/OFF (Auto) override button
(located behind front access panel)
4� Indoor unit air outlet (with louvres and
vanes for setting air ow direction)
5� Remote control
6� Signal receiver window and temperature
display (the display is built into the front
access panel)
7� Refrigerant pipes, electrical cable(s)
(covered with binding tape)
8� Condensate drain hose (covered with
binding tape)
9� Refrigerant entry (for service and installer
use only)
10� Outdoor unit air inlet (on rear & left side of
unit)
11� Outdoor unit air discharge and protective
grille (on front of unit)
WEIGHTS & DIMENSIONS
Model HSNCJ25B HSNCJ35B HSNCJ50B HSNCJ70B
Weight
(kg)
Indoor 9.5 12.0 13.0 14.0
Outdoor 28.0 28.0 45.0 47.0
Dimensions
(mm)
Indoor
A
881
B
194
C
294
A
940
B
224
C
316
A
997
B
227
C
316
A
1132
B
232
C
330
Outdoor
D
800
E
50
F
545
D
800
E
50
F
545
D
900
E
50
F
700
D
900
E
50
F
700
G
353
H
545
I
315
G
353
H
545
I
315
G
388
H
630
I
350
G
388
H
630
I
350
9
8
9
7
INDOOR UNIT
OUTDOOR UNIT
10
10
1
3
2
6
4
8
11
FAN
FOLLOW ME
CLEAN FRESH
5
A B
C
F
GE
H
D
I
INSTALLATION GENERAL
