Rinnai 11 Split AC IM

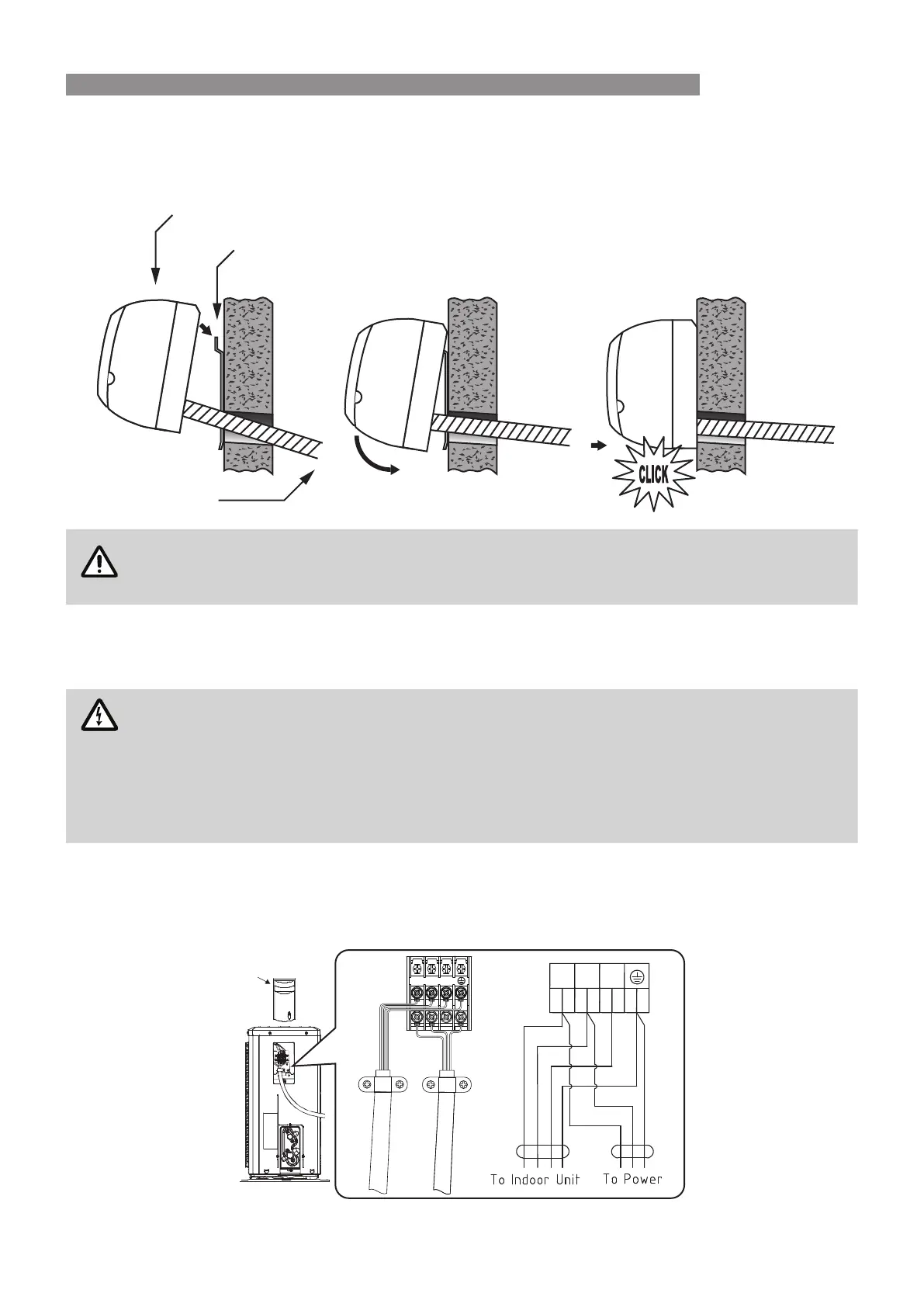

4� Hang the mounting slots of the indoor unit on the upper portion of the mounting plate� Ensure that the hooks
are properly seated on the plate�
5� Push the unit towards to the wall, and hook the unit onto the lower xing hook.
CAUTION
Ensure that there is no leakage from the drain pipe connection and that the drain pipe has a
continuous fall to the outside.
Ensure that all wall penetrations are suciently weatherproofed.
OUTDOOR UNIT
Electrical Connections
WARNING
Must be installed, maintained and removed by authorised persons in accordance with AS/NZS
3000 and to all other relevant local regulations and municipal building codes including OH&S
requirements.
Ensure electric wiring is installed properly. Improper installation may cause malfunction, re, or
electric shock.
The unit must be earthed following local electrical codes.
1� Remove the wiring cover�
2� Secure the electrical cable(s) and power cable onto the control board with the cable clip�
3� Connect the cables as shown on the drawing below�
4� Re-install the wiring cover�
Connections
Indoor Unit
Wall mounting bracket
Wiring
cover
L N S
L N S
Electrical cable(s)
To Mains Power
INSTALLATION
