Rinnai 35 GD OIM

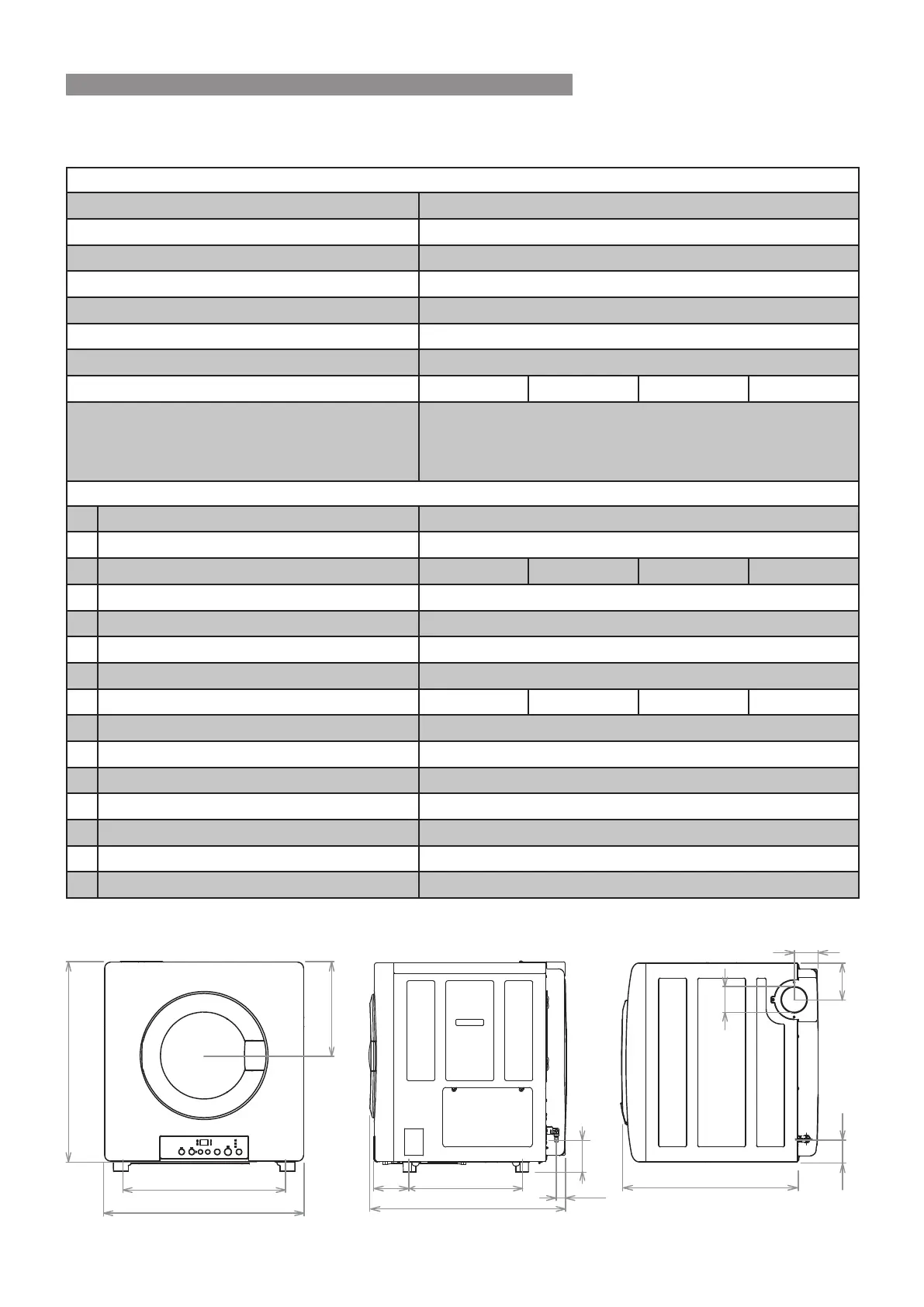

APPLIANCE DETAILS AND DIMENSIONS
All dimensions in mm unless otherwise stated.
Appliance Details
Model Dry-Soft 9 - RDT-90-AU
Weight (appliance body only) 33kg
Standard drying capacity (dry weight) 9kg
Standard drying time 90 Minutes
Power supply AC 230 V (50 Hz)
Power cord length 1.5m
Power consumption 245 W (at standby, 0.5 W)
Gas consumption/hour Natural 16.5 MJ/h Propane 16.1 MJ/h
Safety Devices
Flame failure sensing
Drying drum overheat switch
Electric motor overheat switch
Drum rotation detection
Fan rotation detection
Door switch
Blocked lter warning
Electric fuses
Dimensions
A Width 650
B Depth 641
C Height Feet attached 684 Feet removed 661
D Mounting Feet Centres Width 525
E Mounting Feet Centres Depth 354
F Mounting Feet (inset from front of appliance) 156
G Gas Inlet Connection R 1/2" (15mm)
H Gas Connection Centre Feet attached 98 Feet removed 75
I Gas Connection Centre (from right side of appliance) 75
J Gas Connection (from rear of appliance) 37.5
K Flue Connection 82Ø (Use ONLY Rinnai Flue)
L Flue Connection Centre (from rear of appliance) 78
M Flue Connection Centre (from left side of appliance) 120
N Door Centre (from top of appliance) 305
O Depth of main body 594.5
Key
Drawings are not to scale
C
N
D
F E
J
B
A
H
O
I
K
L
M
