Rinnai 31 GD OIM

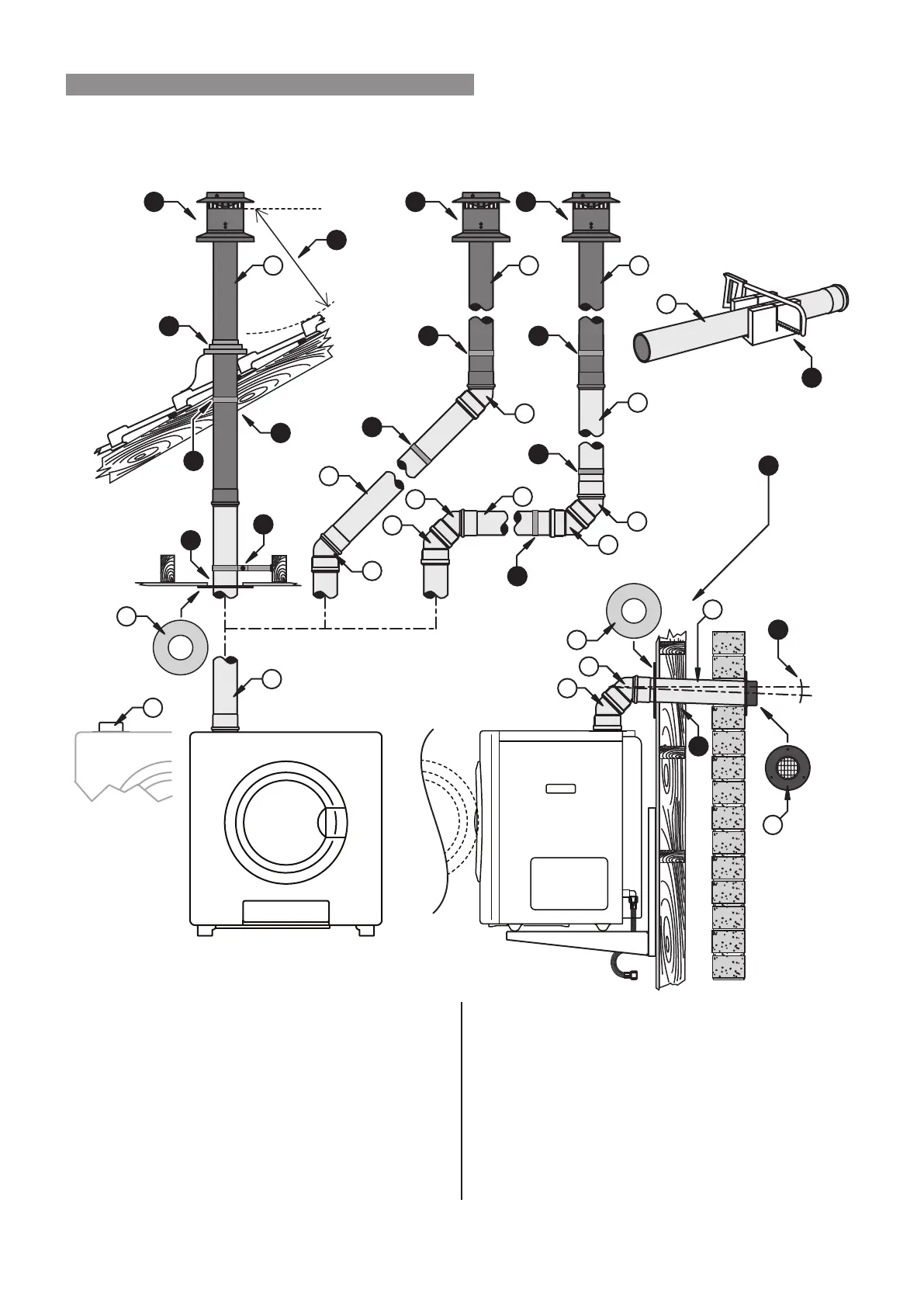

EXHAUST DUCT INSTALLATION OPTIONS AND CLEARANCES
The following are the four most common exhaust duct installation methods. The exhaust duct length can be up to
8 metres long with a maximum of two 90° bends:
i. Direct Vertical.
ii. Oset Vertical.
iii. Extended Vertical.
iv. Direct or Extended Horizontal.
a. Min clearance 500mm to nearest part of roof.
b. Min clearance 20mm to combustible materials.
c. Decktite or other non lead based ashing, to be
provided by installer.
d. The weight of the exhaust duct MUST BE
supported by the stand-o supplied and NOT by
the dryer.
e. A constant 2° fall to the terminal MUST BE
maintained on horizontal installations.
f. ‘DSFPIPE1000’ (B) can be cut to length as is
required, provided that a clean square edge is
maintained and that a min penetration of 50mm
remains to join other exhaust duct components.
C C C
B
D
D
B
A
B
c
a
b
b
i ii iii
B
D
D
E
E
F
d
d
d d
d
d
iv
d
b
g
B
D
D
f
D
D
B
VENTILATION, EXHAUST & CLEARANCES
