OPERATION
FIG. 8
FIG. 9
FIG. 7

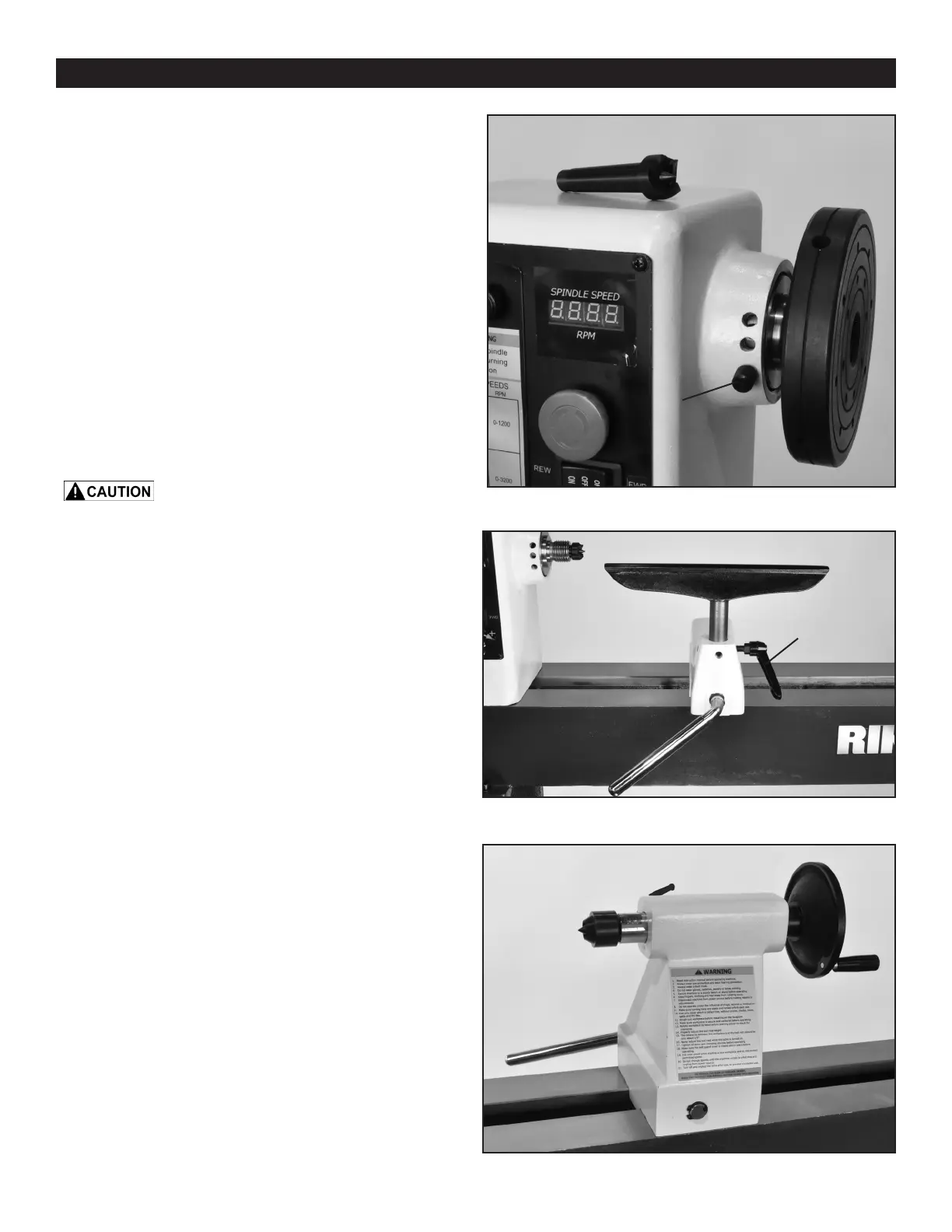

10. HEADSTOCK INDEXING HOLES: (FIG. 7, A) There
are three postioning holes located in the headstock casting,
behind the spindle. Insert the Indexing Pin (B) (#B10) into
one of these holes, and then make sure that it locates into
one of the indexing holes that are in the spindle.
There are 12 holes in the spindle, each 30° apart. The
three holes in the headstock casting that accept the in-
dexing pin are 20° apart. The combination of these holes
will allow you to mark your workpiece for evenly spaced
features up to 36 positions. See page 14.
Never start the lathe with the index pin en-
gaged in the spindle, or damage to the machine will result.
11. TOOL REST BODY LOCK HANDLE: (FIG. 8, A) This
cam action lever handle locks the tool rest body down in
position on the lathe bed. Unlock handle to position the tool
rest in any location along the lathe bed. Tighten the handle
when the tool rest is properly located for safe turning of the
workpiece.
12. TOOL REST LOCK HANDLE: (B) Locks the tool rest
in position for supporting your tools during turning. Unlock
the handle to adjust the tool rest at a specic angle, or
height. Tighten handle when properly positioned.
13. TAILSTOCK LOCK HANDLE: (FIG. 9, C) Locks the
tailstock in position along the length of the lathe bed.
Unlock handle to position the tool rest to move the tail-
stock. Tighten handle when properly positioned.
14. TAILSTOCK QUILL LOCK HANDLE: (D) Secures
the tailstock quill in position. Unlock the handle to move
the quill, with live center, forward or backwards. Tighten the
locking handle when the quill is nally positioned.
15. TAILSTOCK QUILL HANDWHEEL: (E) The hand-
wheel advances or retracts the quill. The tailstock quill lock
handle (D) must be loose to move the quill.
16. TAILSTOCK LIVE CENTER: (F) Used for turning be-
tween centers. The Live Center (#A11) and the Quill (#A12)
have MT-2 tapers. Remove the live center by retracting the
quill until the center loosens, or use the knockout bar.
TOOL REST CONTROLS
TAILSTOCK CONTROLS
9. HEADSTOCK SPUR CENTER: (FIG. 4 & 7, I) The Spur
Center (#B1) is used for turning between centers. It ts into
the spindle. Both spindle and the spur center have match-
ing MT-2 tapers. The spur center can be removed from the
spindle with the Kockout Bar (#B30). Insert the knockout
bar through the opposite, outboard left end of the spindle,
and then hit the spur center’s back end to knock it out of
the spindle. NOTE: Be careful and hold the spur center dur-
ing this process so it does not y out onto the oor.
