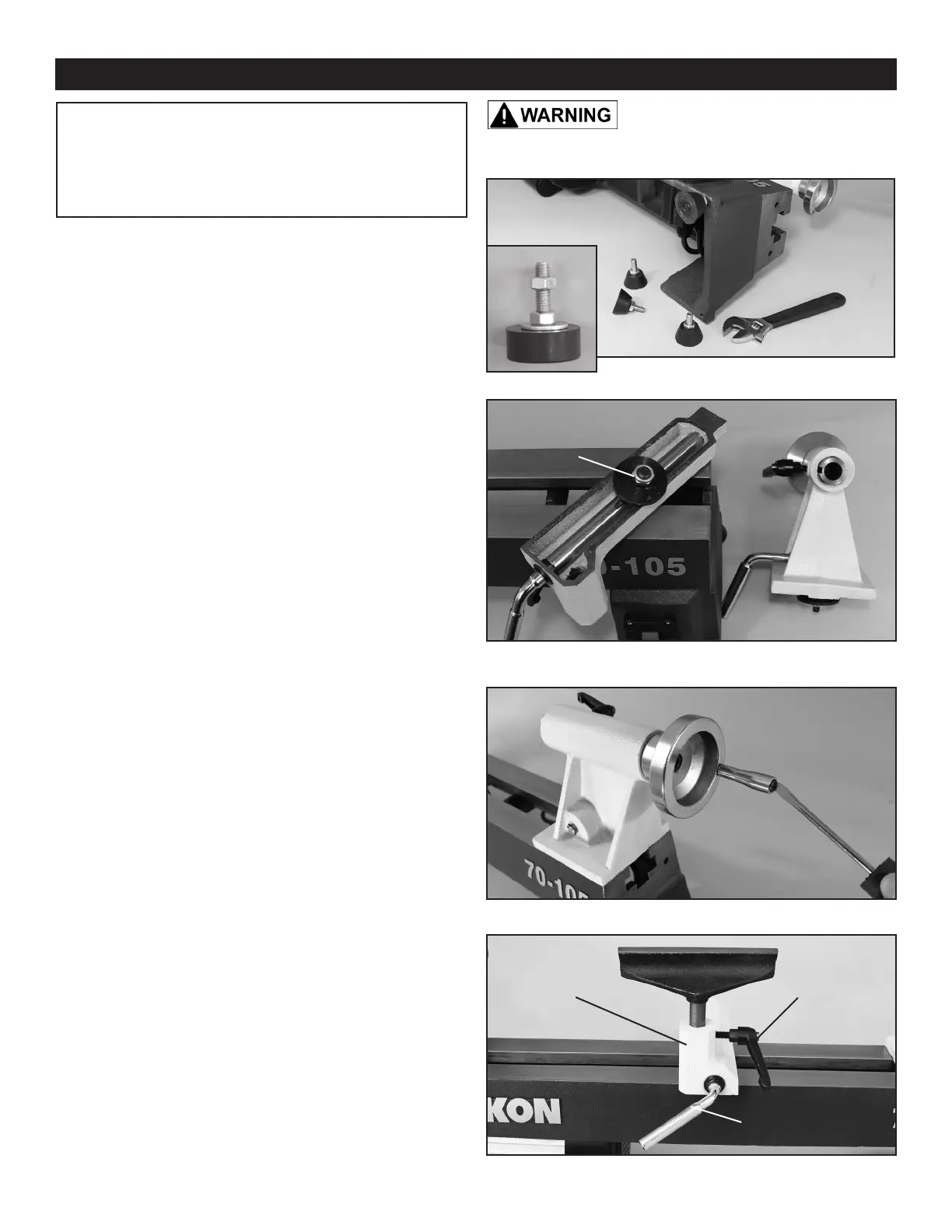

ASSEMBLY
INSTALL THE TOOL REST BASE
1. Remove the tailstock assembly from the
lathe bed. Release the locking lever handle (A)
at the rear of the tailstock, and slide the tailstock
assembly off of the end of the lathe bed. FIG. 2
2. Slide the tool rest base onto the lathe bed.
NOTE: To adjust the clamping action of the tool
rest base, or tailstock, adjust the locking nut (B) -
turn it clockwise to tighten, and counterclockwise
to loosen. This nut adjustment can be done when
the tool rest base or tailstock are on, or off of the
lathe bed. The locking lever must be loose when
the nut is adjusted. Then, with the tool rest base
or tailstock installed on the bed, test the clamping
action after nut adjustments are made.
3. Re-install the tailstock onto the lathe bed.
FIG. 1
FIG. 2
FIG. 3
INSTALL THE TOOL REST
1. Loosen the locking lever on the side of the tool
rest base, and insert tool rest post into the base.
2. Adjust the tool rest’s height up or down to your
desired position, and then secure The tool rest
base in place with is locking lever. FIG. 4.
FIG. 4
NOTE: Pending packaging changes at the factory,
some lathe parts may already be pre-assembled
on the machine. The assembly steps listed should
none-the-less be reviewed for information on the
lathe parts and their adjustments.
B
A
C
INSTALL THE RUBBER FEET
1. Screw the rubber feet onto the four corners
of lathe bed casting. The threaded post’s upper
hex nut will secure and adjust the feet height, if
necessary, if the bench is not level. FIG. 1.
INSTALL THE TAILSTOCK HANDLE
1. With a slotted screwdriver (not supplied)
attach the tailstock handle (C) to the hand wheel
with the screw provided. FIG. 3.
THE MACHINE MUST NOT BE
PLUGGED IN AND THE POWER SWITCH MUST BE IN THE
OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.
Tool Rest
Locking
Lever
Tool
Rest
Base
Tool Rest Base
Locking Lever
Tool Rest Base Tailstock
