14
ADJUSTMENTS
FIG. 16
For turning plates, bowls and small turnings,
a chuck or faceplates can be used (available
separately). The work piece should be “rough cut”
as close as possible to the nished round shape
before mounting. FIG. 17.
FIG. 17
DIAMETER
OF WORK
ROUGHING
RPM
GENERAL
CUTTING
RPM
FINISHING
RPM
Under 2”
2 to 4”
4 to 6”
6 to 8”
8 to 10”
10 to 12”
1520
750
510
255
300
380
3200
1600
1080
540
650
3200
2480
1650
1240
1000
830
810
Typical Lathe Turning Operations

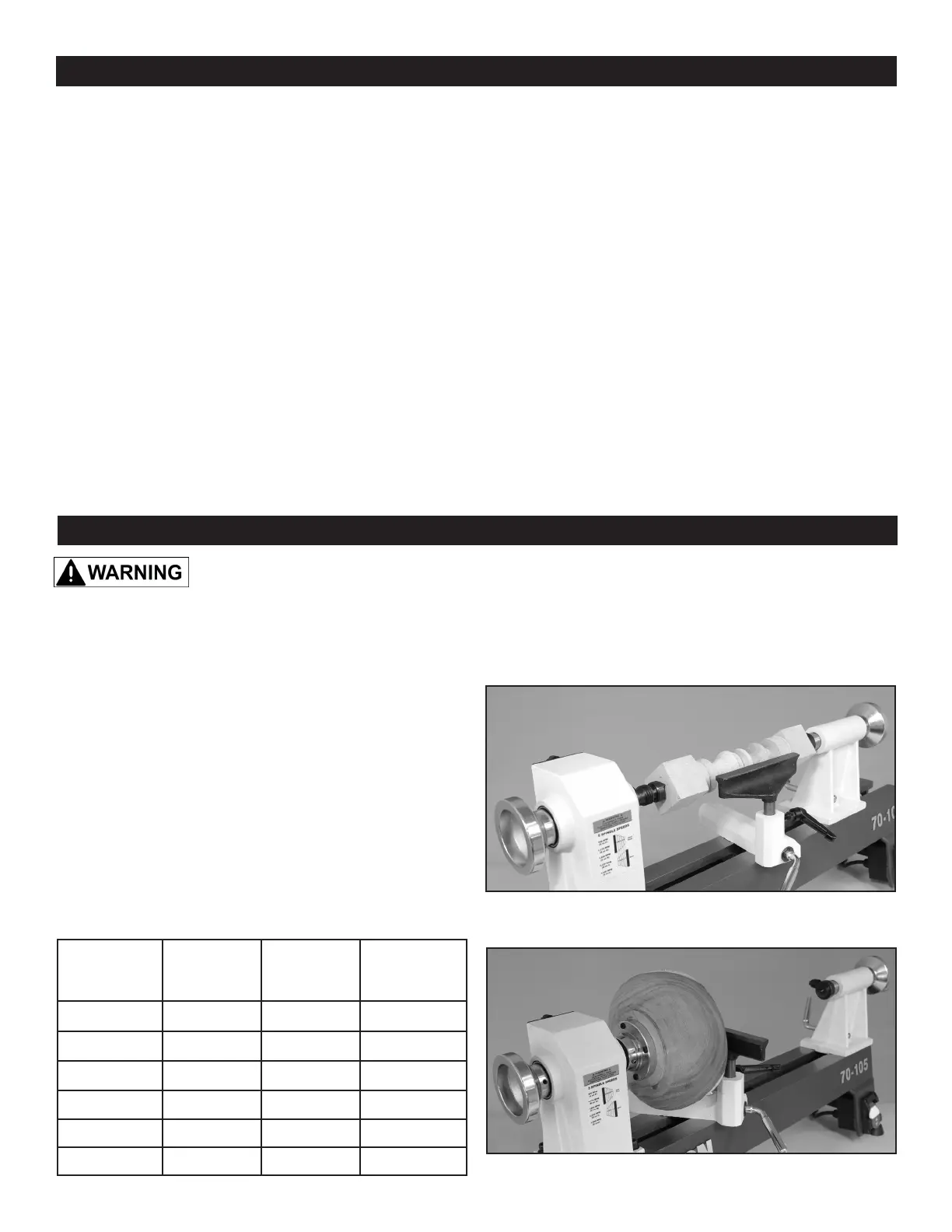

FIG. 16 shows the lathe set up for a typical spindle
turning operation. Note: Position the tool rest as
close to the work piece as possible. It should be
1/8” above the center line of the work piece.
4. Carefully knock out the spindle towards the
tailstock. Use a block of wood or big dowel
against the spindle end to prevent any damage
when it is hit with a mallet/hammer. The spindle
pulley, now loose, will slide along the spindle.
5. Carefully pull out, or knock out the old bear-
ings. Use a mallet/hammer with a block of wood
against the bearings to prevent any damage to the
machine. Do not remove the large retaining C-Clips
from the inside of the castings. These clips properly
position the bearings when in place.
6. Install the two new Bearings in the front and in
the rear holes of the headstock.
7. Re-assemble the lathe parts by reversing the
procedure previously described.
Changing the Bearings
If the bearings ever need to be changed, the whole
spindle shaft needs to be shifted right, out of the
headstock, towards the tailstock. Then the bearings
can be removed from the headstock casting. With
the new bearings in place, the spindle shaft assem-
bly can be re-installed, so turning can be resumed.
1. Unplug the lathe from the power source.
2. Remove any accessories from the spindle -
spur center, pen mandrel, chuck, faceplate, etc..
3. Follow the steps 2-7 described in CHANGING
THE DRIVE BELT on page 13, to remove the hand
wheel and loosen the spindle pulley from the
spindle. The drive belt will be loose on the spindle.
It is strongly recommended that you read books, trade magazines, or get formal
training to maximize the potential of using your lathe, while also minimizing the risks. Before turning
on the machine, review the safety precautions on pages 3 to 6. Make sure that you fully understand
the features, adjustments and capabilities of the machine that are outlined throughout this manual.
OPERATION
