8

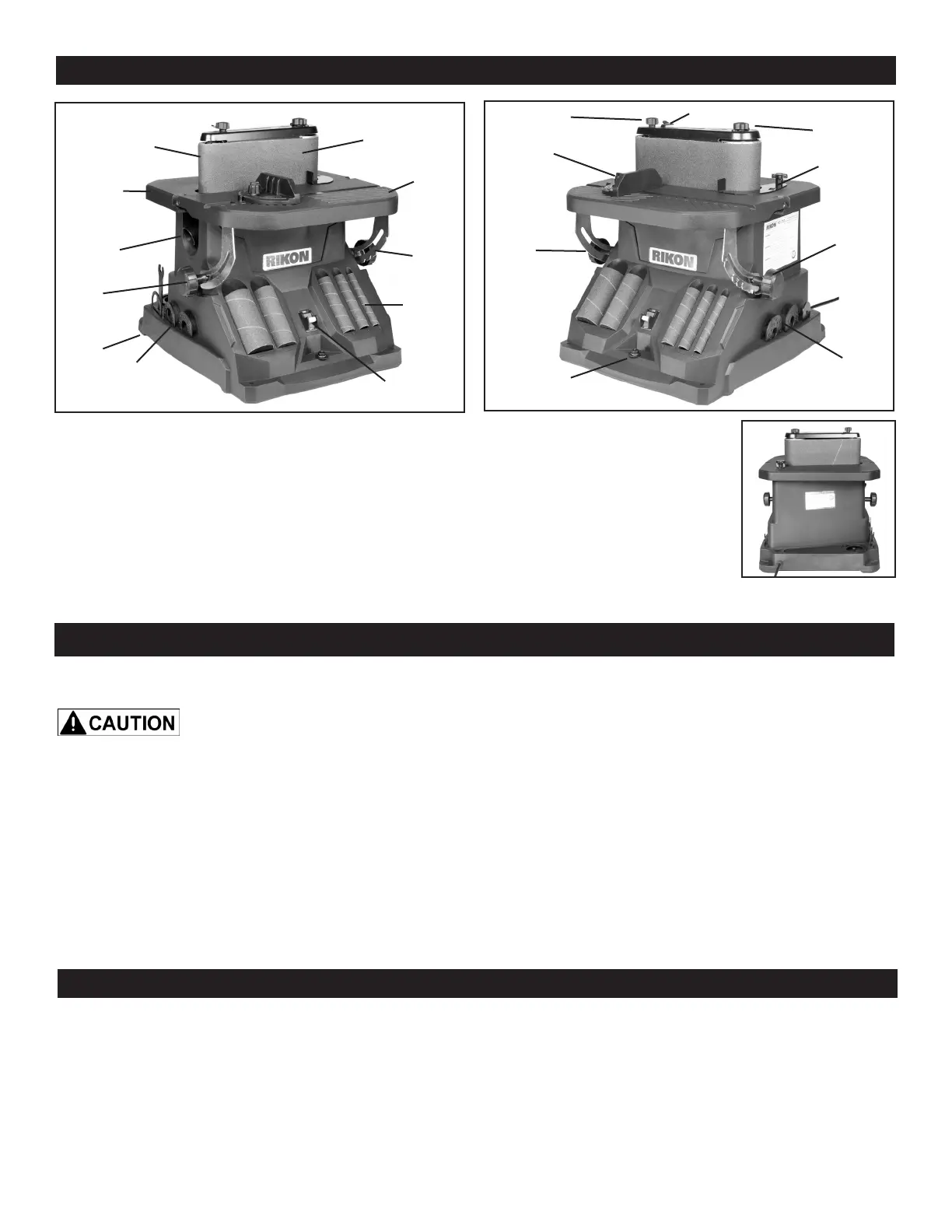

GETTING TO KNOW YOUR MACHINE
F
H
G
D
I
INSTALLATION
MOVING & INSTALLING THE SANDER
When moving the sander, lift the
machine with your hands positioned under the
base. DO NOT carry or move it using the attached
work table.
1. The machine should be firmly bolted to a stand or
solid, level workbench to avoid any movement of the
machine during use. The sander’s base has holes for
this purpose (mounting hardware is not included).
For portability and secure clamping of the sander
to a workbench, the machine can be first permanently
bolted to a piece of plywood. Then the sander can be
positioned on your workbench, or other solid surface,
and the plywood can be clamped in place to secure
the sander for use. After use, the plywood can be
unclamped and the sander stored for future use.
2. When positioning the machine for work, locate it
in an area that has ample space around the sander
for the moving of projects to be sanded. Align the
machine so that it will not face aisles, doorways, or
other work areas that bystanders may be in. Do not
locate or use the machine in damp or wet conditions.
Use a Dust Collector to capture the fine dust that is
created when sanding. See the safety instructions.
ASSEMBLY
The 50-310 Oscillating Sander is unique as it is really
2-Sanders-in-1.
- Use the various diameter vertical spindles for sand-
ing those hard to reach curves and holes that are in
your projects design.
- With the special sanding attachment, the 50-310
coverts to a 4” x 24” Belt Sander! Perfect for sanding
straight edges and ats. Plus, the two end drums can
also be used for some curved project sanding!
The 50-310 Sander’s table can be tilted from 0° to 45°
for bevel sanding with the spindle or belt.
The following instructions show the assemblies of
the two sanding options and the changes required to
switch between the machine’s setups.
C
D
E
F
I
J
K
L
M
N
O
P
Q
R
B
A
REAR VIEW
A Belt Sanding Attachment
B Work Table
C Dust Port
D Table Angle Locking Knob
E Rubber Feet (4)
F Table Insert & Tool Storage
G ON / OFF Safety Switch
H Drum & Spindle Storage
I Table Angle Scale and Locking Handle
J Tilting Work Table
K Sanding Belt 4” x 24”
L Belt Tracking Knob
M Miter Gauge
N Spindle Nut & Washer Storage
O Power Cord
P Limiting Plate & Locking Knob
Q Sanding Belt Attachment Knob
R Belt Tension Lever
