• In the When menu, when "< >" is selected, click or tap the input field of Upper
and Lower respectively to set the lower limit value and the upper limit value with
the pop-up numeric keypad. You can also use the specified multifunction knob
to set the values. The lower limit of the pulse width must be smaller than the
upper limit.
8.7.3 Slope Trigger
In Slope trigger, the oscilloscope triggers on the positive or negative slope of the
specified time. This trigger mode is applicable to ramp and triangle waveforms.
In this oscilloscope, positive slope time is defined as the time difference between the
two crossing points of trigger level line A and B with the rising edge; negative slope
time is defined as the time difference between the two crossing points of trigger level
line A and B with the falling edge. As shown in the figure below:
Upper Limit of Trigger Level
(Up Level)
Lower Limit of Trigger Level
(Low Level)
A
B
Positive Slope Time
Negative Slope Time

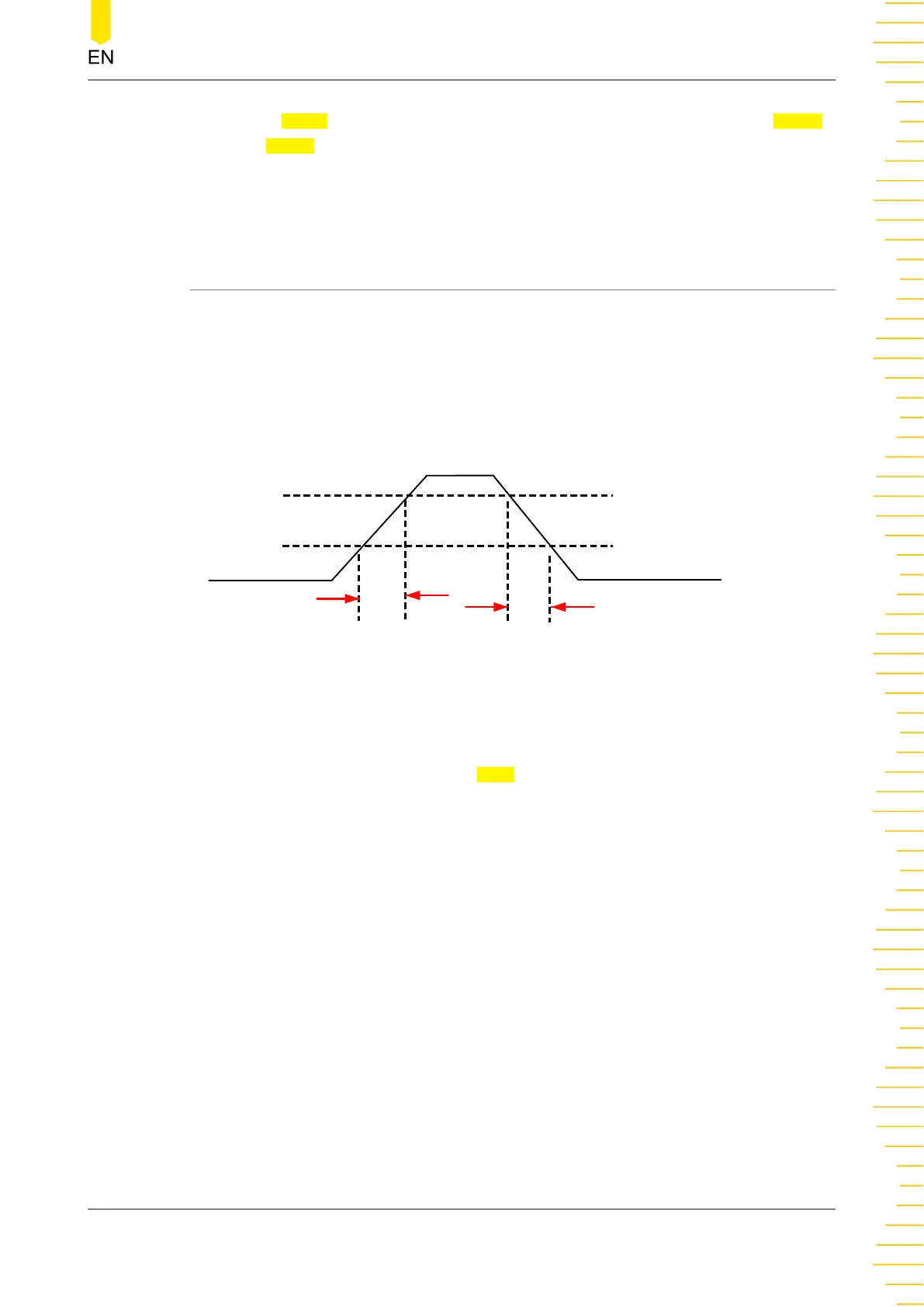

Figure 8.6 Positive Slope Time/Negative Slope Time
Trigger Type
Click or tap the drop-down button of Type to select "Slope" from the drop-down list.
Then set the parameters for Slope trigger.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
79
