Trigger Level
+Width
A
B
-Width
A
B
Trigger Level

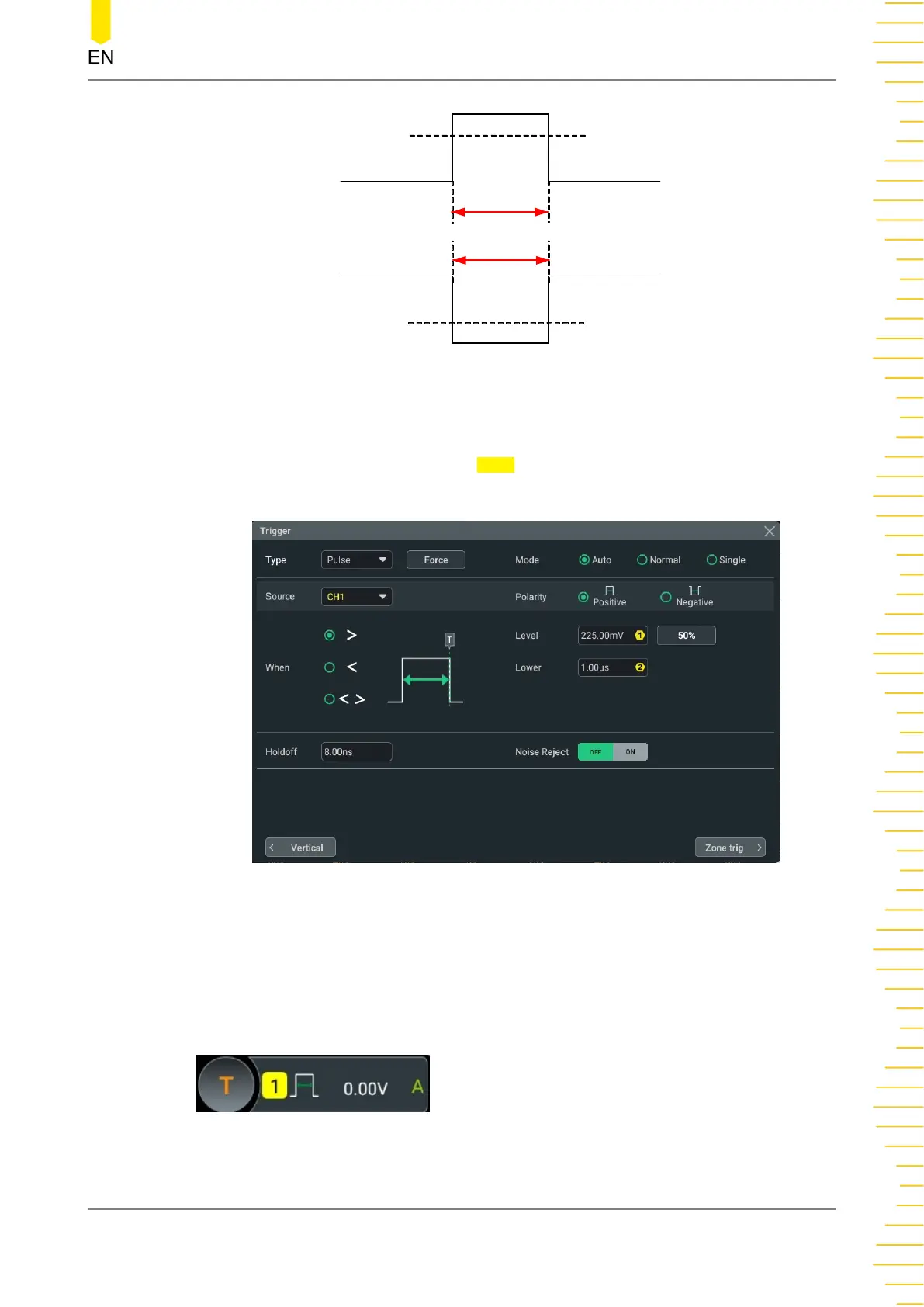

Figure 8.4 Positive Pulse Width/Negative Pulse Width
Trigger Type
Click or tap the drop-down button of
Type to select "Pulse" from the drop-down list.
Then set the parameters for Pulse trigger.
Figure 8.5 Pulse Trigger Setting Menu
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed in the trigger
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
77
