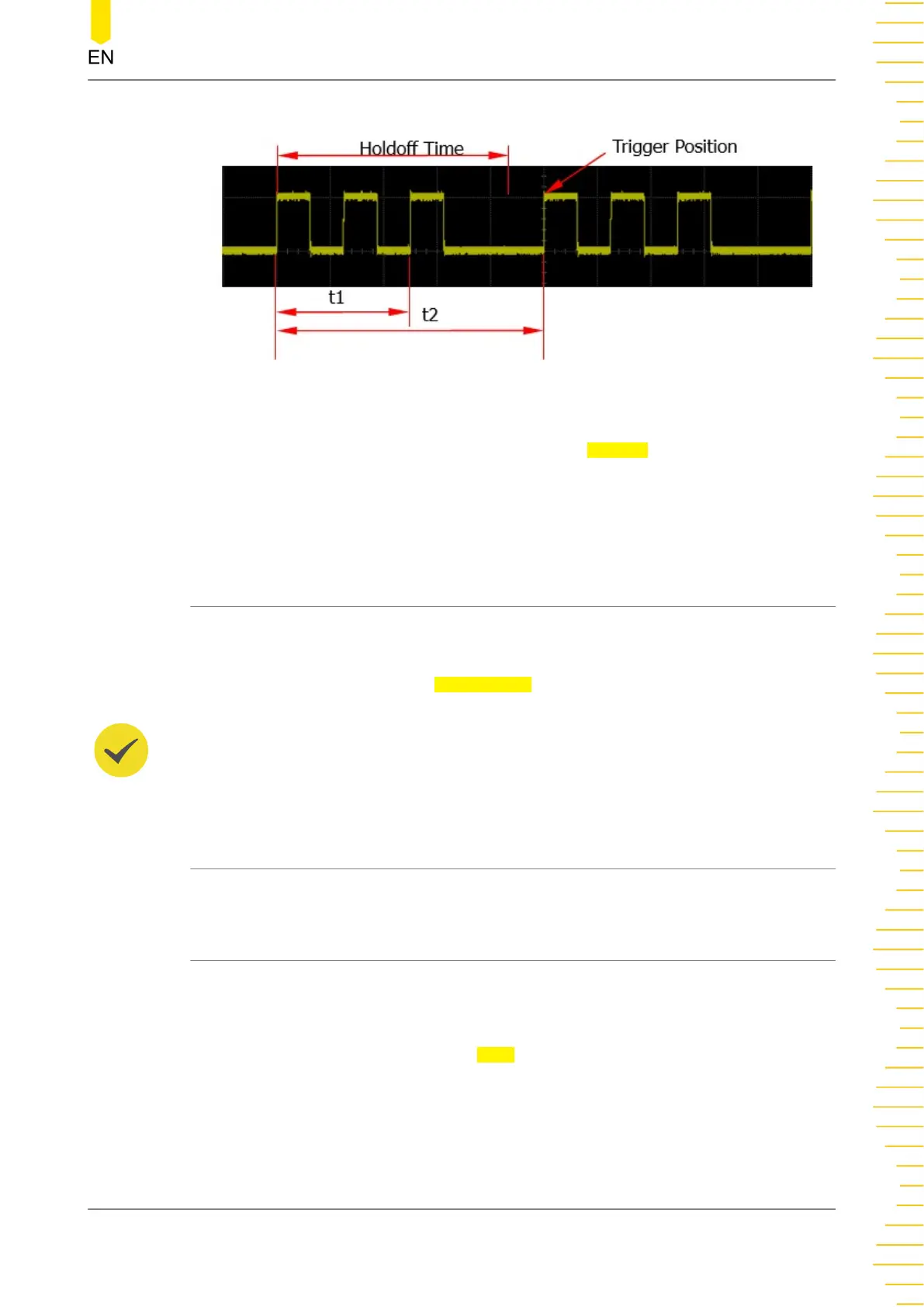

Figure 8.3 Trigger Holdoff
In the trigger interface, click or tap the input field of Holdoff to set the holdoff time
with the pop-up numeric keypad to make it to trigger stably. By default, it is 8 ns. You
can also rotate the specified multifunction knob indicated in the input field to set the
value. The adjustable range of the holdoff time is from 8 ns to 10 s.
8.6 Noise Rejection
Noise rejection can reject the high frequency noise in the signal and reduce the
possibility of miss-trigger of the oscilloscope.
Click or tap the ON/OFF tab for Noise Reject to enable or disable the noise rejection.
TIP
This function is only valid when the trigger source is an analog channel, digital channel, or EXT.
8.7 Trigger Type
This series oscilloscope provides the following trigger types.
8.7.1 Edge Trigger
Triggers on the trigger level of the specified edge of the input signal.
Select the Trigger Type
Click or tap the drop-down button of Type to select "Edge" from the drop-down list.
For the Edge trigger menu, refer to
Figure 8.1
.
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) Back is displayed in the
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
75
