8
To Trigger the Oscilloscope
The trigger system allows you to set specific trigger conditions as required. The
oscilloscope captures a waveform and its neighboring part to display them on the
screen once a particular trigger condition is met. For a digital oscilloscope, it samples
waveforms ceaselessly no matter whether it is stably triggered. However, only stable
triggering can guarantee the stable display of waveforms. The trigger module ensures
that every time base sweep or acquisition starts from the user-defined trigger
condition, namely every sweep is synchronous with the acquisition and the
waveforms acquired are overlapped so as to display the stable waveforms.
You should set the triggers based on the features of the input signal. To quickly
capture your desired waveforms, you need to understand the signal under test. This
oscilloscope provides a variety of trigger types that help you focus on the desired
waveform details.
You can enter the
Trigger menu in the following ways.
• Press the front-panel key to enter the trigger menu.
• In the Vertical menu, click or tap the Trigger button to enter the trigger setting
menu.
• Click or tap the trigger label (as shown in the figure below) at the top of the
screen to enter the trigger menu.

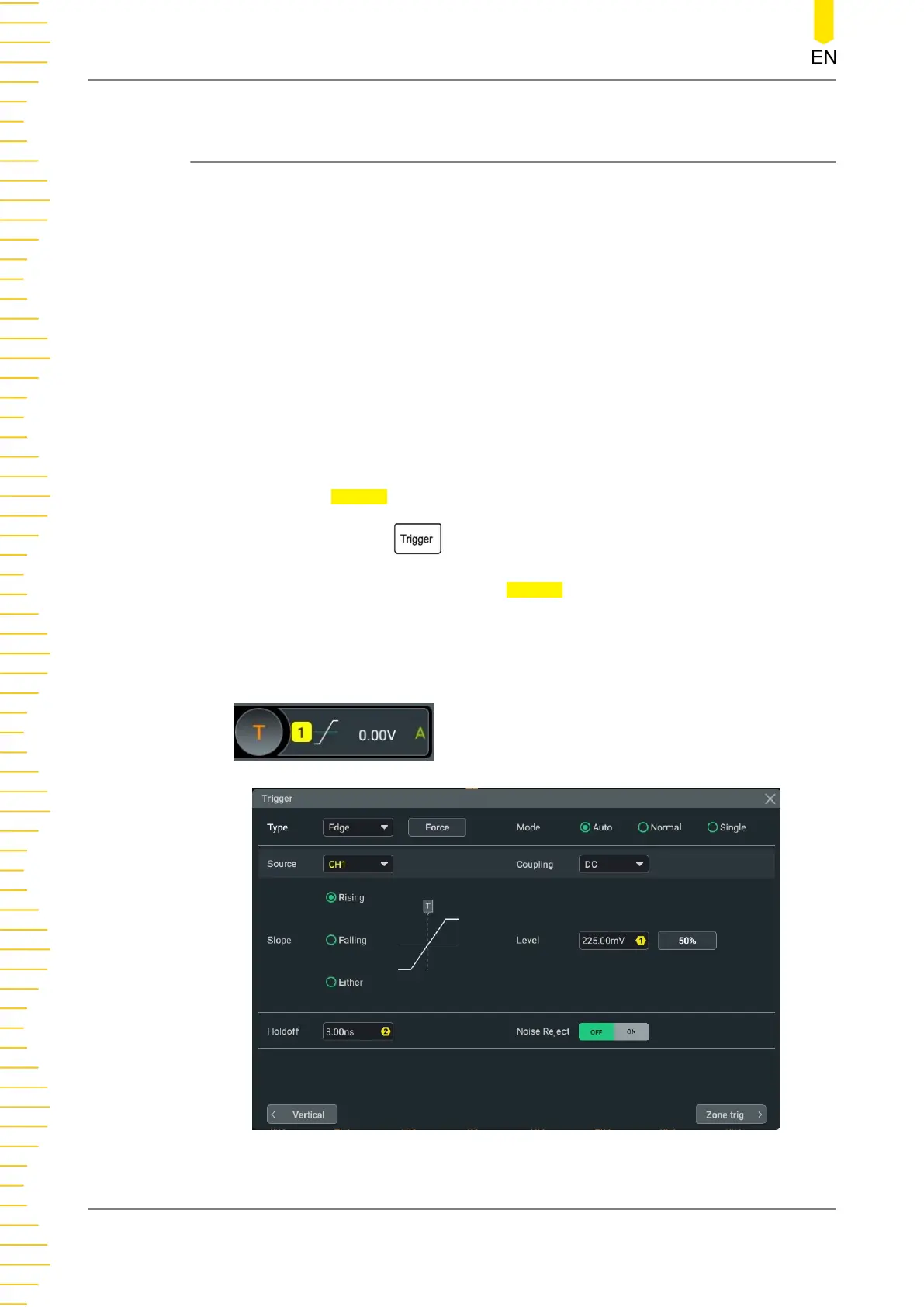

Figure 8.1 Trigger System Menu
To Trigger the Oscilloscope
MHO2000 User Guide
70
