MDepth
indicates the memory depth. The unit is pts.
•
SRate
indicates the sample rate. The unit is Sa/s.
•
TSCale
indicates the horizontal time base scale. The unit is s/div.
•
HDivs
indicates the number of grids in the horizontal direction. The unit is div.
Therefore, under the same horizontal time base scale, a higher memory depth can
ensure a higher sample rate.
In the
Horizontal system menu, click or tap the drop-down button of Mem Depth to

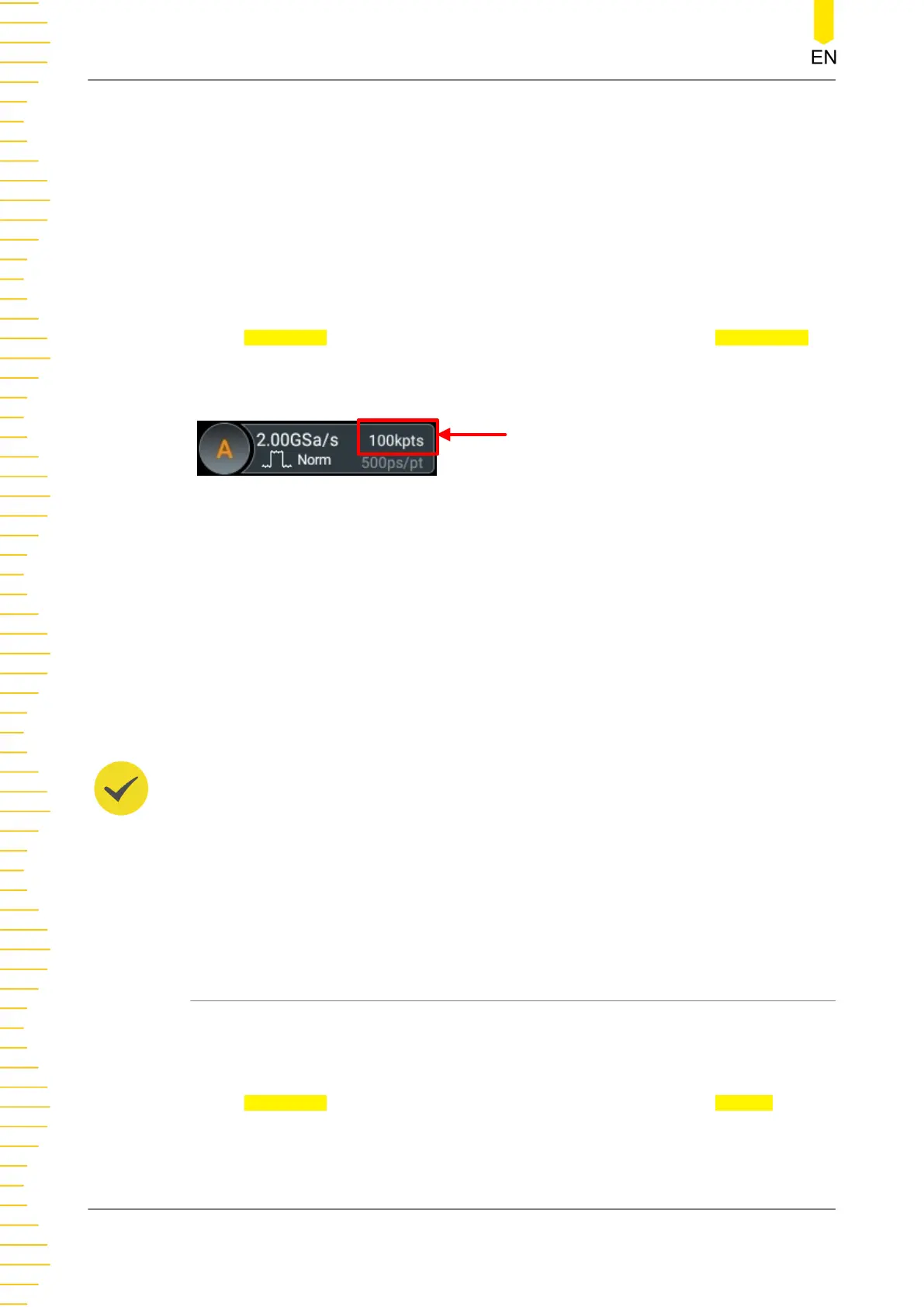

select the memory depth. By default, the memory depth is 10 kpts. The memory
depth value will be displayed in the sample rate label at the top of the screen.
Memory Depth
• CH1 and CH3 are considered as one group; CH2 and CH4 are considered as
another group.
• When only one of the channels in each group is enabled, or when both channels
in either group are enabled, the memory depths available include Auto, 1 kpts,
10 kpts, 100 kpts, 1 Mpts, 10 Mpts, 25 Mpts, 50 Mpts, 100 Mpts, 125 Mpts, 200
Mpts, 250 Mpts, and 500 Mpts.
• When one or two channels in either group are both enabled, the memory depths
available include Auto, 1 kpts, 10 kpts, 100 kpts, 1 Mpts, 10 Mpts, 25 Mpts, 50
Mpts, 100 Mpts, 125 Mpts, 200 Mpts, and 250 Mpts.
TIP
• In "Auto" mode, the oscilloscope selects the memory depth automatically according to
the current sample rate.
• When
Acquisition Mode
is set to "High Res", "Auto" is not available for the memory
depth setting.
• When
Acquisition Mode
is set to "Average", only 1 kpts, 10 kpts, 100 kpts, 1 Mpts, 10
Mpts, 25 Mpts, and 50 Mpts are available for the memory depth setting.
7.5 Horizontal Expansion
Horizontal expansion indicates the reference position that the screen waveform is
referenced to when it is horizontally expanded or compressed in adjusting the
horizontal time base.
In the Horizontal system menu, click or tap the drop-down button of Expand to
select the horizontal reference baseline. The available choices include Center, Left,
Right, Trigger, and User. The default is "Center".
Acquisition System
MHO2000 User Guide
66
