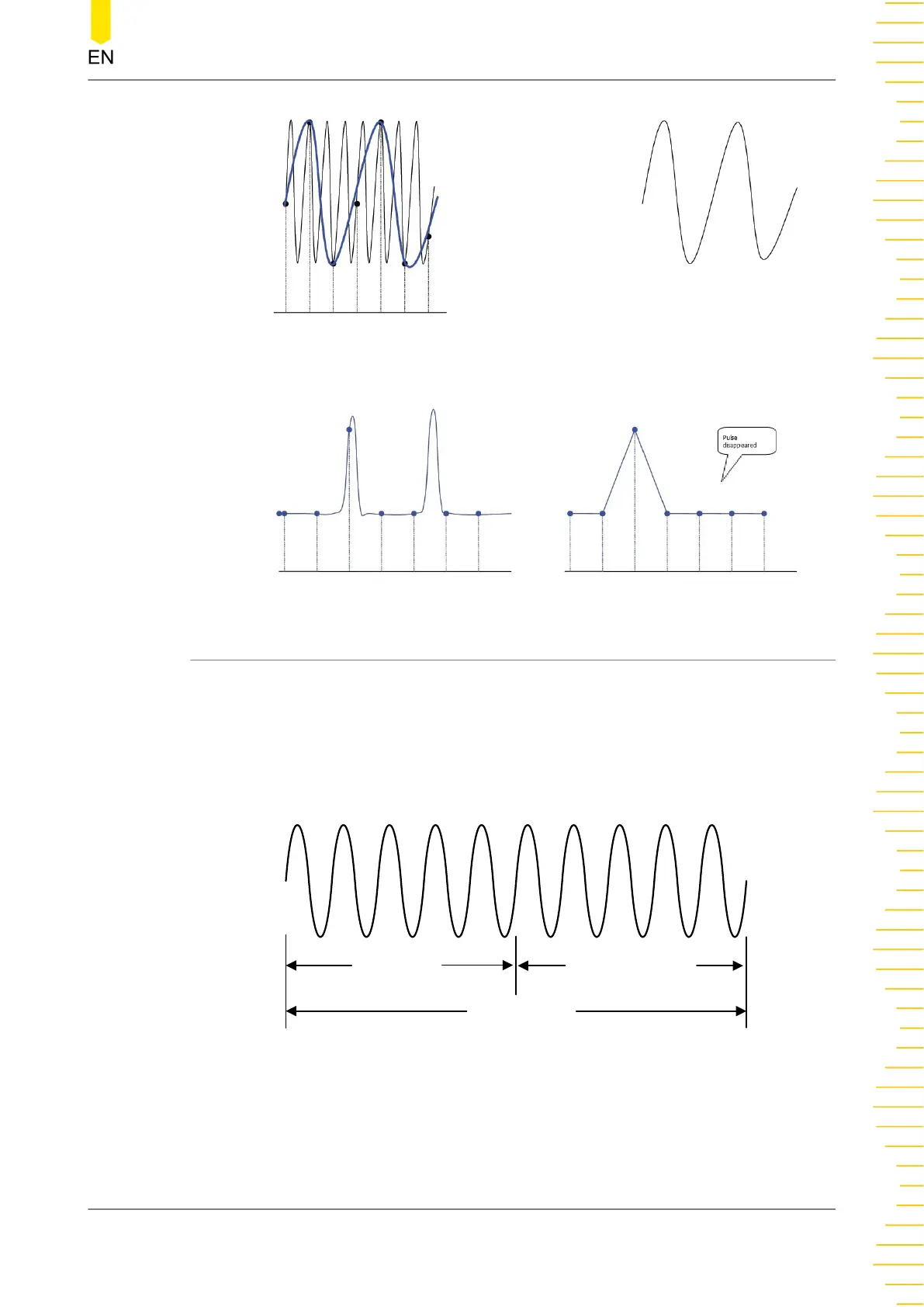

• Waveform Leakage: when the sample rate is too low, the waveform rebuilt from
the sample data does not reflect all the actual signal information.
7.4 Memory Depth
Memory depth refers to the number of points of the oscilloscope that can store in
one trigger acquisition. It reflects the storage capability of the acquisition storage.
The max. memory depth of the MHO2000 series is 500 Mpts in half-channel mode
and 250 Mpts in full-channel mode.
Pre-Sample Delayed Sample
Memory Depth
Trigger Point
T
Figure 7.2 Memory Depth
MDepth ≥ SRate x TSCale x HDivs
The following equation shows the relations among memory depth, sample rate, and
horizontal time base scale:
Acquisition System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
65
