7
Acquisition System
The "Horizontal" menu allows you to configure the instrument's acquisition system.

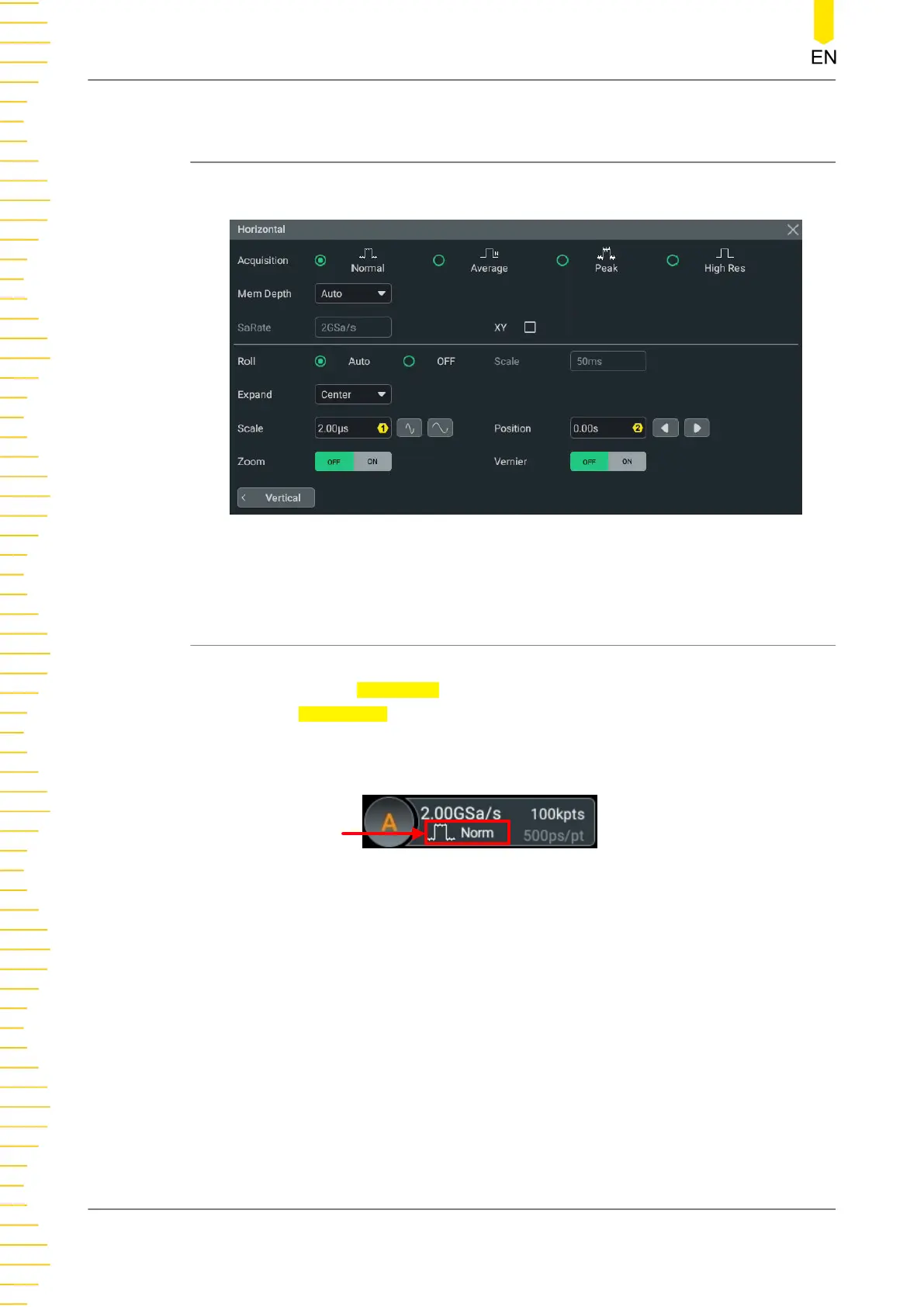

Figure 7.1 Horizontal Menu
7.1 Acquisition Mode
The acquisition mode is used to control how to generate waveform points from the
sample points. In the Horizontal system menu, click or tap the desired acquisition
mode for the Acquisition menu. The available choices include Normal, Average, Peak,
High Res. By default, the acquisition mode is Normal. The acquisition mode will be
displayed in the acquisition label at the top of the screen.
Acquisition Mode
Normal
In Normal acquisition mode, the oscilloscope samples the signal at a fixed time
interval to rebuild the waveform. For most of the waveforms, this mode is adopted to
achieve optimal display effects..
Average
In this mode, the oscilloscope averages the waveforms from multiple samples to
reduce the random noise of the input signal and improve the vertical resolution.
Greater number of averages can lower the noise and increase the vertical resolution;
while at the same time, it will slow the response of the displayed waveform to the
waveform changes.
Acquisition System
MHO2000 User Guide
62
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
