• Zoomed Scale: Rotate the specified multifunction knob to increase or decrease
the time base. Click or tap the icon at the right side of the Scale input field to
increase or decrease the zoom scale. You can also click or tap the input field to
input the specific value directly via the pop-up numeric keypad.
• Zoomed Position: Rotate the specified multifunction knob to increase or
decrease the horizontal position. Click or tap the Left/Right arrow icon at the
right side of the
Position input field to increase/decrease the position. You can
also click or tap the input field to input the specific value directly via the pop-up
numeric keypad.

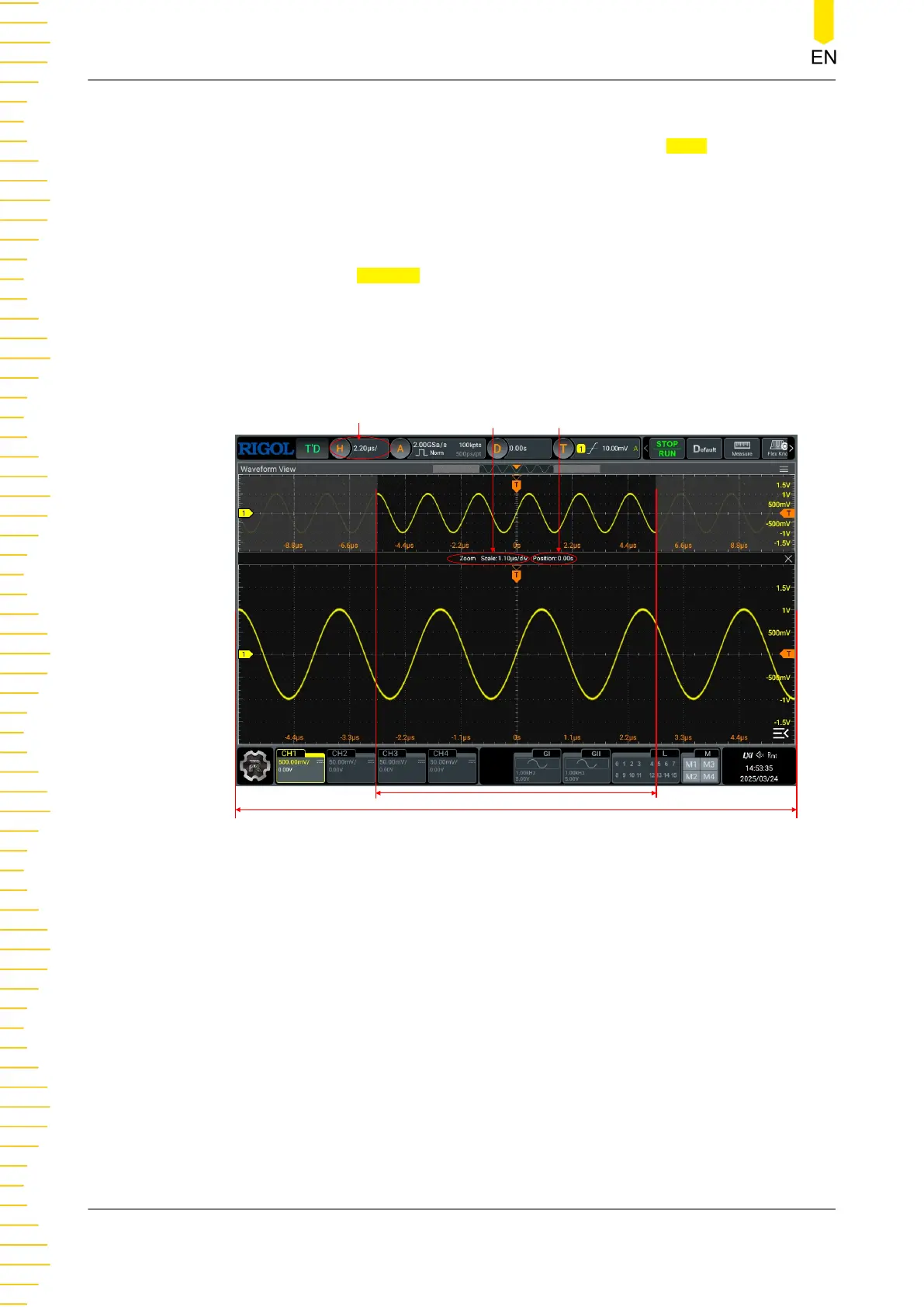

In delayed sweep mode, the screen is divided into two display areas as shown in the
figure below.
Main Time Base
Zoomed Time Base
Zoomed Position
Waveform before Expansion
Waveform after Expansion
Figure 6.2 Zoom Mode (Delayed Sweep Mode)
• Waveform before expansion:
The upper portion of the display that is not covered by subtransparent gray
shows the normal display of the waveform. Its horizontal time base (called the
main time base) is indicated in the label at the upper-left corner of the display.
You can move the area left and right by adjusting the horizontal position and
increase or decrease the size of the area by adjusting the horizontal scale.
• Waveform after expansion:
The lower portion shows the horizontally expanded version of the normal
waveform display. Its horizontal time base (called the zoomed time base) is
Horizontal System
MHO2000 User Guide
60
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
