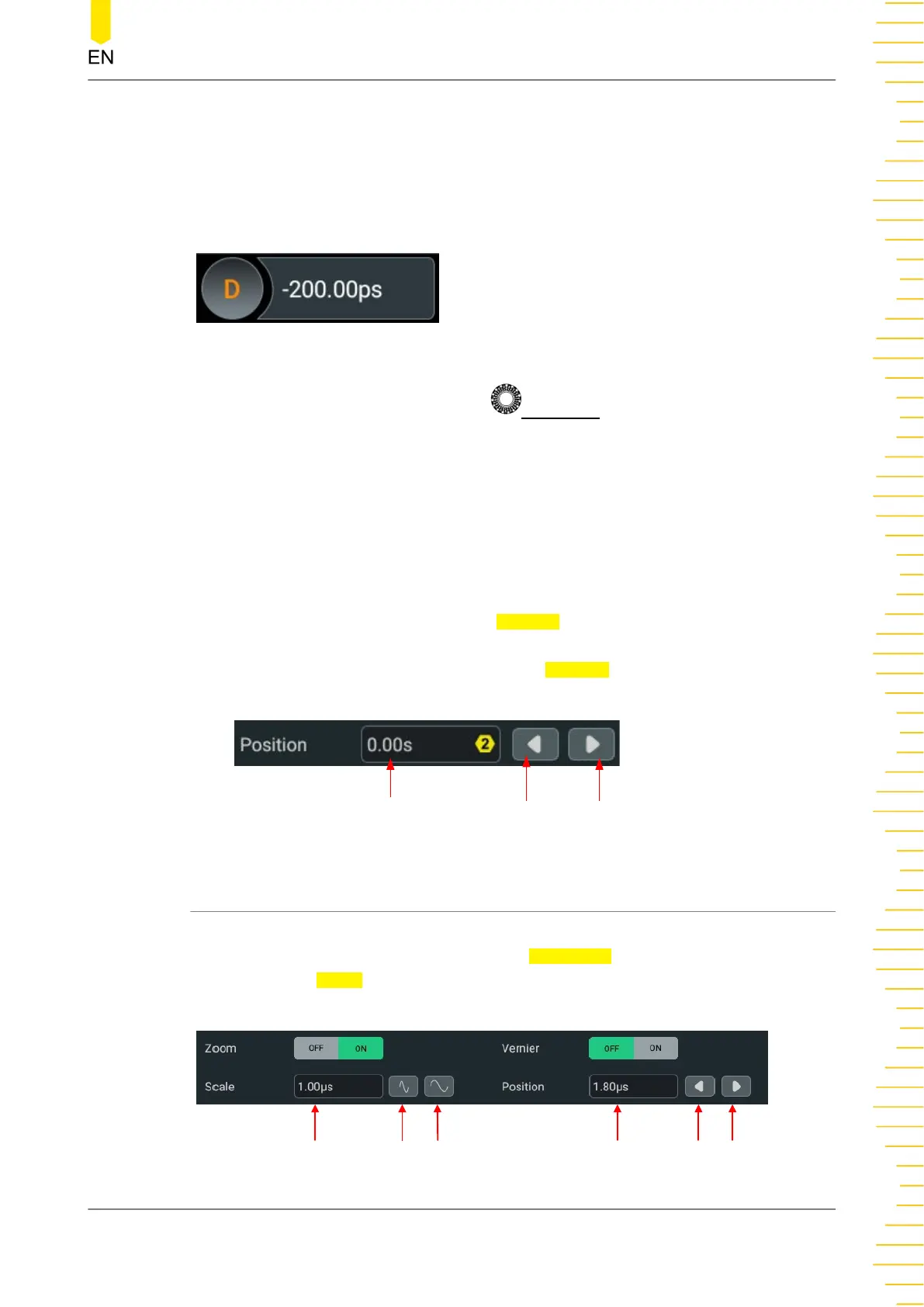

When the waveform trigger point is at the left (right) side of the screen center, the
horizontal position is a positive (negative) value.
While you change the horizontal position, the waveform trigger points and the
displayed waveforms of all channels are moved left and right. The horizontal position
at the top of the screen changes accordingly, as shown in the figure below.
You can adjust the horizontal position with the following methods.
• Rotate the front-panel Horizontal
POSITION multifunction knob to adjust
the horizontal position within the adjustable range. Rotate it clockwise to reduce
the horizontal position, and counterclockwise to increase the horizontal position.
Pressing down the knob can quickly reset the Horizontal position (set the
horizontal position to 0).
• Enable the touch screen, and then adjust the horizontal position with the Drag
gesture. For details, refer to
Drag
.
• Open the Horizontal system menu, rotate the specified front-panel multifunction
knob indicated in the input field of
Position or click/tap the icon at the right side
of the input field to increase or decrease the value, as shown in the figure below.
You can also click or tap the input field of
Position to input a specific value with
the displayed numeric keypad.
Input Field
Increase
Decrease
6.3 Zoom Mode (Delayed Sweep)
Zoom mode (delayed sweep) can be used to expand a length of waveform
horizontally to view waveform details. In the Horizontal system menu, click or tap the
ON/OFF tab for Zoom to enable or disable the delayed sweep function. When the
delayed sweep is enabled, you can set the scale and position for the delayed sweep.
Scale Input Field Increase Decrease Increase DecreasePosition Input Field
Horizontal System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
59
