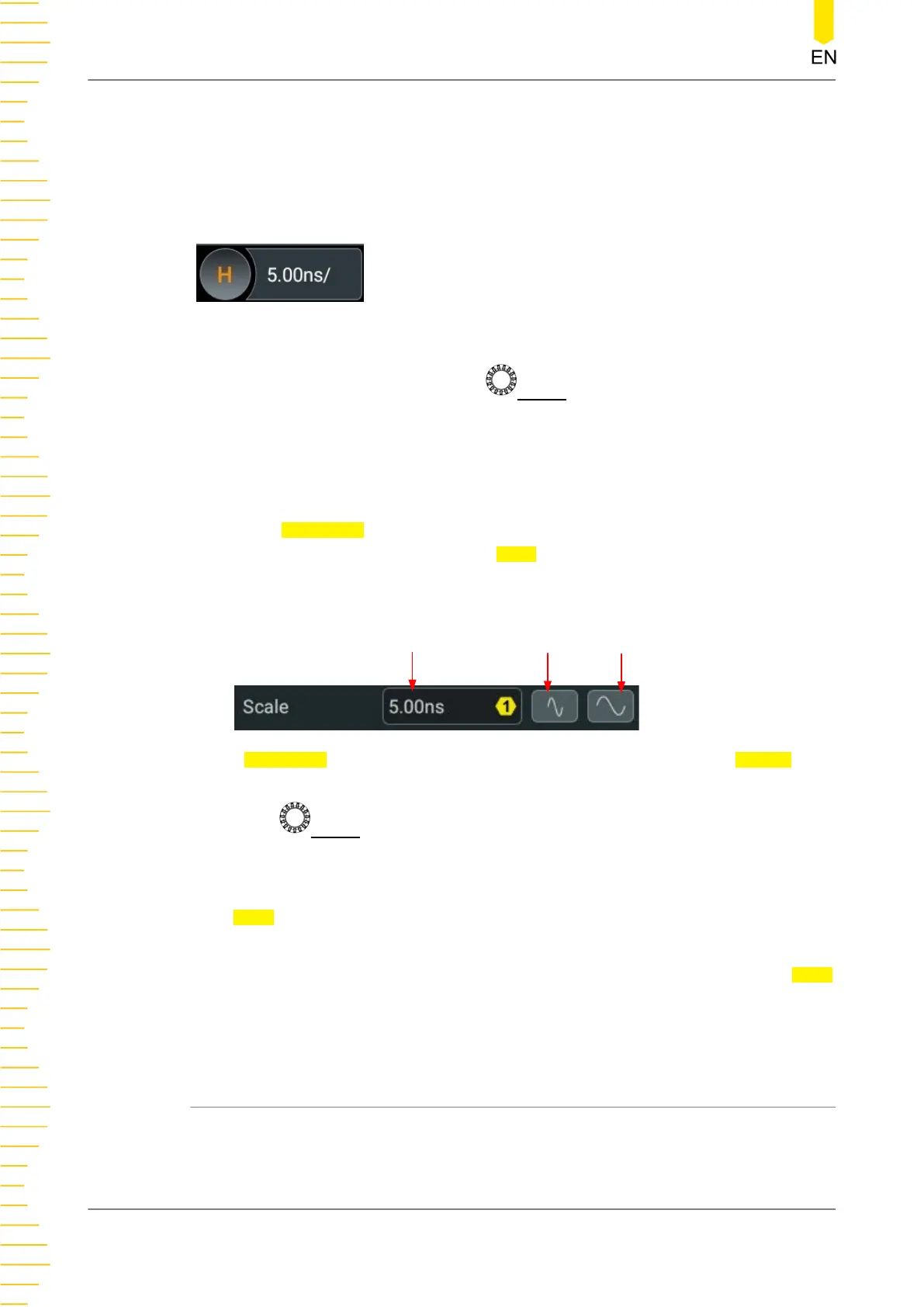

While you change the horizontal time base, the displayed waveforms of all channels
are expanded or compressed (refer to
Horizontal Expansion
) horizontally relative to
the current selected horizontal reference baseline. The horizontal time base at the
upper-left corner of the screen will be changed accordingly, as shown in the figure
below.
You can adjust the horizontal time base in the following ways.
• Rotate the front-panel Horizontal
SCALE knob to adjust the horizontal time
base within the adjustable range. Rotate it clockwise to reduce the horizontal
time base, and counterclockwise to increase the horizontal time base.
• Enable the touch screen function, and then adjust the horizontal time base with
the Pinch&Stretch gesture. For details, refer to
Pinch&Stretch
.
• In the Horizontal system menu, rotate the specified front-panel multifunction
knob indicated in the input field of Scale or click/tap the icon at the right side of
the input field to increase or decrease the scale value. You can also click or tap
the input field to input a specific value with the displayed numeric keypad.
Input Field
Increase
Decrease
In the Horizontal system menu, you can click or tap the ON/OFF tab for Vernier to
enable or disable the fine adjustment function. You can also press down the
Horizontal
SCALE knob to switch the scale adjustment mode between "Coarse"
and "Fine".
• Coarse adjustment: Click or tap the icons at the right side of the input field of
Scale to adjust the horizontal time base of the waveforms of all channels in a
1-2-5 step sequence within the adjustable range.
• Fine adjustment: Click or tap the icon at the right side of the input field of
Scale
to adjust the horizontal time base of the waveforms of all channels at a smaller
step within the adjustable range.
6.2 To Adjust the Horizontal Position
Horizontal position, also called trigger position, refers to the trigger point position of
the waveforms of all channels in the horizontal direction relative to the screen center.
Horizontal System
MHO2000 User Guide
58
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
