Horizontal System
To enter the Horizontal system menu, perform any of the following operations:
• Press the front-panel horizontal controls key to enter the Horizontal
menu.
• Click or tap the channel status label at the bottom of the screen, and then the
Vertical menu is displayed. Click or tap the Acquisition button to enter the
Horizontal menu.
• Click or tap the horizontal time base label ("H" icon), acquisition label ("A" icon),
or horizontal position label ("D" icon) at the top of the screen to enter the
Horizontal menu.

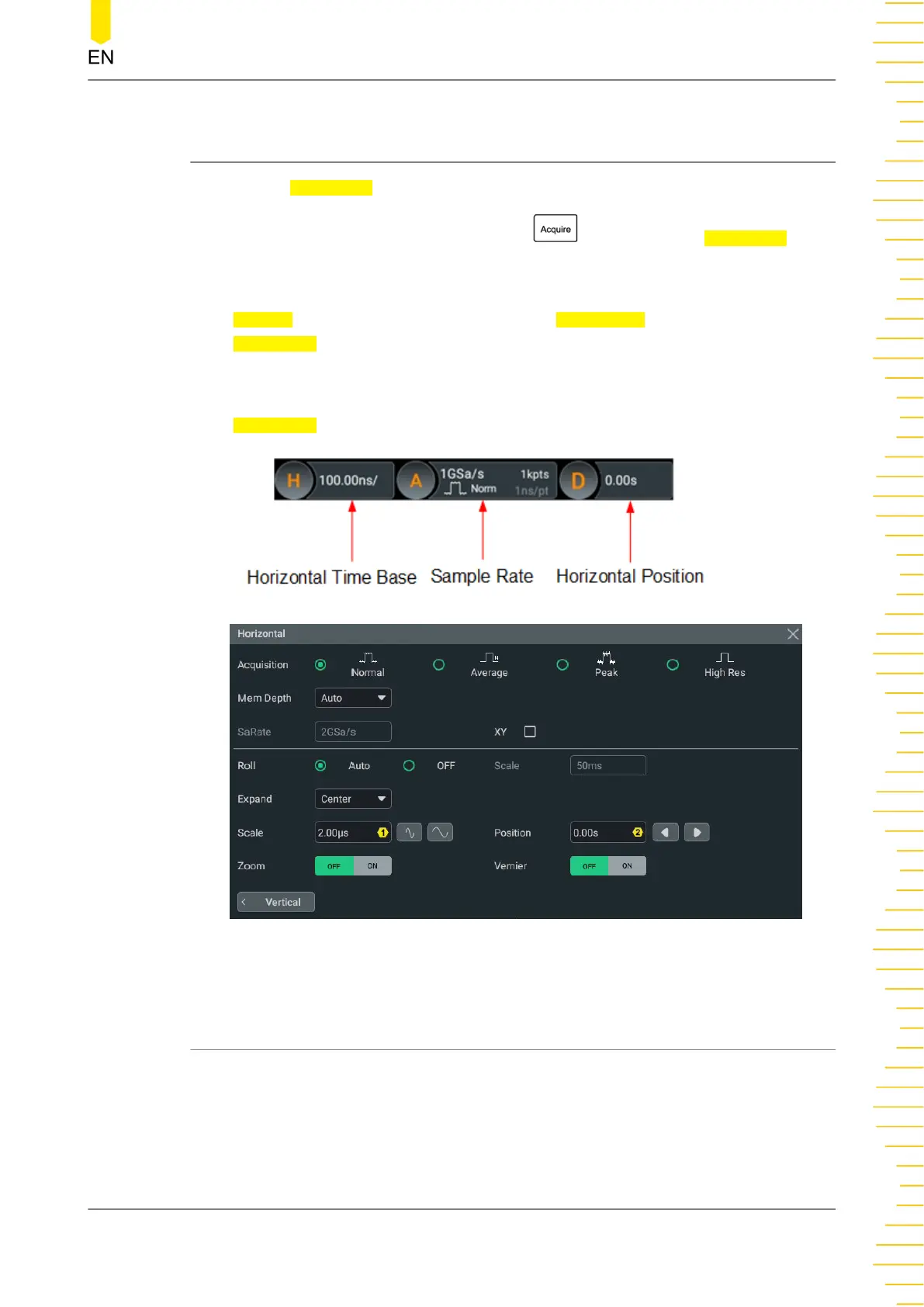

Figure 6.1 Horizontal System Menu
6.1 To Adjust the Horizontal Time Base
Horizontal time base, also called the horizontal scale, refers to the time of each grid in
the horizontal direction of the screen. It is usually expressed in s/div. For MHO2024,
its range of the horizontal time base is from 2 ns/div to 500 s /div; for MHO2034, its
range of the horizontal time base is from 1 ns to 500 s/div.
Horizontal System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
57
