If the instrument works with RP7000/PVA7000 series probes (e.g. PVA7250), the probe
ratio cannot be modified and you need to calibrate the probe. For specific probe
models, please refer to
MHO2000 Data Sheet
. For detailed technical information of
the probes, please refer to the corresponding Probe User Guide.

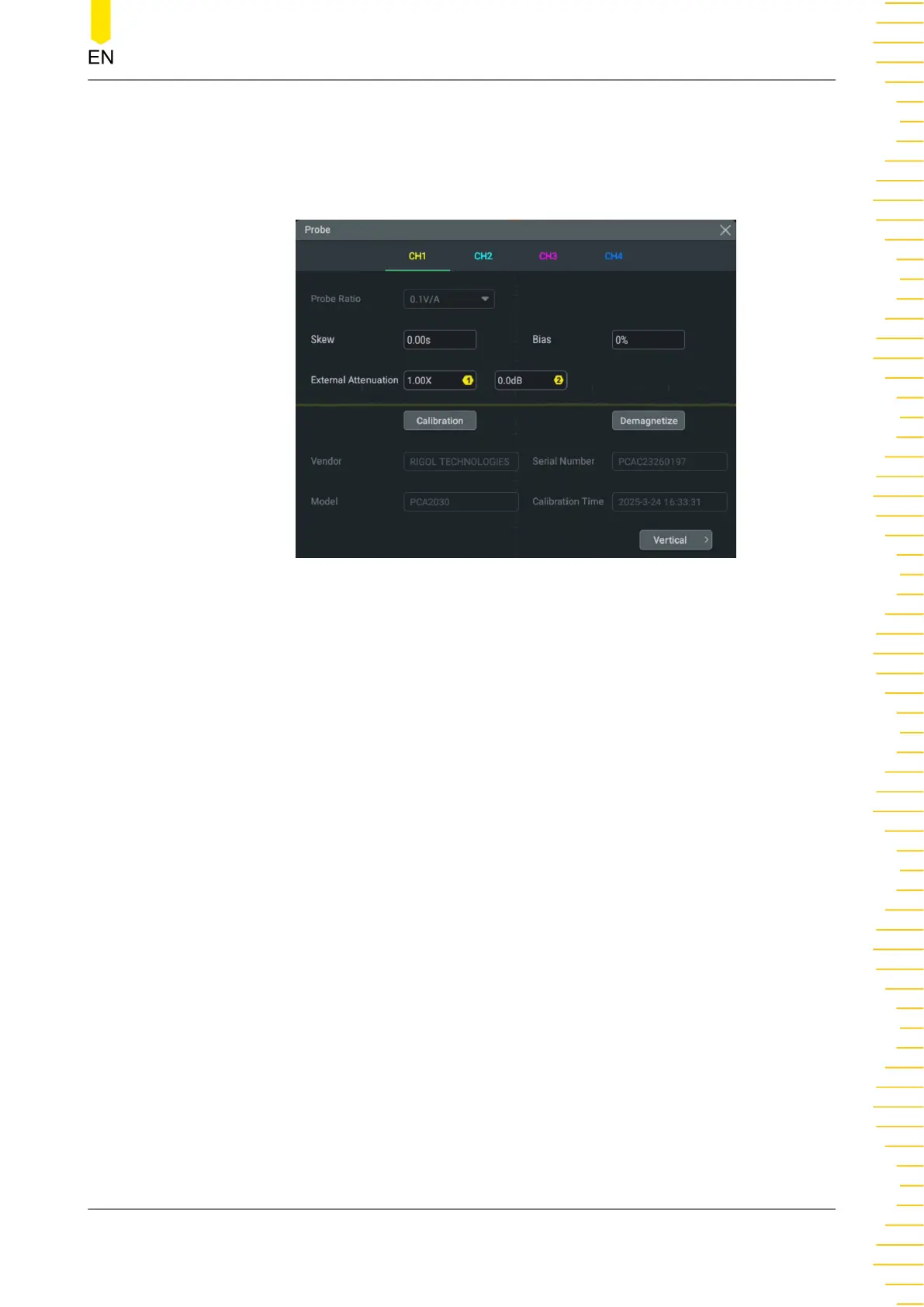

Figure 5.5 Active Probe Setting Menu
Probe Ratio
The probe ratio is defined as the percentage of the voltage of the signal under test to
the probe voltage output to the oscilloscope. The higher the probe ratio, the higher
the probe sensitivity, indicating that more low-level signals can be detected.
• The series oscilloscope auto-recognizes certain probes with a fixed attenuation
ratio. After being recognized, the probe ratio can be auto recognized. You do
not have to set it manually.
• If the oscilloscope is unable to auto-recognize the probe, you are allowed to set
the probe ratio manually. To obtain the correct measurement results, you must
set the probe ratio properly. By default, the probe ratio is 1X.
When a voltage probe is connected to the oscilloscope, refer to
Amplitude Unit
to set
the amplitude unit to V. The following table lists the preset probe ratio of the
oscilloscope. You can also set a user-defined probe ratio according to your needs.
To Set the Vertical System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
51
