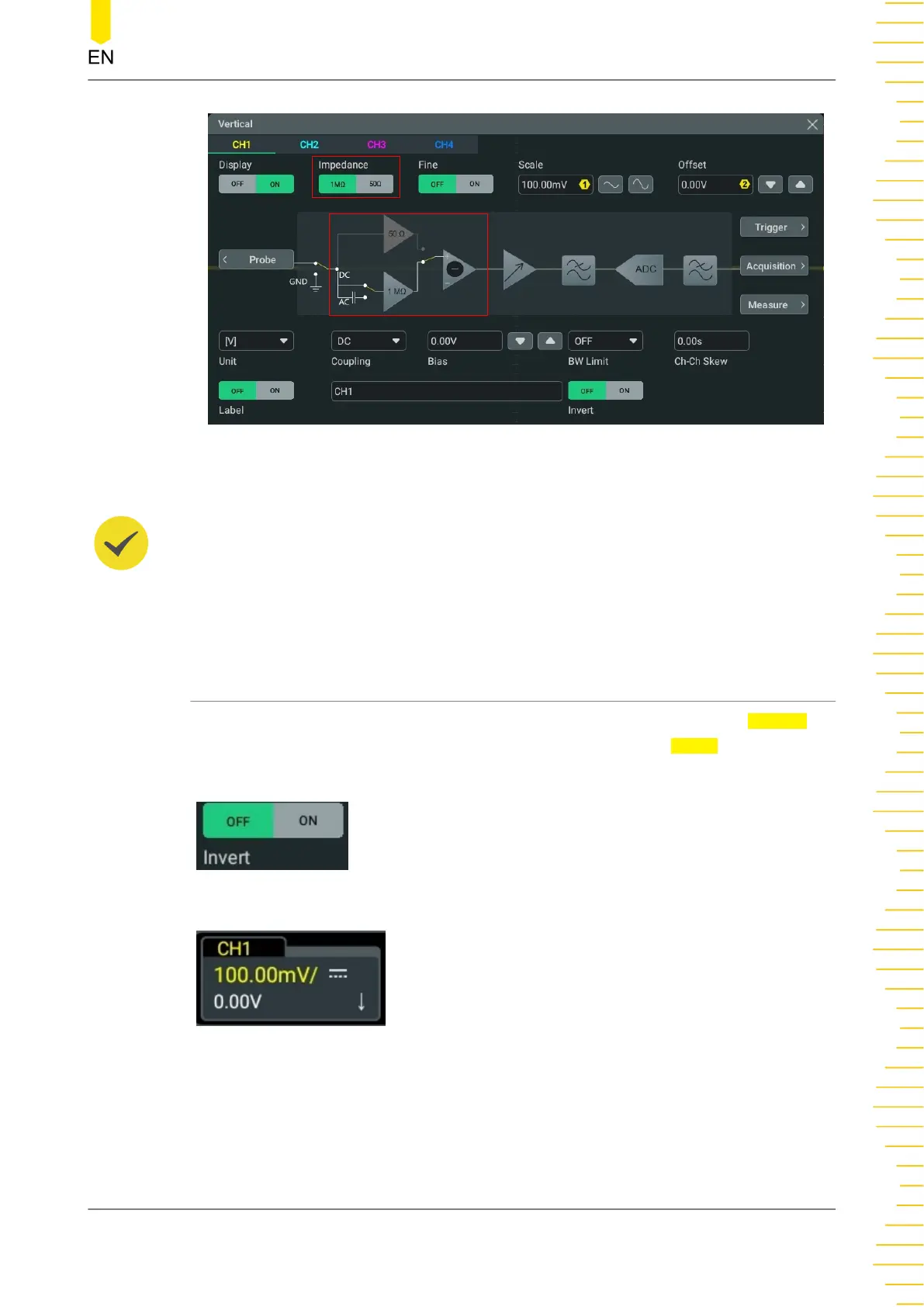

Figure 5.2 Input Impedance Modification
TIP
• After the oscilloscope recognizes the probe automatically, the input impedance will also
be auto recognized. You do not have to set it manually.
• The setting of the input impedance will affect the ranges of channel vertical scale and
offset.
5.7 Waveform Invert
Click or tap the channel status label at the bottom of the screen. Then the Vertical
system menu is displayed. Then click or tap the ON/OFF tab for Invert to enable or
disable the waveform invert function.
When "ON" is selected, the channel label is as shown in the figure below.
When "OFF" is selected, the waveform is displayed normally; when the waveform
invert is enabled, the voltage values of the displayed waveform are inverted, as shown
in the following figure below. Enabling the waveform invert will change the result of
math function and waveform measurement.
To Set the Vertical System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
49
