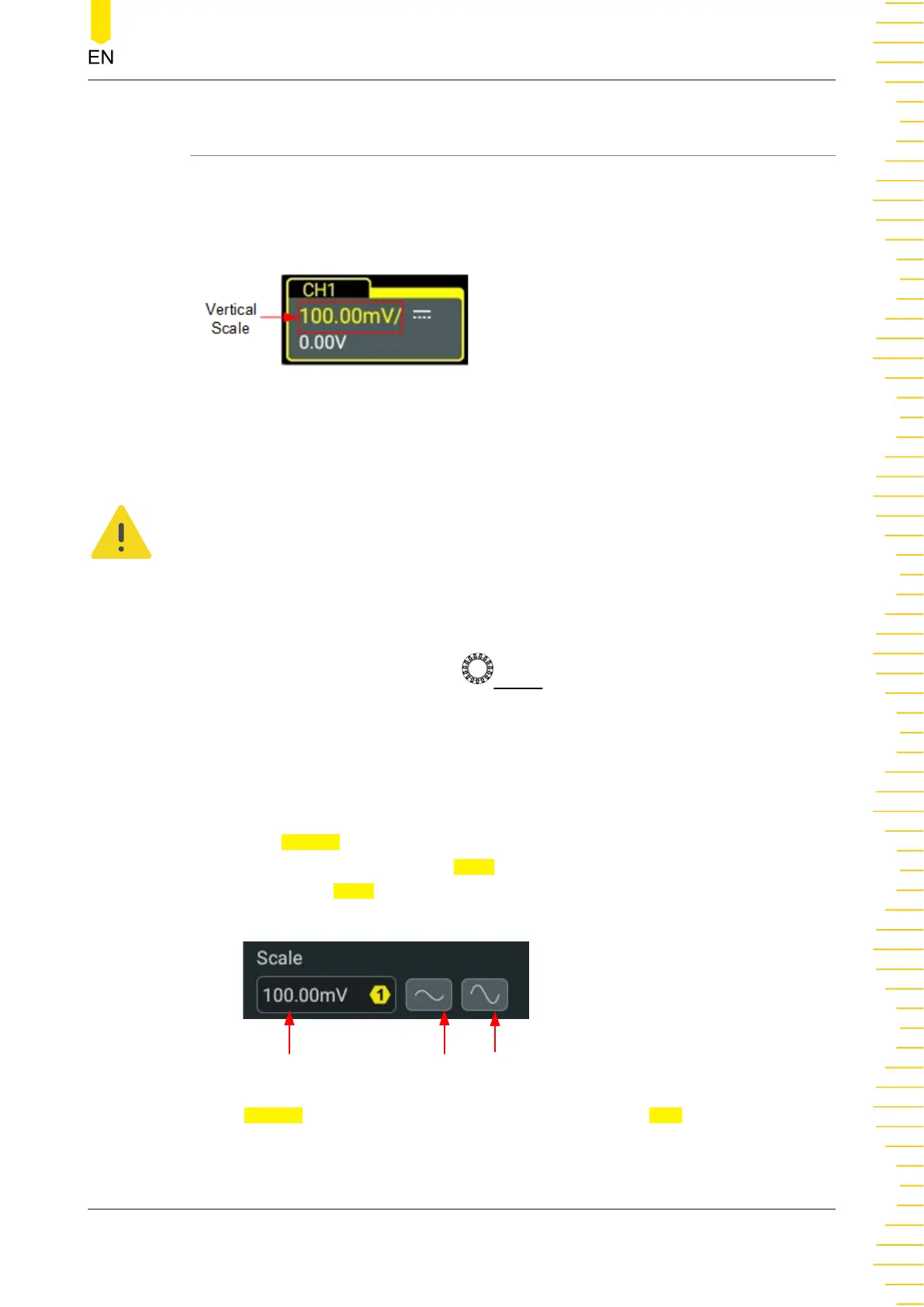

5.2 To Adjust the Vertical Scale
Vertical scale indicates the voltage value per grid in the vertical axis of the screen. It is
often expressed in V/div. While you adjust the vertical scale, the display amplitude of
the waveform would enlarge or reduce. The scale information of the channel status
label at the bottom of the screen would change accordingly.
The adjustable range of the vertical scale is related to the currently set probe ratio
and input impedance. By default, when (probe ratio x external attenuation ration) is
1X and the input impedance is 1 MΩ, the adjustable range of the vertical scale is from
200 μV/div to 10 V/div.
CAUTION
When the vertical scale is less than or equal to 500 µV, the bandwidth limit will be enabled
automatically.
When CH1 is turned on and activated, you can adjust the vertical scale in the
following methods:
• Rotate the front-panel Vertical
SCALE knob to adjust the vertical scale within
the adjustable range. Rotate it clockwise to decrease the scale, and rotate it
counterclockwise to increase the scale.
• Enable the touch screen function, and then adjust the vertical scale with the
pinch & stretch gesture on the touch screen. For details, refer to descriptions in
Pinch&Stretch
.
• In the Vertical menu, rotate the specified front-panel multifunction knob
indicated in the input field of Scale or click/tap the icon at the right side of the
input field of
Scale to increase or decrease the scale value. You can also click or
tap the input field to input a specific value with the displayed numeric keypad.
Input Field
Increase
Decrease
In the Vertical system menu, click or tap the ON/OFF tab for Fine to enable or disable
the fine adjustment of the vertical scale. By default, it is OFF. You can also press down
To Set the Vertical System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
45
