To Set the Vertical System
This series provides four analog input channels (CH1~ CH4), and each channel is
equipped with an independent vertical control system. The setting method for the
vertical system of each channel is the same. This chapter takes CH1 as an example to
introduce the setting method for the vertical system.
When a channel is selected, click or tap the channel status label at the bottom of the
screen. Then the Vertical system menu for the channel is displayed.

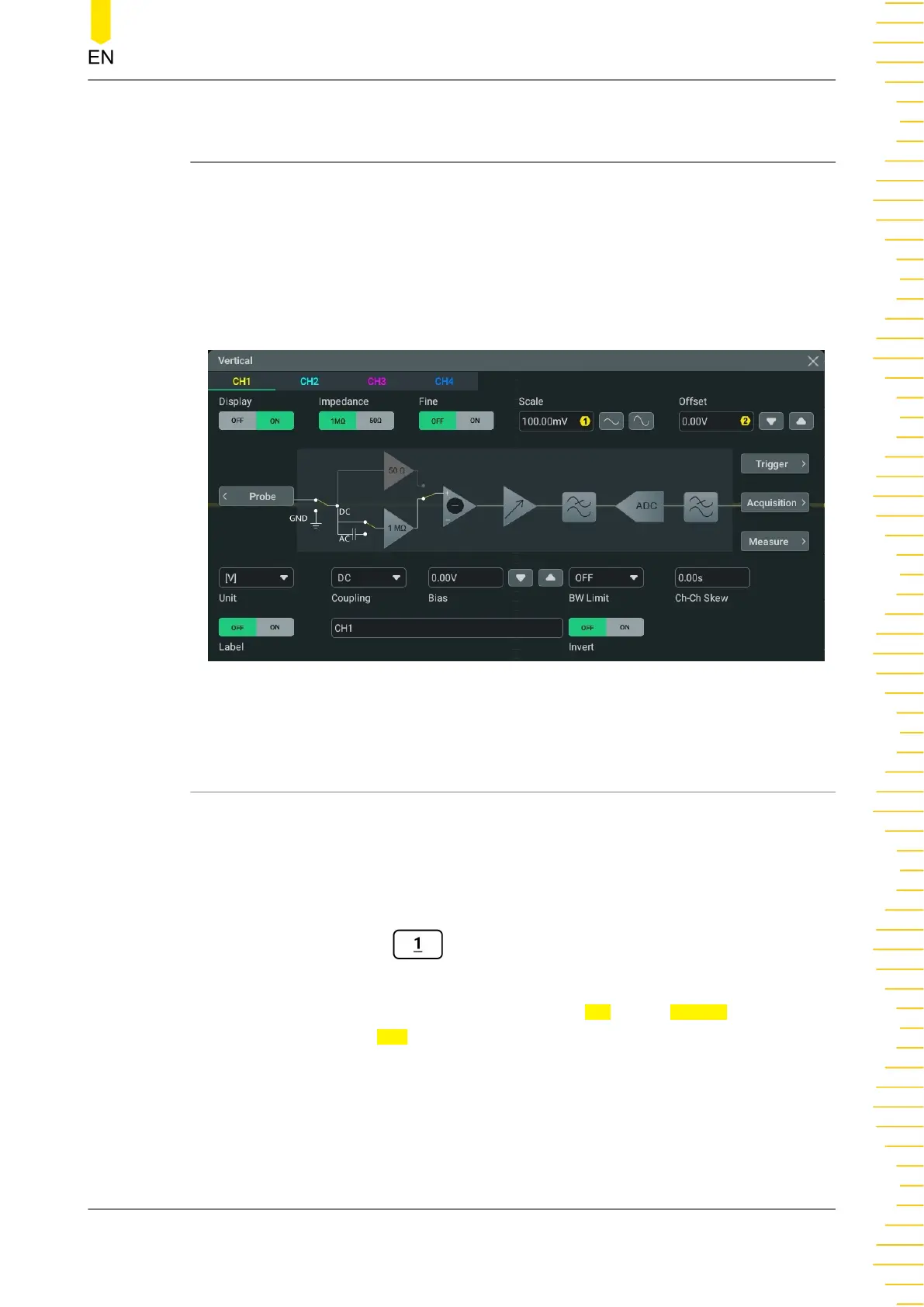

Figure 5.1 Channel Vertical System Menu
5.1 To Enable or Disable the Analog Channel
Enable the Analog Channel
When a signal is connected to CH1, you can enable the channel in the following ways.
• Click or tap the channel status label at the bottom of the screen to enable the
channel.
• Press the front-panel
key to enable the channel, and the backlight of this
key is illuminated.
• In the Vertical menu, select the CH1 tab. Select ON for the Display menu to turn
CH1 on, and select OFF to turn CH1 off.
When CH1 is activated, its status label at the bottom of the screen is as shown in the
figure below.
To Set the Vertical System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
43
