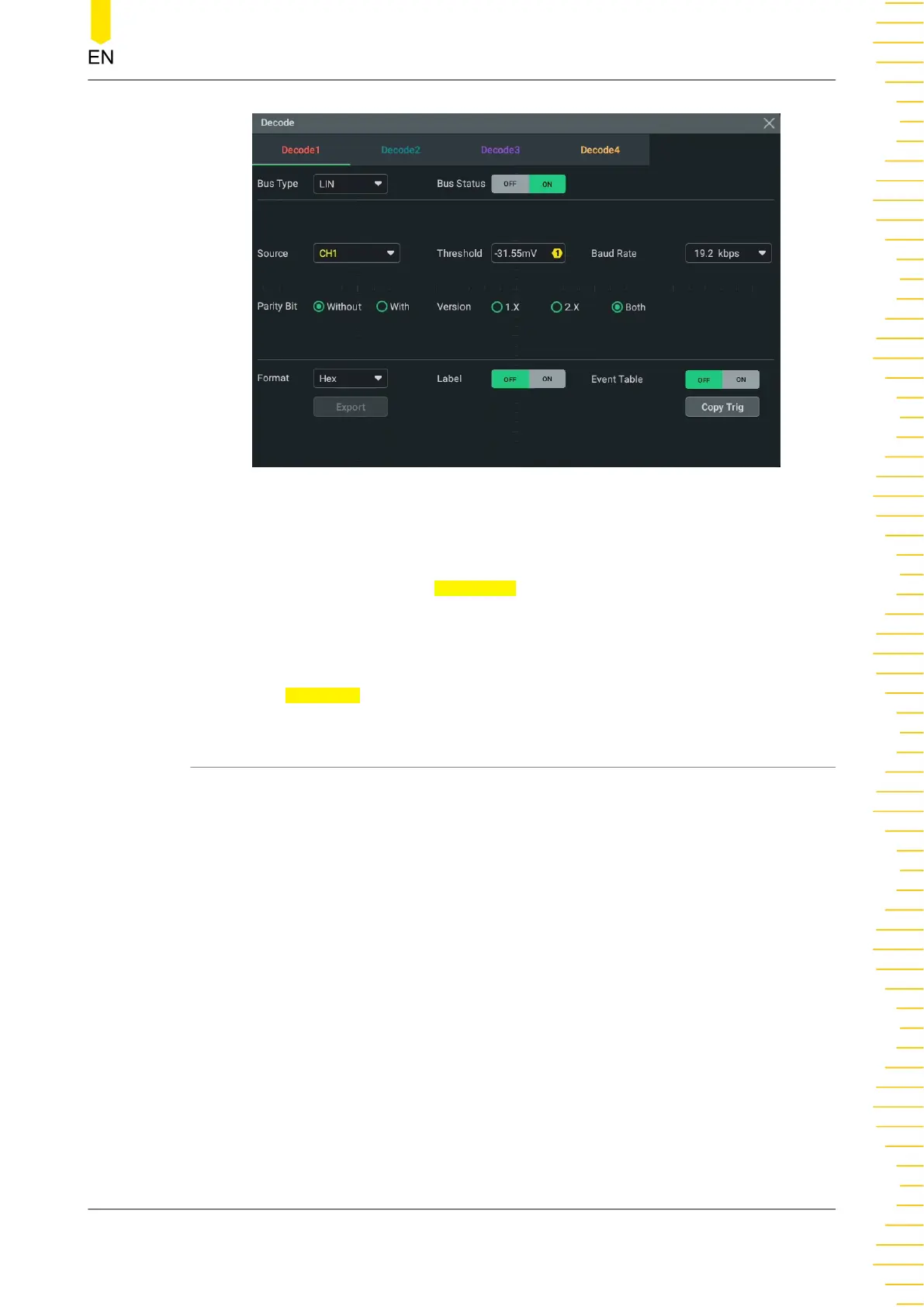

Figure 19.16 LIN Decoding Menu
Bus Status
Click or tap the ON/OFF tab for Bus Status to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap
Copy Trig to apply the trigger settings to the specified decoding setting.
19.6.1 Signal Configuration
Set the Source and the Threshold
• You can select the analog channel or the digital channel as the source.
• When the source is set to an analog channel, you can set the threshold for the
specified channel with the pop-up numeric keypad. You can also use the
specified multifunction knob to set the threshold.
When you modify the threshold, a dotted line displaying the current threshold
level is displayed on the screen. It disappears in about 2 s after you stop
modifying the threshold.
Set the Signal
• You can select the preset baud rate. The preset baud rates include 2.4 kbps, 4.8
kbps, 9.6 kbps, 10.0 kbps, 19.2 kbps, and etc. You can also set a user-defined
baud rate.
• You can select whether the data contain the parity bit.
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
241
