You can also use the multifunction knob on the front panel to adjust the cursor
position.
Minimize the Cursor Setting Window
Click or tap the ON/OFF tab for Minimize to select whether to minimize the window.
When you select ON, the cursor setting window will be minimized and displayed the
cursor menu at the right section of the screen, making the waveform view look more
simplified and concise. When you select OFF, the cursor setting menu window is
displayed on the screen. In the minimized window, click or tap
Max to maximize the
cursor setting window, and it will be displayed on the main screen again. Click or tap
Close to close the window.
Measurement Example
Measure the period of a sine wave by using the manual cursor measurement and
auto measurement respectively. The measurement results are both 8 μs.

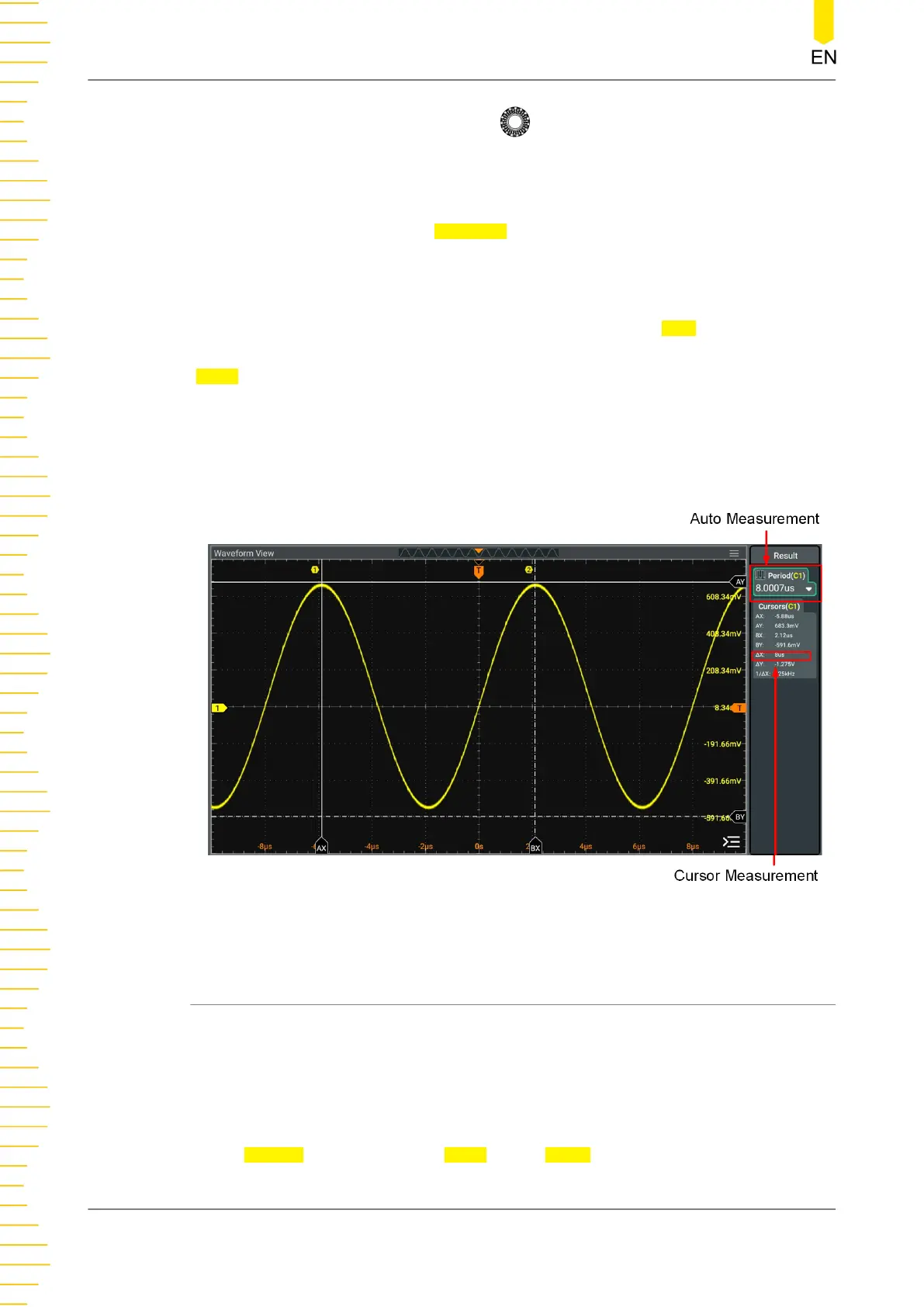

Figure 10.8 Manual Cursor Measurement Example
10.7.2 Track Mode
In the Track mode, you can adjust the two pairs of cursors (Cursor A and Cursor B) to
measure the X and Y values on two different sources respectively. When the cursors
are moved horizontally/vertically, the markers will position on the waveform
automatically. When the waveform is expanded or compressed horizontally/vertically,
the markers will track the points being marked at the last adjustment of the cursors.
In the
Cursors menu, click or tap Track for the Mode item to enable the Track cursor
measurement function. The measurement results are displayed in the result list.
Measurements
MHO2000 User Guide
162
