Trigger Type
Click or tap the drop-down button of Type to select "RS232" from the drop-down list.
Then set the parameters for RS232 trigger.

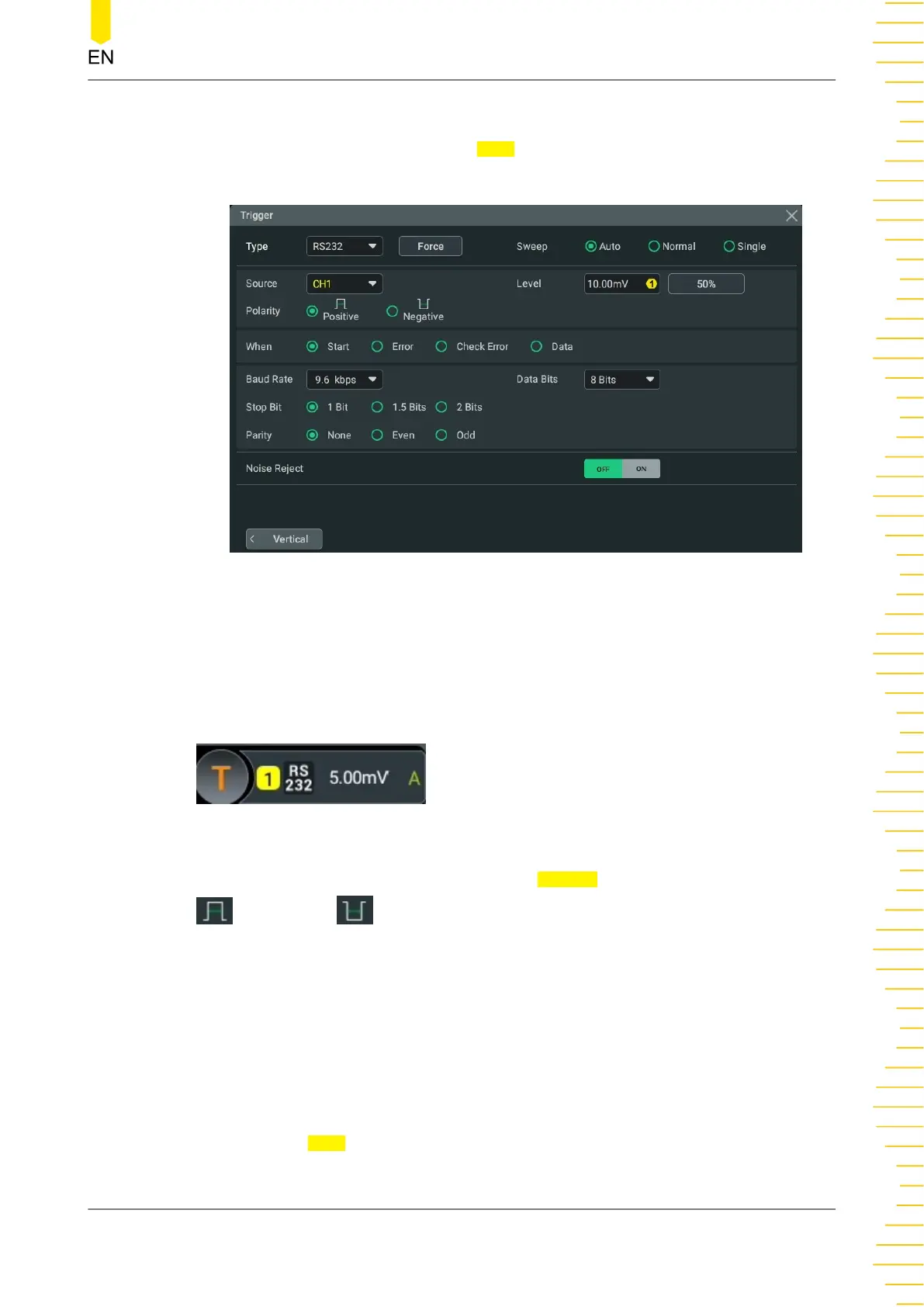

Figure 8.25 RS232 Trigger Setting Menu
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed at the top of the
screen, as shown in the figure below. The information will change based on the
trigger settings.
Polarity
Select the polarity of data transmission in the Polarity item. It can be set to "Positive"
or "Negative" .
Trigger Condition
• Start: triggers on the start frame position.
• Error: triggers when an error frame is detected.
• Check Error: triggers when a check error is detected.
• Data: triggers on the last bit of the preset data bits. Click or tap the drop-down
button of
Data to set the data of RS232 trigger with the pop-up numeric keypad.
You can also use the specified knob to set it.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
103
