P
M
Edge Type=
Edge Num=2
P<Idle Time<M

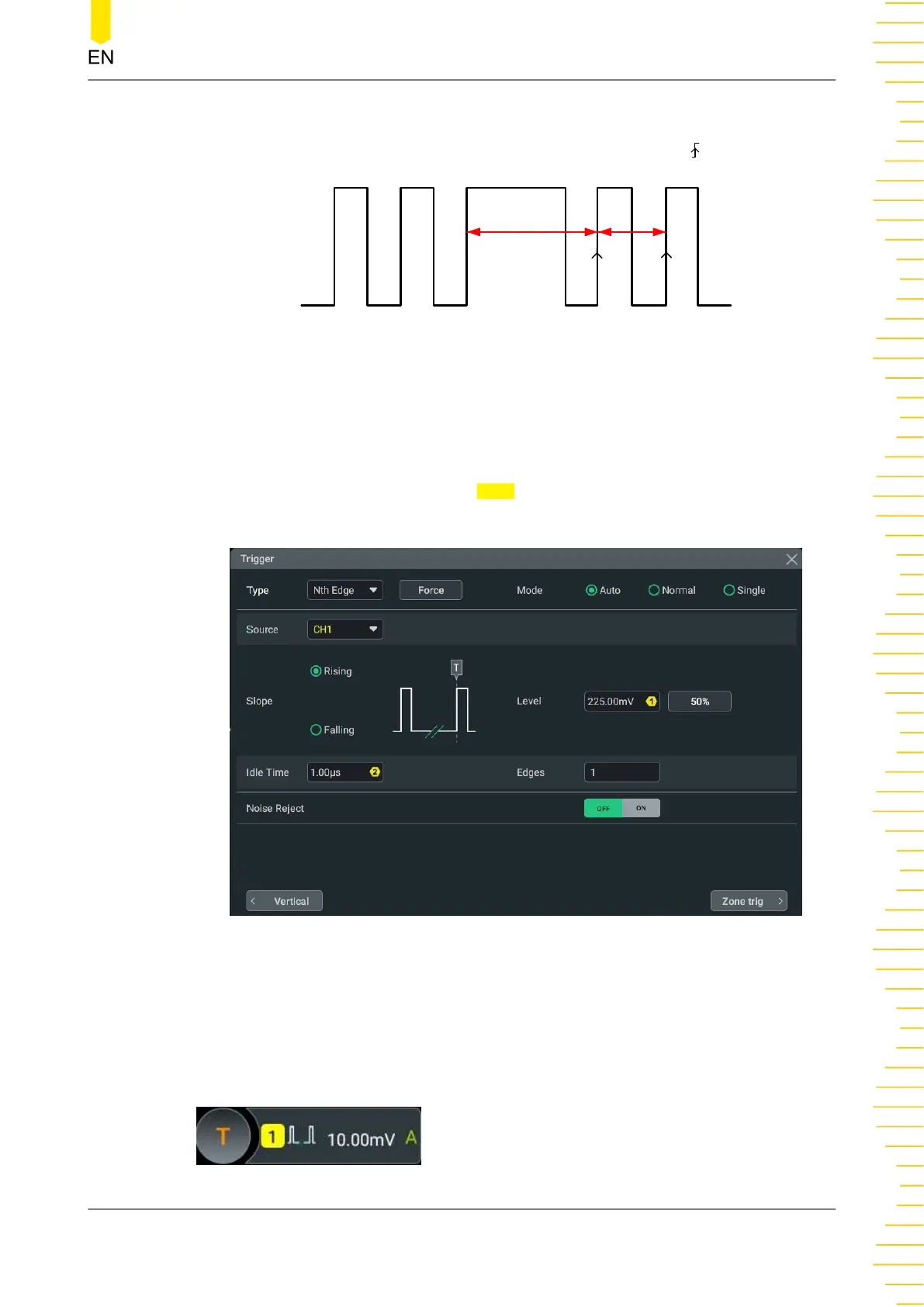

Figure 8.22 Nth Edge Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Nth Edge" from the drop-down
list. Then set the parameters for Nth Edge trigger.
Figure 8.23 Nth Edge Trigger Setting Menu
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed in the trigger
information label at the top of the screen, as shown in the figure below. The
information will change based on the trigger settings.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
101
