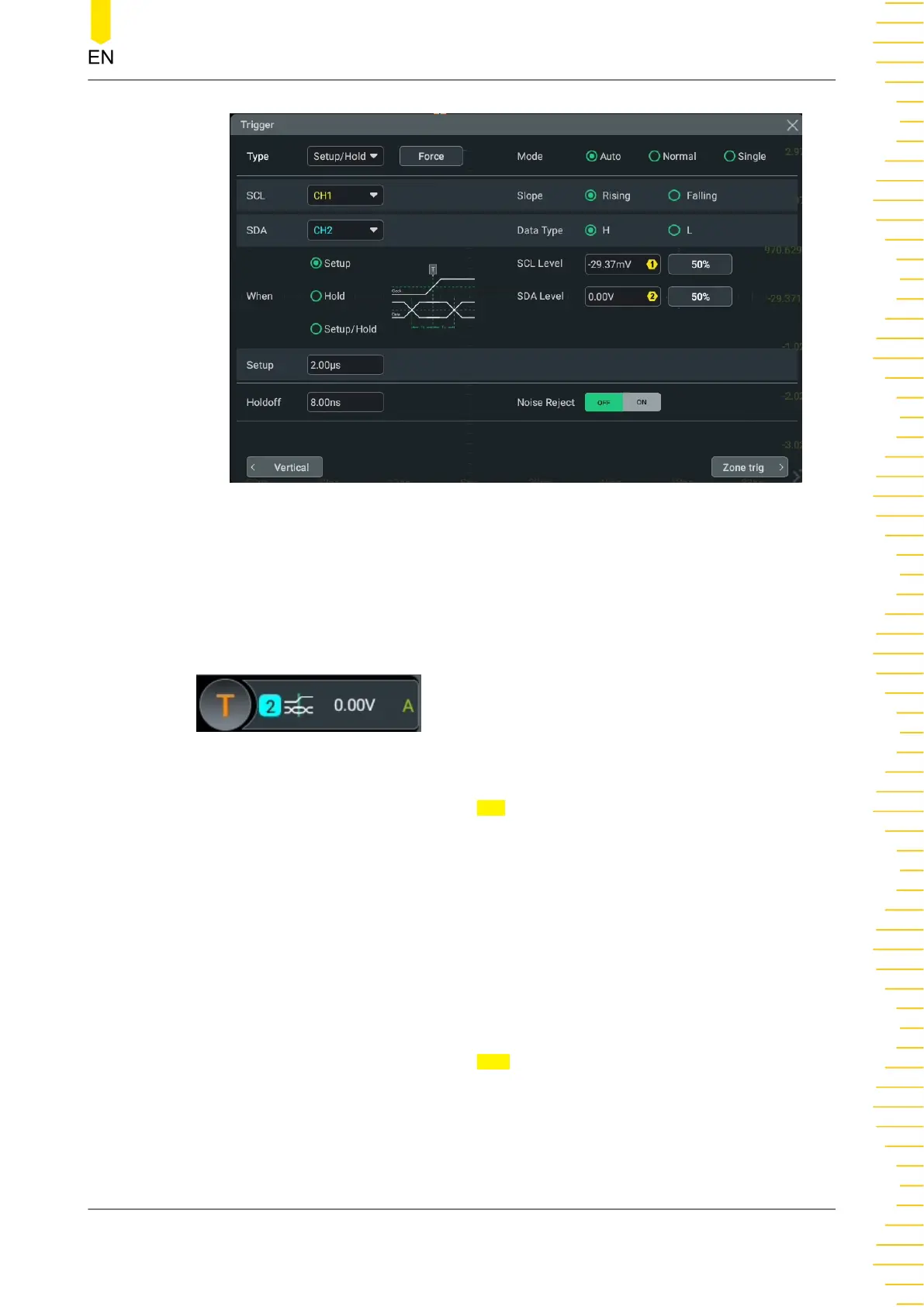

Figure 8.21 Setup/Hold Trigger Setting Menu
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed at the top of the
screen, as shown in the figure below. The information will change based on the
trigger settings.
Clock Source
Click or tap the drop-down button of SCL to select the analog channel or digital
channel as the trigger source. The current trigger source is displayed in the trigger
information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
Edge Type
Selects "Rising" or "Falling" as the edge type of clock source.
Data Source
Click or tap the drop-down button of
SDA to select the analog channel or digital
channel as the trigger source. The current trigger source is displayed in the trigger
information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
99
