greater than the upper limit of the preset time. Click or tap input field of Upper
and Lower respectively to set the delay time upper limit and lower limit with the
pop-up numeric keypad. You can also use the specified knob to set them
respectively. The lower time limit must be smaller than the upper time limit.
Level Selection and Setting
After the trigger condition setting is completed, you need to adjust the trigger level
to correctly trigger the signal and obtain a stable waveform.
Click or tap the input field of
Level A and Level B respectively to set Level A and Level
B with the pop-up numeric keypad. You can also use the specified multifunction knob
to adjust level A and level B or use the trigger level knob to adjust the level (the focus
of the trigger level knob is the last modified level). For details, refer to descriptions in
Trigger Level
. The current trigger level is displayed in the trigger information label at
the top of the screen.

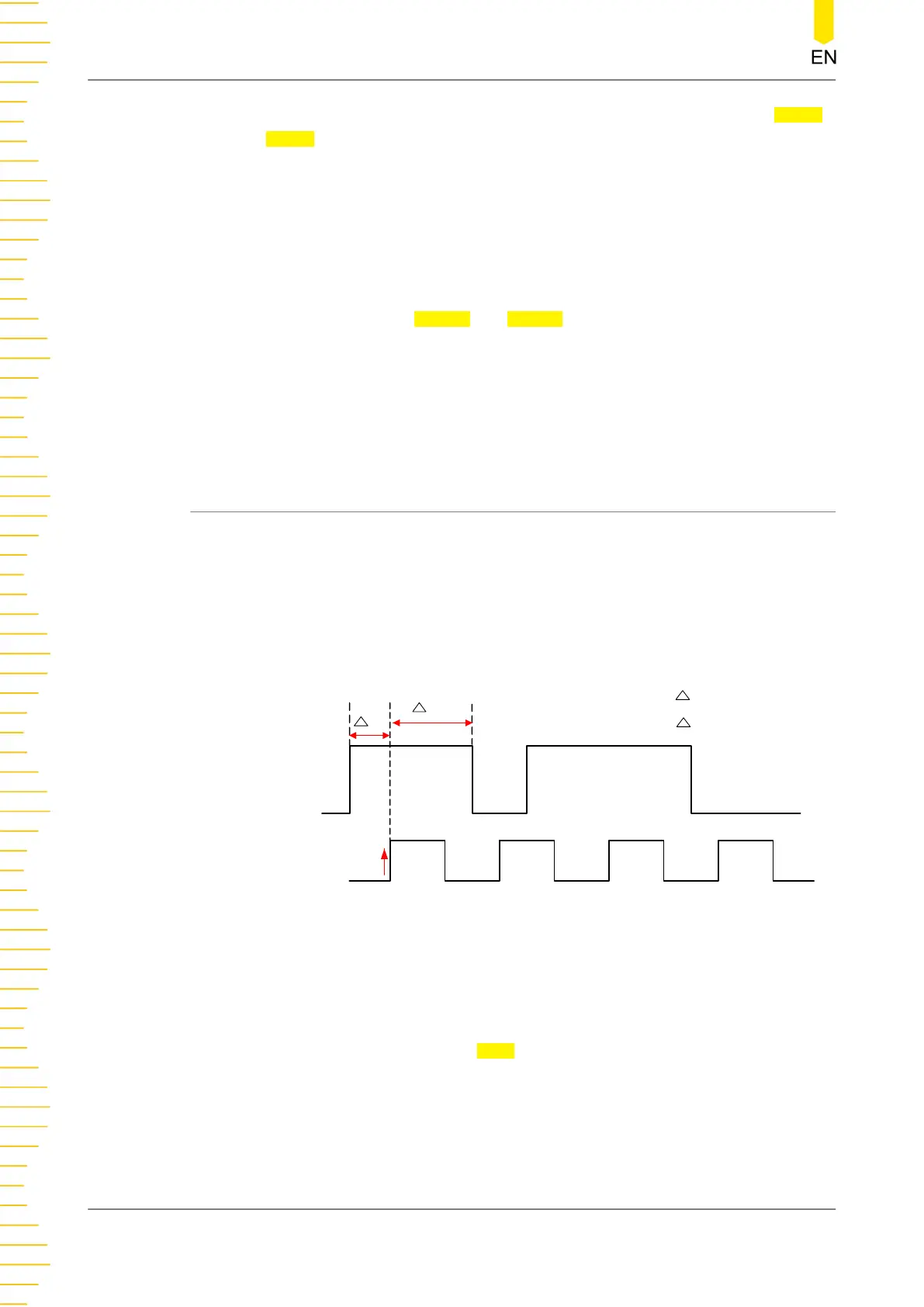

8.7.11 Setup/Hold Trigger
In setup&hold trigger, you need to set the clock source and data source. The setup
time starts when the data signal passes the trigger level and ends at the coming of
the specified clock edge; the hold time starts at the coming of the specified clock
edge and ends when the data signal crosses the trigger level again, as shown in the
figure below. The oscilloscope triggers when the setup time or hold time is smaller
than the preset time.
T1
T2
Data Source
Clock Source
T2 is the hold time
T1 is the setup time
Edge
The data type is H
Figure 8.20 Setup/Hold Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Setup/Hold" from the drop-
down list. Then set the parameters for Setup/Hold trigger.
To Trigger the Oscilloscope
MHO2000 User Guide
98
