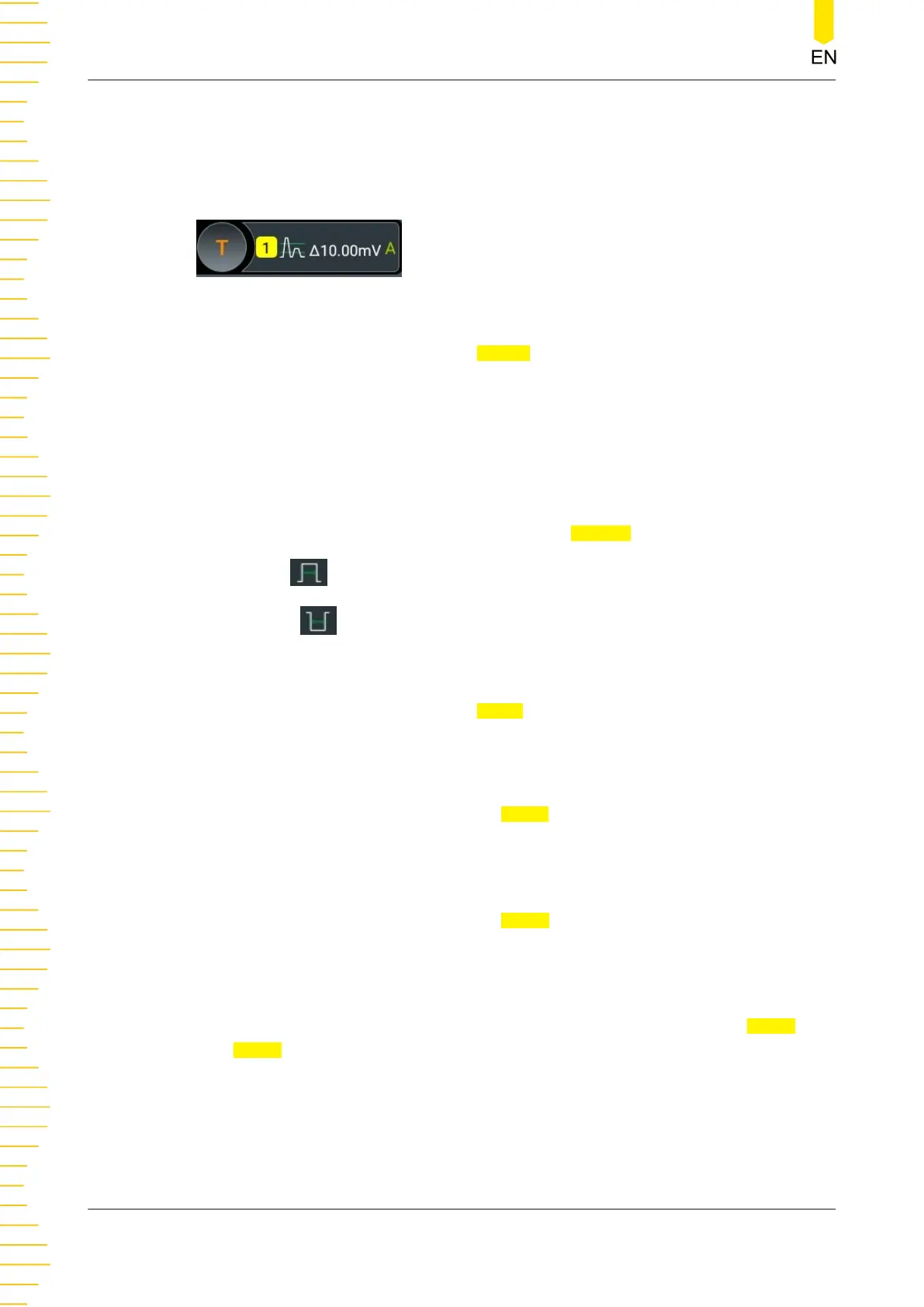

After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed at the top of the
screen, as shown in the figure below. The information will change based on the
trigger settings.
Source Selection
Click or tap the drop-down button of Source to select the desired analog channel
from the drop-down list. The current trigger source is displayed in the trigger
information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
Polarity
Select the pulse polarity of Runt trigger under the
Polarity item.
• Positive
: indicates that the instrument triggers on the positive runt pulse.
• Negative : triggers on the negative runt pulse.
Trigger Condition
Sets the Runt trigger condition in the When menu.
• None: indicates not setting the trigger condition of Runt trigger.
• >: triggers when the runt pulse width is greater than the lower limit of pulse
width. Click or tap the input field of
Lower to set the minimum pulse width of
Runt trigger with the pop-up numeric keypad. You can also use the specified
knob to set it.
• <: triggers when the runt pulse width is smaller than the upper limit of pulse
width. Click or tap the input field of
Upper to set the maximum pulse width of
Runt trigger with the pop-up numeric keypad. You can also use the specified
knob to set it.
• < >: triggers when the runt pulse width is greater than the lower limit and
smaller than the upper limit of pulse width. Click or tap input field of
Upper and
Lower respectively to set the maximum and minimum pulse width of Runt
trigger with the pop-up numeric keypad. You can also use the specified knob to
set them respectively. The lower limit of the pulse width must be smaller than
the upper limit.
To Trigger the Oscilloscope
MHO2000 User Guide
92
