Timeout Value
Timeout value represents the maximum time that the signal remains idle before the
signal passes through the trigger level. Click or tap the input field of Timeout to set
the timeout value with the pop-up numeric keypad. You can also use the specified
knob to set it.

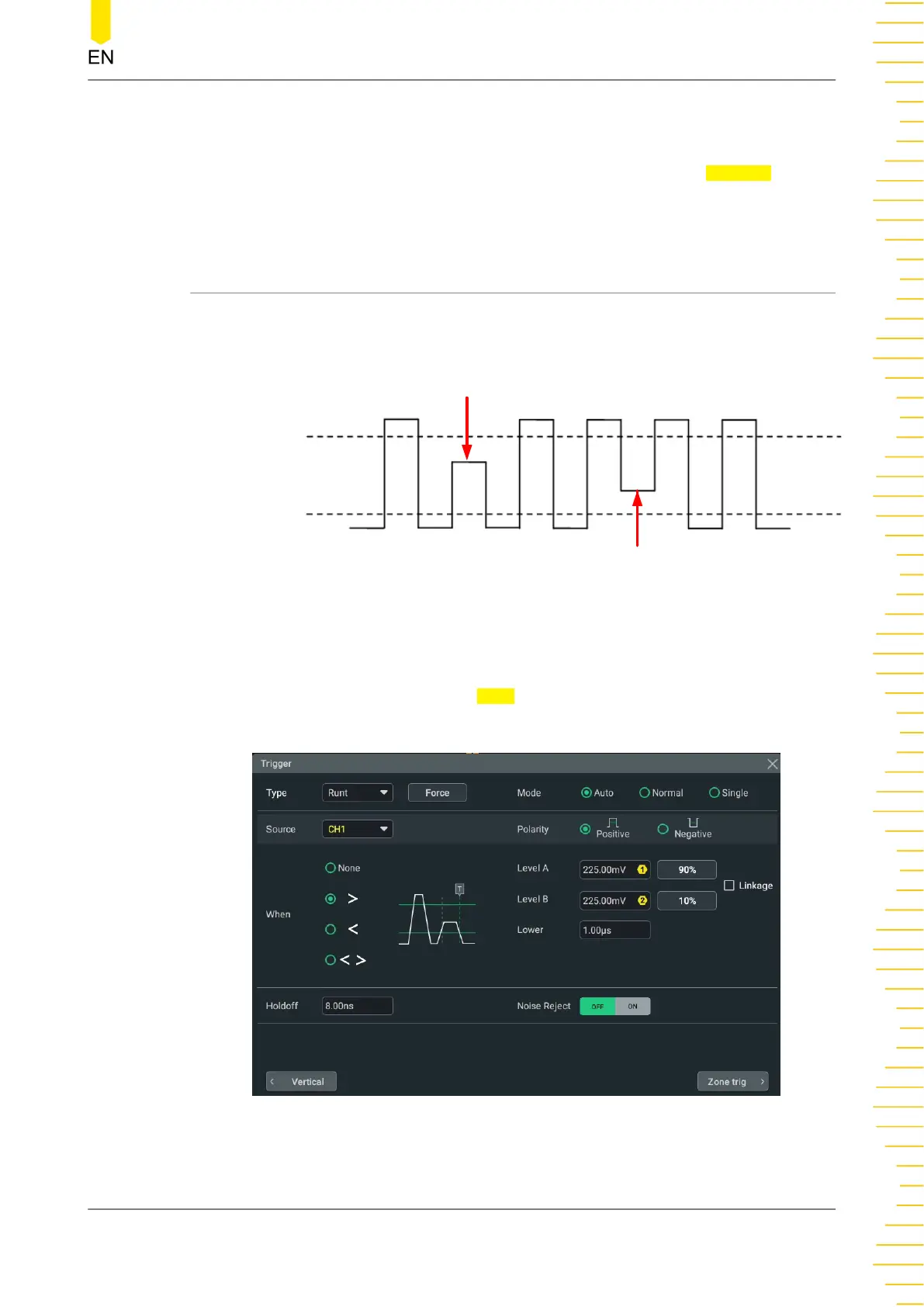

8.7.8 Runt Trigger
This trigger mode is used to trigger pulses that pass through one trigger level but fail
to pass through another trigger level, as shown in the figure below.
Lower Limit of the
Trigger Level
Upper Limit of the
Trigger Level
Negative Runt Pulse
Positive Runt Pulse
Figure 8.15 Runt Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Runt" from the drop-down list.
Then set the parameters for Runt trigger.
Figure 8.16 Runt Trigger Setting Menu
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
91
