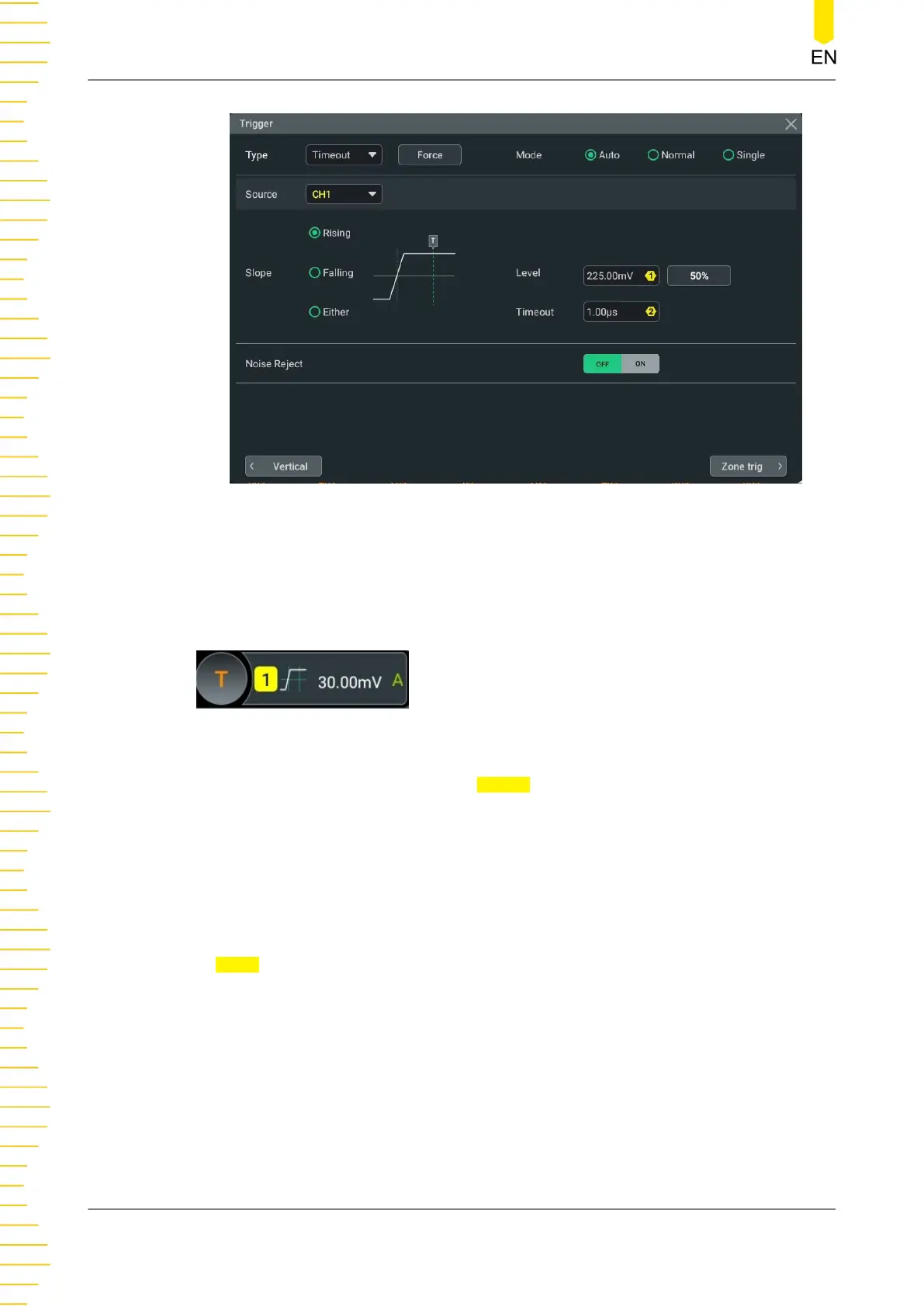

Figure 8.14 Timeout Trigger Menu
At this time, the current trigger setting information (including trigger type, trigger
source, and trigger level) is displayed at the top of the screen, as shown in the figure
below. The information will change based on the trigger settings.
Select the Source
Click or tap the drop-down button of Source to select the analog channel or digital
channel as the trigger source. The current trigger source is displayed in the trigger
information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
Edge Type
In
Slope item, select the edge type from which the input signal passes through the
trigger level.
• Rising: starts timing when the rising edge of the input signal passes through the
trigger level.
• Falling: starts timing when the falling edge of the input signal passes through
the trigger level.
• Either: starts timing when either edge of the input signal passes through the
trigger level.
To Trigger the Oscilloscope
MHO2000 User Guide
90
