and that of the lower limit is from 1 ns to 9.9 s. The lower time limit must be
smaller than the upper time limit.
• > <: triggers when the duration of the pattern is greater than the upper limit of
the preset time or smaller than the lower limit of the preset time. Click or tap the
input field of Upper and Lower to set the upper and lower limit of the duration
of the pattern with the pop-up numeric keypad. You can also use the specified
knob to set them. The range of the upper limit is from 1.01 ns to 10 s, and that
of the lower limit is from 1 ns to 9.9 s. The lower time limit must be smaller than
the upper time limit.
8.7.7 Timeout Trigger

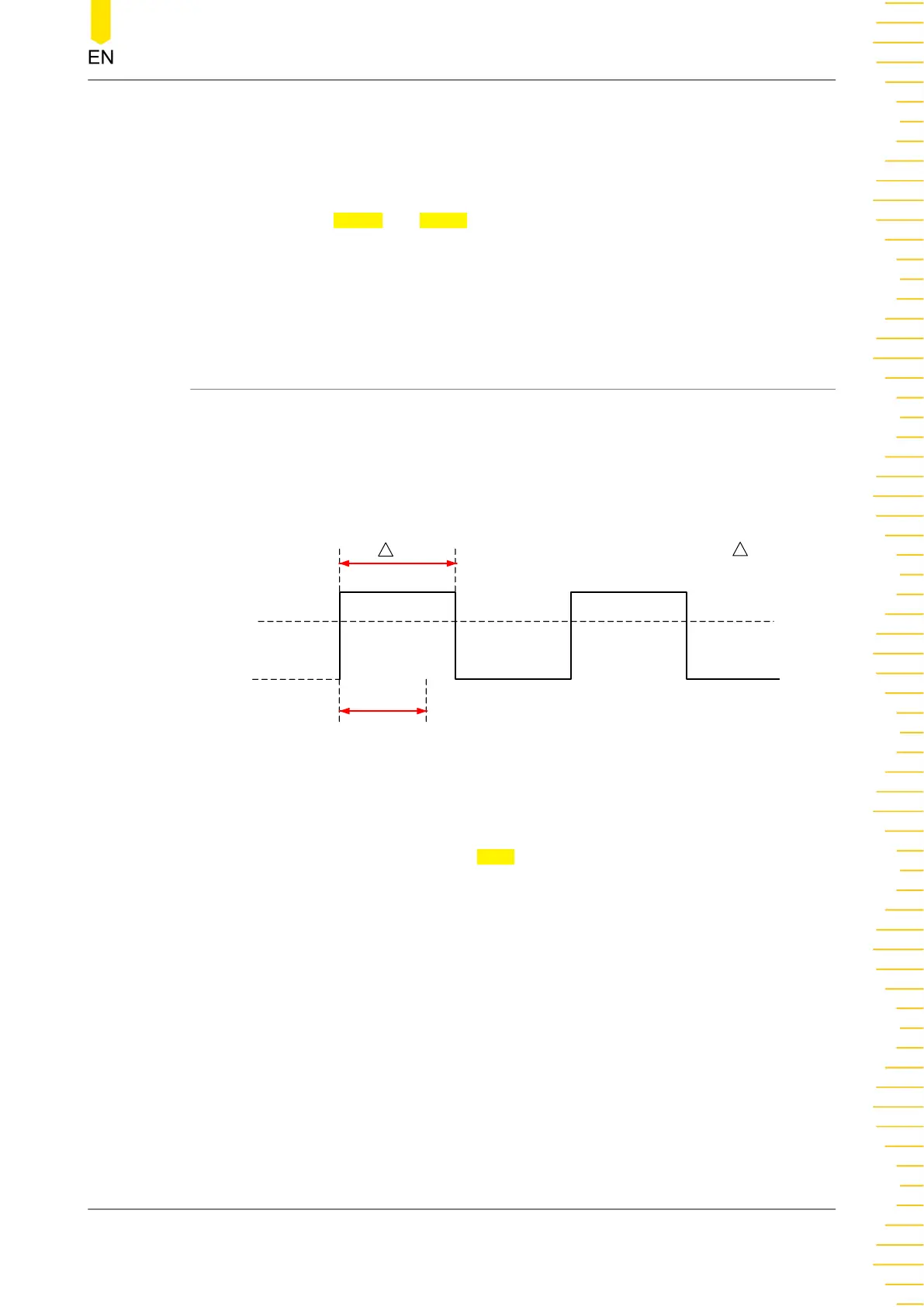

In Timeout trigger, the instrument triggers when the time interval (∆T) (the time from
when the rising edge (or falling edge) of the input signal passes through the trigger
level to the time from when the neighboring falling edge (or rising edge) passes
through the trigger level) is greater than the preset timeout value, as shown in the
figure below.
Time Out
T
Time Out
<
T
Figure 8.13 Timeout Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Timeout" from the drop-down
list. Then set the parameters for the Timeout trigger.
To Trigger the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. MHO2000 User Guide
89
