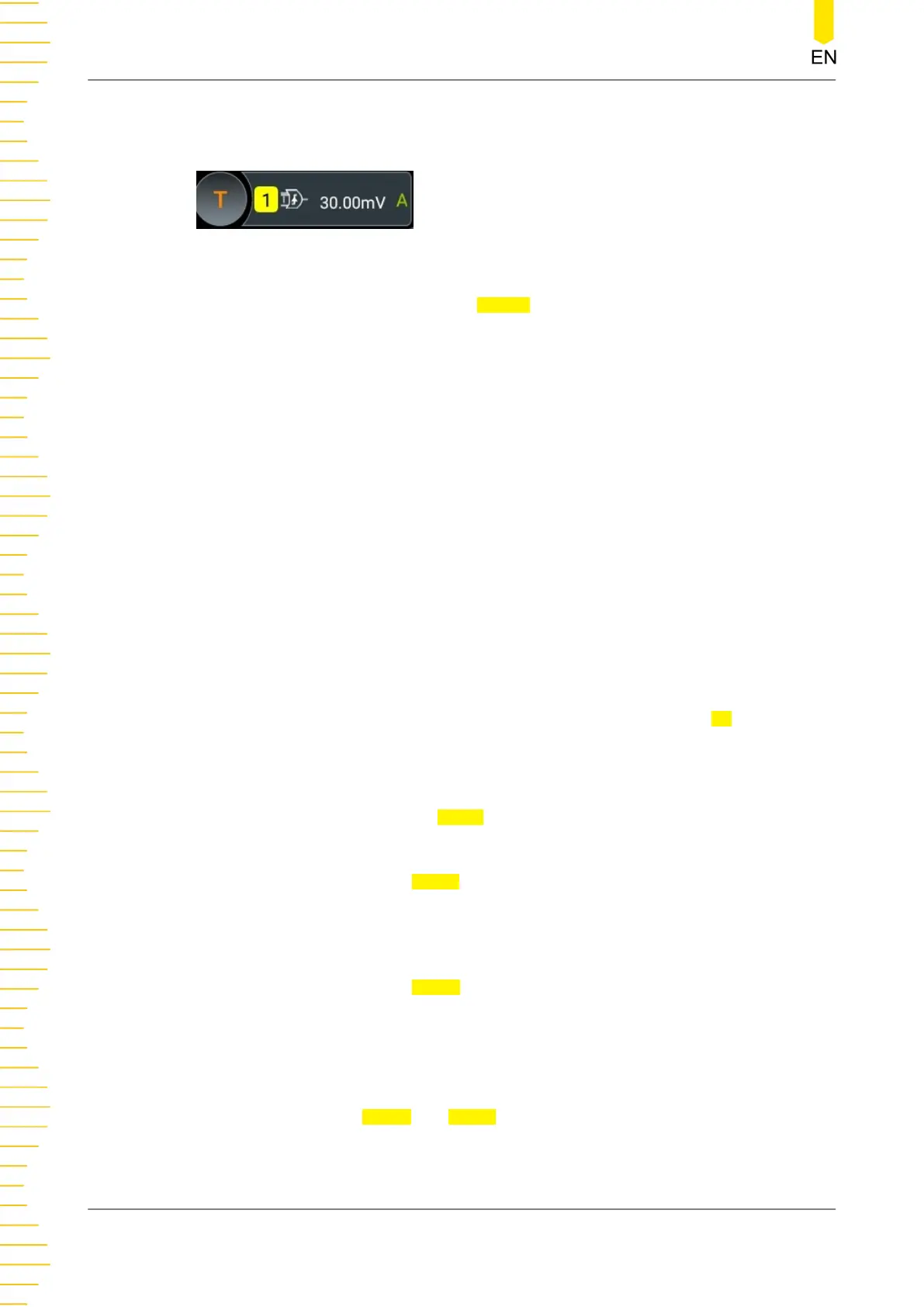

information label at the top of the screen, as shown in the figure below. The
information will change based on the trigger settings.
Select the Source
Click or tap the drop-down button of Source to select the analog channel or digital
channel as the trigger source. The current trigger source is displayed in the trigger
information label at the top of the screen.
Only when we select the channel (that has been input with signals) as the trigger
source, can we obtain a stable trigger.
Pattern Setting
The following three patterns are available:
• 1: sets the pattern of the channel selected to "1", i.e. the voltage level is higher
than the trigger level of the channel.
• 0: sets the pattern of the channel selected to "0", i.e. the voltage level is lower
than the trigger level of the channel.
• X: sets the pattern of the channel selected to "X", i.e. this channel is not used as a
part of the pattern. When all channels in the pattern are set to "X", the
oscilloscope will not trigger.
The Left/Right arrow key indicates moving left/right to switch the channel pattern.
"All" indicates all bits. Select a pattern for a channel, then click or tap
All. The patterns
of all the other channels will be set to the currently selected pattern.
Trigger Condition
Sets the trigger condition in the When menu.
• >: triggers when the duration of the pattern is greater than the preset time. Click
or tap the input field of
Lower to set the lower limit of the duration of the
pattern with the pop-up numeric keypad. You can also use the specified knob to
set it. The available range is from 1 ns to 10 s.
• <: triggers when the duration of the pattern is smaller than the preset time. Click
or tap the input field of
Upper to set the upper limit of the duration of the
pattern with the pop-up numeric keypad. You can also use the specified knob to
set it. The available range is from 1 ns to 10 s.
• < >: triggers when the duration of the pattern is smaller than the upper limit of
the preset time and greater than the lower limit of the preset time. Click or tap
the input field of
Upper and Lower to set the upper and lower limit of the
duration of the pattern with the pop-up numeric keypad. You can also use the
specified knob to set them. The range of the upper limit is from 1.01 ns to 10 s,
To Trigger the Oscilloscope
MHO2000 User Guide
88
