Trigger Level
. The current trigger level is displayed in the trigger information label at
the top of the screen.
TIP
Press down the trigger level knob and rotate it to adjust Level A, Level B, and Level AB (when
linkage is enabled) in sequence.
8.7.4 Video Trigger
The video signal can include image information and timing information, which adopts
different standards and formats. This series oscilloscope can trigger on the standard
video signal field or line of NTSC (National Television Standards Committee), PAL
(Phase Alternating Line), or SECAM (Sequential Couleur A Memoire).
Trigger Type
Click or tap the drop-down button of Type to select "Video" from the drop-down list.
Then set the parameters for Video trigger.

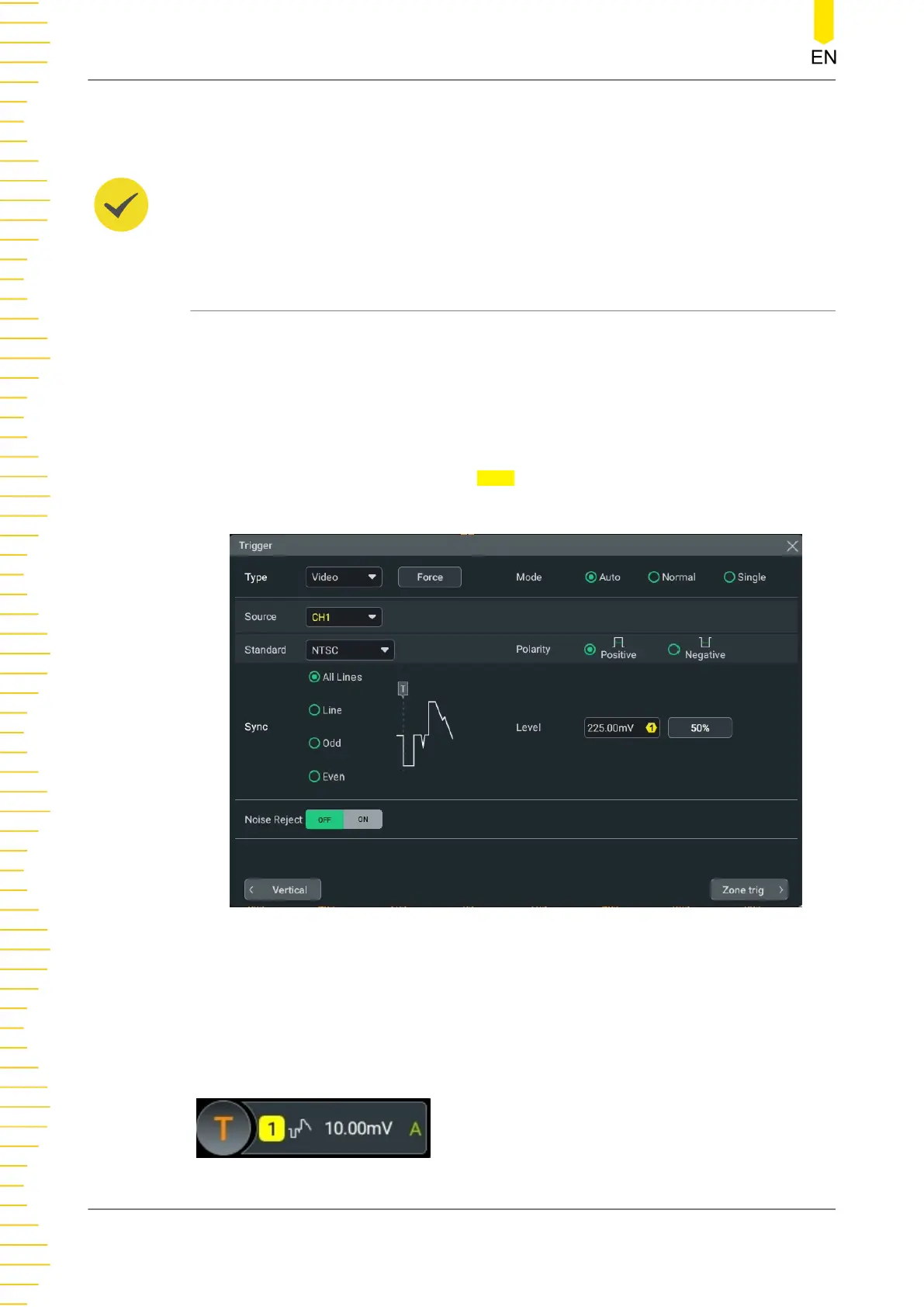

Figure 8.8 Video Trigger Setting Menu
After selecting the trigger type, and then the current trigger setting information
(including trigger type, trigger source, and trigger level) is displayed in the trigger
information label at the top of the screen, as shown in the figure below. The
information will change based on the trigger settings.
To Trigger the Oscilloscope
MHO2000 User Guide
82
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
