RIGOL
M300 Quick Guide
24

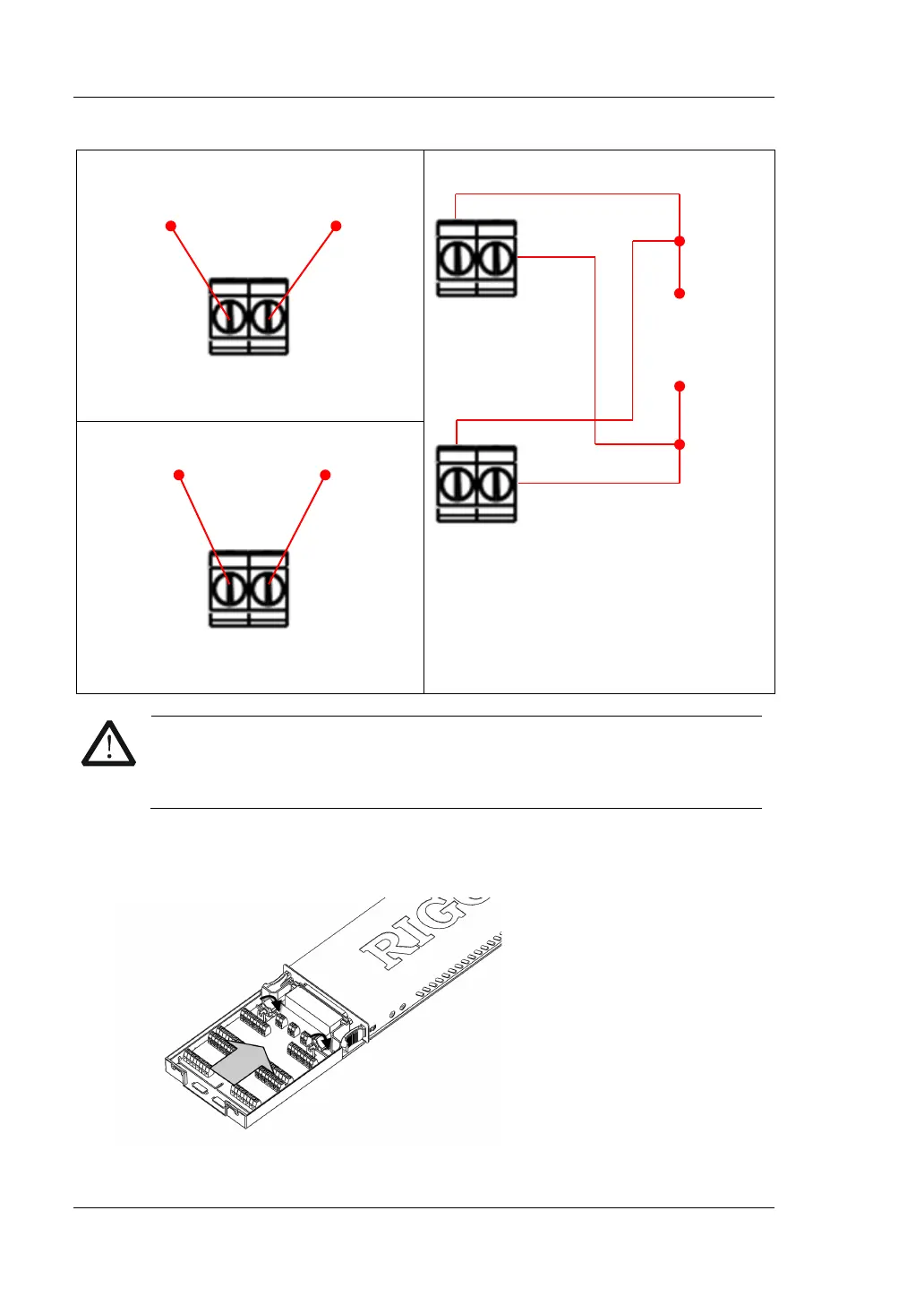

Table 2 Measurement Connections (Continued)
RTD/Thermistor
+ -
Resistance to be
measured
H L
CH1
4WR/RTD 4W
H L Source
CH1
H L Sense
CH17
Note: Available for CH1 to CH32 of MC3132.
Thermocouple
+ -
Thermocouple
to be measured
H L
CH1
WARNING
To avoid electric shock, the measurement cables should meet the
maximum voltage requirement. To avoid damaging the module, make
sure that all the input signals are within the rated input range.
3 Connect the terminal block to interface 1 (the interface definition is in Figure 6)
on the module, screw down the two screw rods to fix them onto the nuts on the
module.
4 Close the upper cover of the terminal block.
Resistance to be
measured
+
+
-
-
