RIGOL
M300 Quick Guide
4
In all-channel monitor function, you can monitor all the
channels in the scan list.

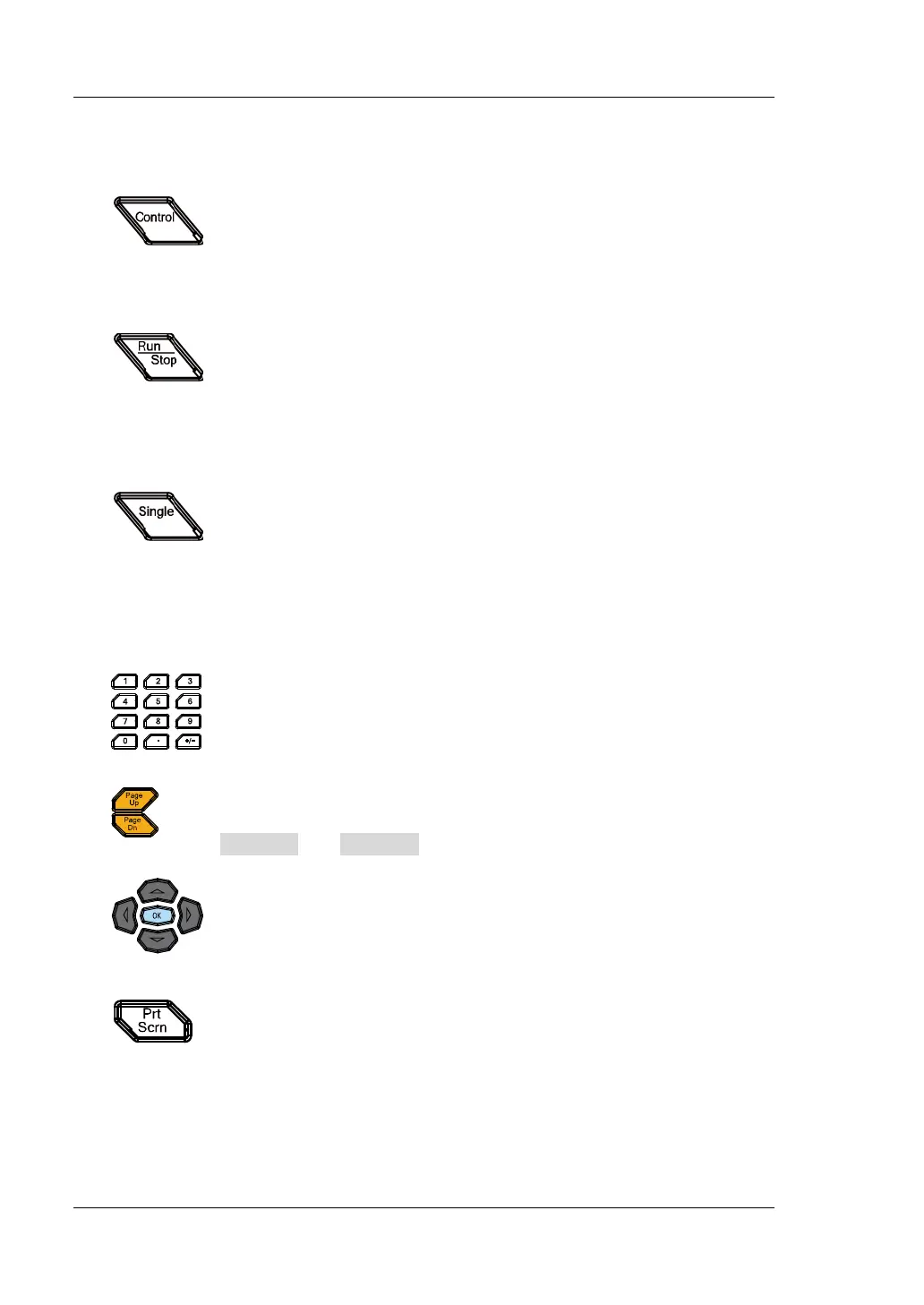

Control the modules currently inserted.
Control the status of each channel of the modules.
Initialize the modules.
Configure the channels of the multifunction module.
Cannot control the DMM module.
Auto Trigger/Stop
Press this key, the instrument triggers or enters the wait-for-trigger
state and the backlight of the key goes on. At this point, press and
hold this key; the instrument stops triggering or exits the
wait-for-trigger state and the backlight of the key goes off.
Note: This key is invalid when the scan list is empty.
Single-channel Switch
When the instrument is in the single-channel monitor interface,
pressing this key can switch the channel monitored to the next
channel in the scan list; when the instrument is in other interfaces,
pressing this key can switch the instrument to the single-channel
monitor interface.
3 Control Keys
Numeric Keyboard
Include numbers (0-9), decimal point (.), as well as
positive/negative sign (+/-).
Used to input parameter value, date and time.
Open the previous or next page of the current interface.
Note: These keys are different from the menu page up/down keys
(Page Up and Page Dn).
Arrow keys and confirmation key.
4 System Keys
If a USB storage device is currently connected to the instrument,
pressing this key will store the current content on the screen in the
USB storage device in *.bmp format.
Note: Only the FAT32 format flash memory USB storage device is
supported.
