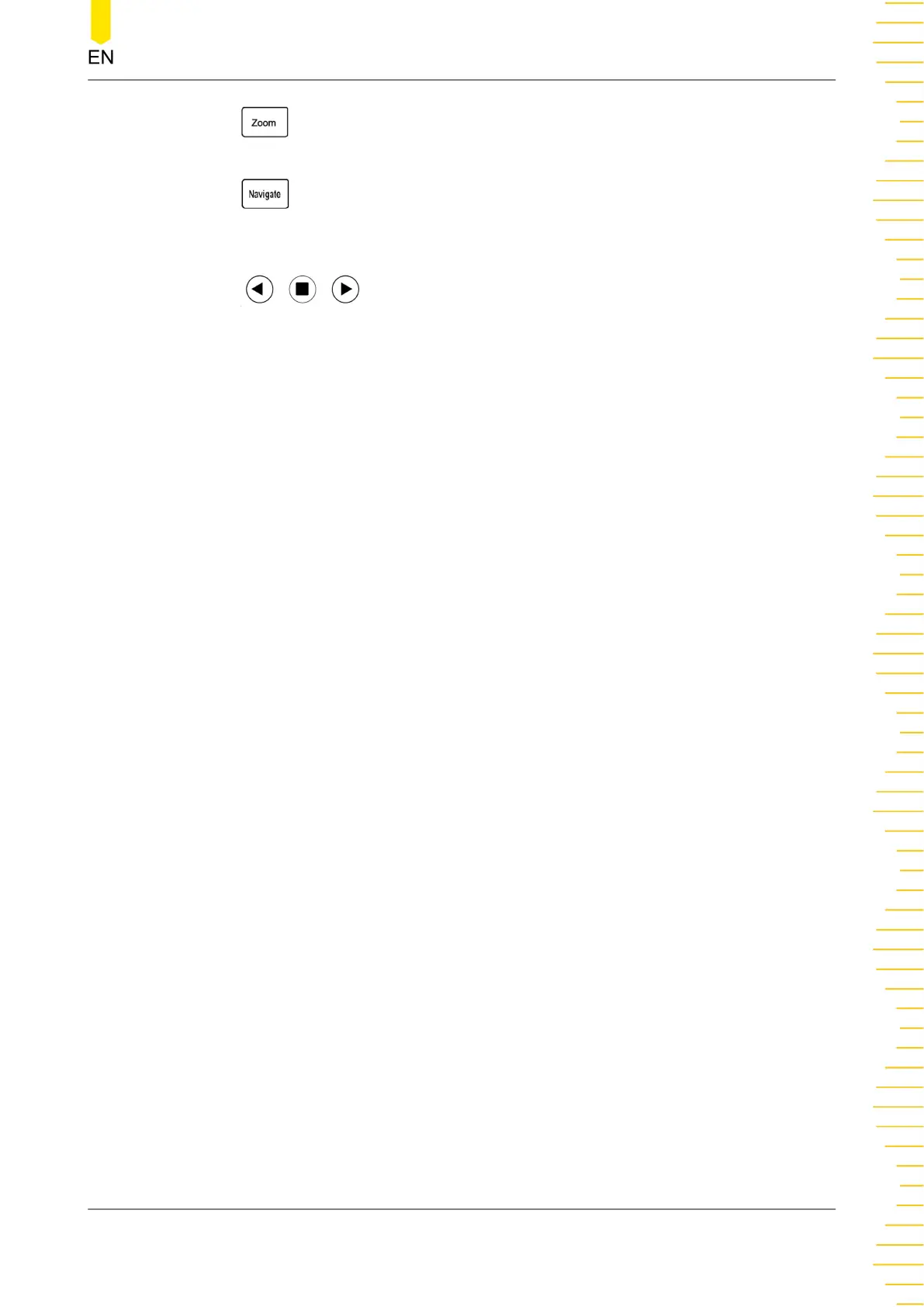

- is the Zoom (delayed sweep) key. Press this key to enable or disable the
Zoom mode.
- is the Navigate key. Press this key to access the Navigation menu. You
can navigate time, search events, or segments. For details, please refer to
Navigation
.
- are the navigation keys.
12. Probe Compensation Signal Output Terminal/Ground Terminal
This terminal outputs the probe compensation signal which helps you match a
probe's input capacitance to the oscilloscope channel to which it is connected. For
details, please refer to
Probe Compensation
.
13. Analog Channel Input Terminals
Attach probes to these connectors for analog signal inputs.
For two-channel models (DHO1072/DHO1102/DHO1202), only two input terminals
are available.
14. USB HOST Port
This series supports the flash memory USB storage device of FAT32 format and
USB-GPIB module.
- USB storage device: imports or exports data (software update, waveform,
setup, or captured image).
- USB-GPIB module: extends the GPIB interface for RIGOL instruments that
integrates the USB HOST interface but not the GPIB interface.
15. Power Switch
Press the switch to power on/off the oscilloscope.
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
23
