4.3.8 Probe Compensation
When used for the first time, the oscilloscope probe must be compensated to match
the input characteristics of the oscilloscope channel to which it is connected. A non-
compensated or poorly compensated probes can introduce measurement inaccuracy
or errors. The compensation procedure is as follows:
1. Perform step 1, 2, 3, and 4 in
Function Inspection
.
2. Check the displayed waveforms and compare them with waveforms shown in the
figure below.

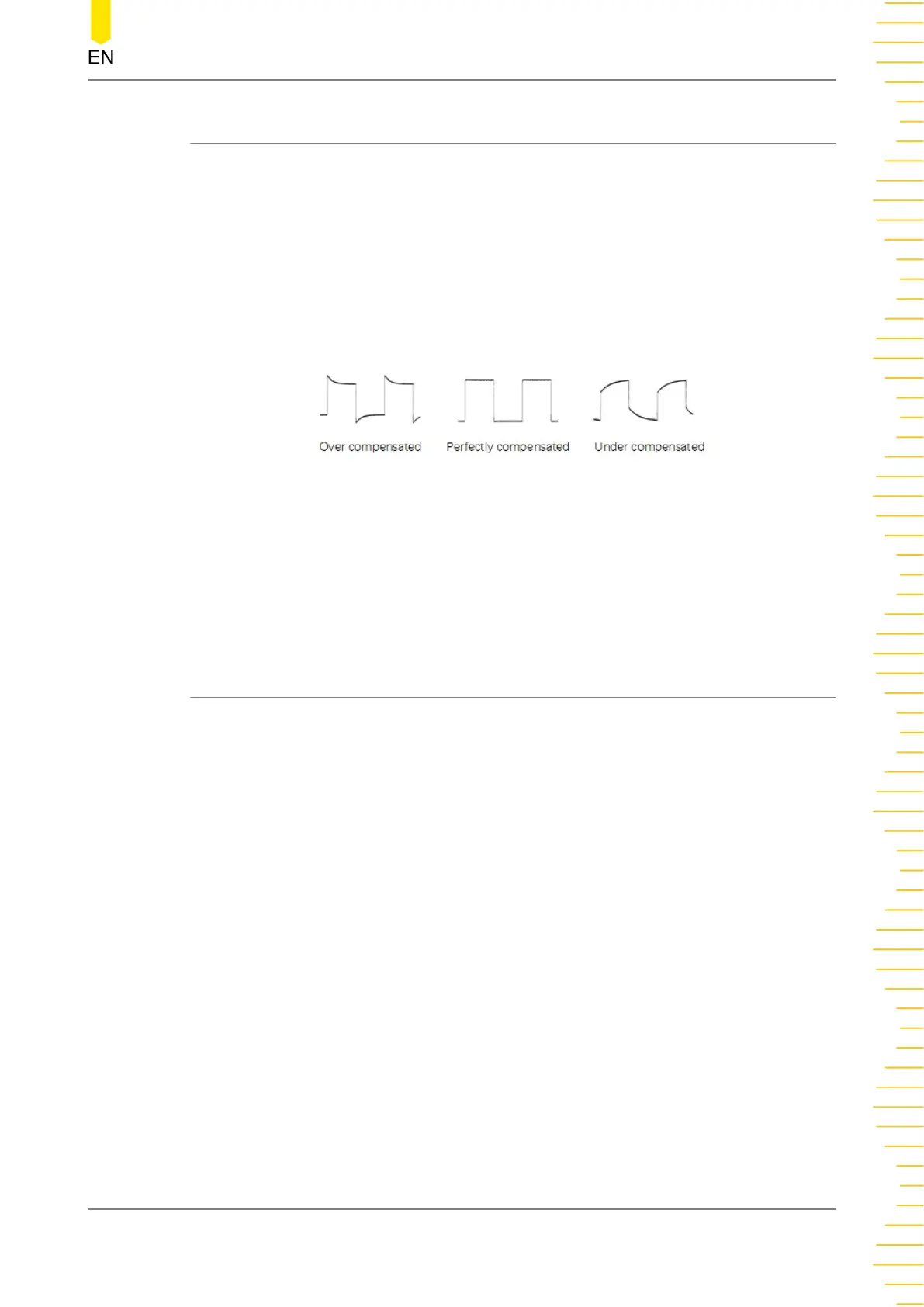

Figure 4.9 Probe Compensation
3. Use the probe compensation adjustment tool provided in the accessories to adjust
the low-frequency compensation adjustment hole on the probe until the displayed
waveform is consistent with the "Perfectly compensated" waveform shown in the
figure above.
4.4 Product Overview
The following content provides a description of the front and rear panels as well as
the user interface of the DHO1000 series by taking 4-channel model DHO1104 as an
example.
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
17
