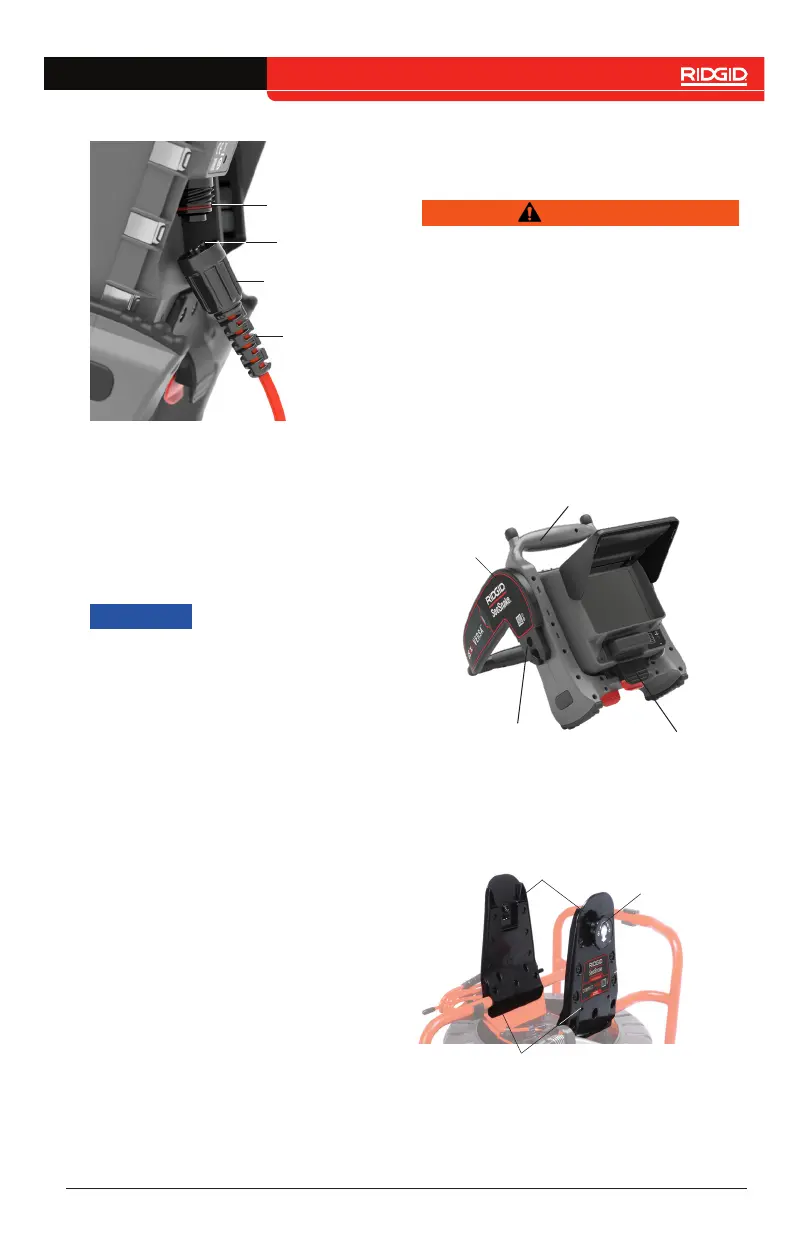

Compact M40 DSL / Compact M40 – English – 11

Retrieving the Camera

Pull the push cable back out of the pipe with

slow, steady force and feed small lengths

back into the drum� Wipe the push cable

with a paper towel or rag as you retrieve it�

NOTICE

Do not exert excessive

force or pull at sharp an-

gles. Feeding longer

lengths or forcing the

push cable may cause it

to loop, kink, or break.

Pipe Guides

Pipe guides center the camera in the pipe,

improve picture quality, and help keep the

lens clear� Use pipe guides when possible

to reduce wear and tear on the camera sys-

tem�

CS6x Versa Docking

System

WARNING

Do not carry the Compact M40 by the

monitor’s mounting frame or kickstand.

Doing so can cause the monitor to disen-

gage from the docking system and may

result in property damage and/or serious

injury.

Mounting the Monitor

1� Turn the docking joints on sides of the

kickstand so that the openings point

down�

Docking Joint

Mounting Frame

Mounting Clips

2� Center the CS6x Versa over the dock-

ing fins and align the docking joints

with the joint sockets�

Joint Sockets

Quick Release

Knob

Docking Fins

3� Firmly push the monitor down into the

docking system until you feel the mon-

itor lock into place�

Socket

Guide Pin

Connector

Ridge

Outer Locking

Sleeve

Kickstand
