999-998-676.10_REV. C 5
918-I Heavy Duty Roll Grooving Machine
careful evaluation of the specific service environment,
including chemical environment and service tempera-
ture, should be completed.
Specifications
Roll Grooving Capacity
(See Table II for wall thickness)
•1"to 12" Schedule 10
•1"to 8" Schedule 40
•2"– 6" Copper Types K, L, M, DWV
• 2" – 8" Schedule 40 PVC
Do not use to groove 8" Schedule 40 steel
pipe harder than 150 BHN. Doing so may result in im-
properly formed grooves that do not meet required
specifications.
Depth Adjustment .......Indexed Adjustment Knob
Actuation......................Hydraulic Hand Pump
Motor
Type ............................Universal
Volts (V).......................120 220-240 100
Frequency (Hz)............50/60 50/60 50/60
Current (A)...................12.0 6.0 12.0
Power (W) ...................1400 1400 1200
Controls........................Rotary Type ON/OFF Switch
and ON/OFF Foot switch
Weight ..........................185 lbs. (84.1 kg)
Operating Speed..........45 RPM (no load)
Sound Pressure (L
PA
)* ......92.9 dB(A), K=3
Sound Power (L
WA
)*...........105.7 dB(A), K=3
* Sound measurements are measured in accordance with a standardized test per
Standard EN 62841-1.
- Sound emissions may vary due to your location and specific use of these tools.
- Daily exposure levels for sound need to be evaluated for each application
and appropriate safety measures taken when needed. Evaluation of expo-
sure levels should consider the time a tool is switched off and not in use. This
may significantly reduce the exposure level over the total working period.
Refer to your machine serial number plate for information
specific to your machine.
Standard Equipment
918-I Roll Groover Only
• 918-I Groover with 2" – 6" Drive Shaft and Groove
Set
• 8" – 12" Drive Shaft and Groove Set
• Carrying Case for Drive Shaft and Groove Set
•
1
/
8
" T-Handle Hex Wrench (groove roll changeout)
•
3
/
16
" Hex Wrench (transmission coupling)
•
5
/
32
" Hex Wrench (transmission cover)
• Spanner Wrench (Drive shaft changeout)
• Nipple Bracket/Pipe Stabilizer
A pipe stabilizer is available as an accessory to aid in the
grooving of short lengths of pipe.
918-I Roll Groover Models
Accessories
• Groove and drive roll set for 1
1
/
4
" – 1
1
/
2
" Schedule 10
and Schedule 40. (set includes drive shaft, groove roll
and carrying case.)
• Groove and drive roll set for 1" Schedule 10 and
Schedule 40, groove and drive roll for 1
1
/
4
" – 1
1
/
2
"
Schedule 10, 40. (Set includes groove rolls, drive
shaft, and carrying case.)
NOTE! Drive shaft change-out is necessary for roll groov-
ing below 2".
• Groove Roll and Drive Roll Set for Copper 2" – 6"
(Types K, L, M and DWV)
• VJ-99 Pipe Stand

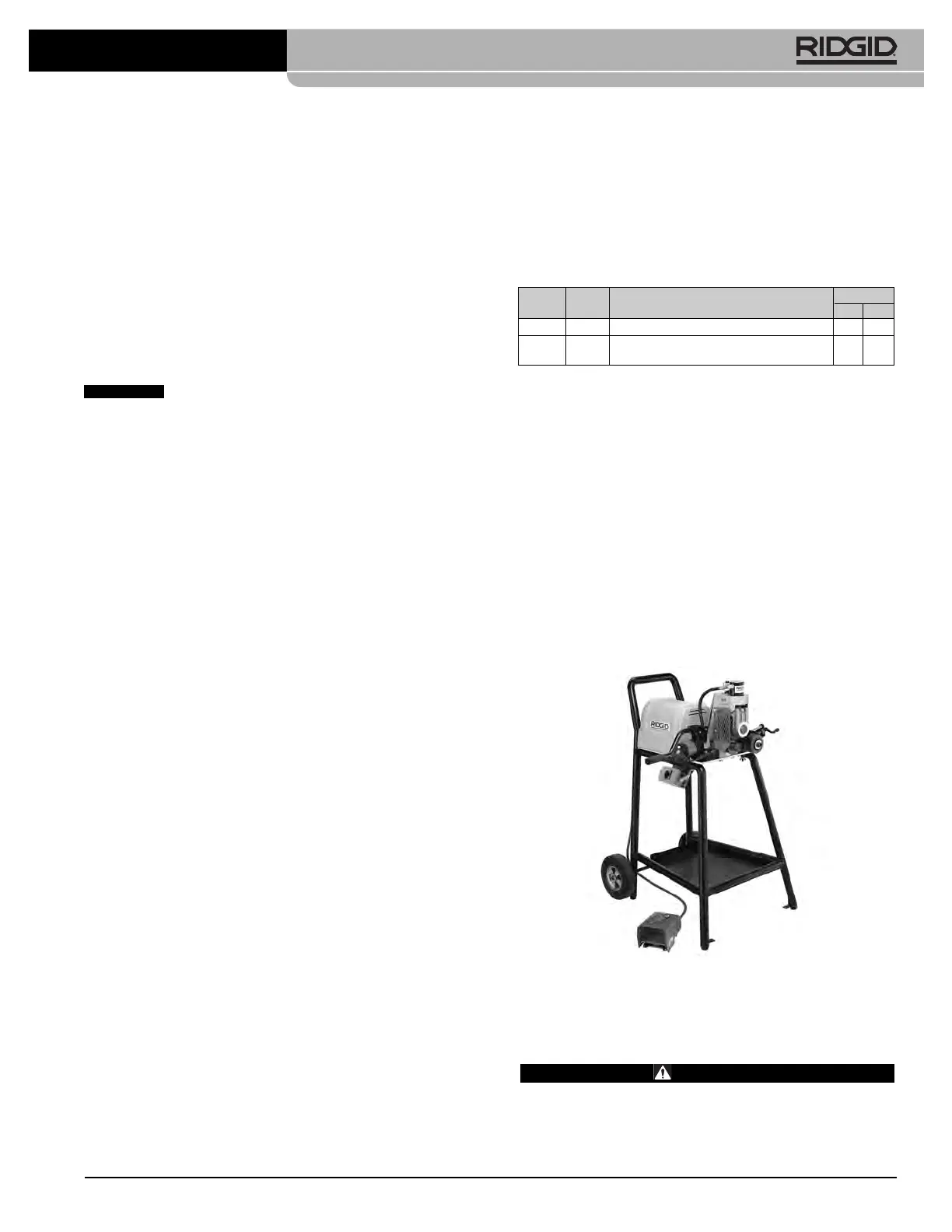

Figure 2 – 918-I Roll Groover
Roll Groover Assembly
Instructions
WARNING
To prevent serious injury, proper assembly of the
Roll Groover is required. The following procedures
should be followed:
CAUTION
Catalog Model Weight
No. No. Description
lb. kg.
64977 918-I Roll Grooving Machine Complete, 115V 185 84,1
65902 918-I Roll Grooving Machine Complete, 230V 185 84,1
(Export Only)
